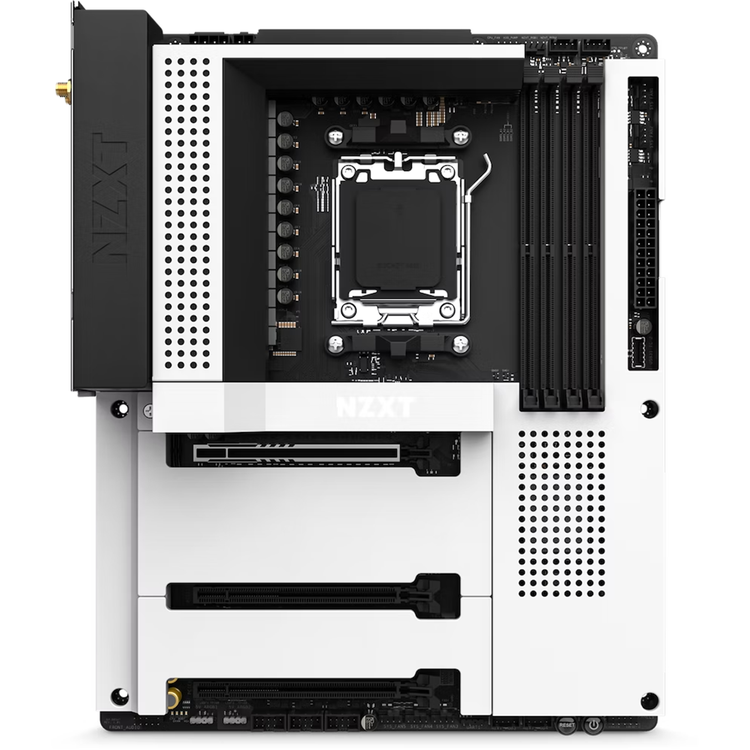

NZXT B650E White Motherboard For AMD Ryzen 7000/8000 Series CPUs, AM5, ATX Form Factor
N7 B650E
AMD Motherboard with Wi-Fi and NZXT CAM Features
Leverage the full value of your AMD Ryzen 7000 series CPU with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.
Maximum Control
Easily customize lighting and cooling modes via NZXT CAM, with access to six RGB lighting channels. Configure lights and fans from any manufacturer.
Finishing Touch
A white or black metal cover conceals the inner workings, blending seamlessly with your case. The heat fins have been expanded to cool the PCIe Gen 5 enabled NVMe drive slot.
Ready To Rock
Integrated Wi-Fi 6E, rear I/O shield, and clever port placement makes the build process easy—plenty of room on board for upgrades down the line.
Stunning Craftsmanship
Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your components.
CPU and Socket
Supports AMD Ryzen 7000 Series Processors.
- 16+2+1 Power phase design with 90A Smart Power Stage
- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels
CPU
AMD Socket AM5 Ryzen™ 7000 Series Processors
Supported
CHIPSET
AMD
B650
MEMORY
DIMM Slots
4, DDR5 only
Max Memory Support
128GB
Memory Architecture
Dual-Channel
OC Frequency
DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information.
Extreme Memory Profile (XMP)
Supported
EXTended Profiles for Overclocking (EXPO)
Supported
EXPANSION SLOTS
PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode
1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode
2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module
1
INTEGRATED GRAPHICS
Integrated AMD RDNA™ 2 graphics
Supported
HDMI 2.1 TMD Compatible
1
HDR
Supported
HDCP 2.3
max. resolution up to 4K 60Hz
STORAGE
M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode)
1
M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode)
1
M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode)
1
SATA 6Gb/s ports
4
RAID 0/1/10 for SATA storage devices
Supported
RAID 0/1/10 for M.2 NVMe storage devices
Supported
NVMe SSD as boot disks
Supported
LAN
Realtek®
RTL8125BG 2.5G LAN
WIRELESS
802.11ax Wi-Fi 6E Module
Supported
Bluetooth
V5.2
AUDIO
Realtek®
ALC1220 Codec
REAR I/O
Wireless antenna SMA connectors
2
HDMI™ port
1
USB 2.0
2
USB 3.2 Gen 2 Type-C port
1
USB 3.2 Gen 2 ports
2
USB 3.2 Gen 1 ports
4
Clear CMOS button
1
BIOS Flashback button
1
LAN (RJ45) port
1
Audio jacks
5
Optical S/PDIF Out port
1
INTERNAL I/O
24-pin ATX power connector
1
8+4-pin ATX 12V power connector
1
4-pin CPU_FAN connector
1
4-pin AIO_PUMP connector
1
4-pin SYS_FAN connectors
5
NZXT RGB LED connectors
4
5V ARGB LED connector
2
USB 2.0 header (Up to 6 USB 2.0 ports)
3
USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports)
2
USB 3.2 Gen2x2 front panel header (For USB Type-C)
1
Front panel audio connector
1
Power button
1
Reset button
1
POST LEDs
4
GENERAL
System Requirements
NZXT CAM software requires Microsoft Windows® 11/10 operating system.
Form Factor
ATX
Certifications
FCC, CE, WHQL, ErP/EuP Ready
