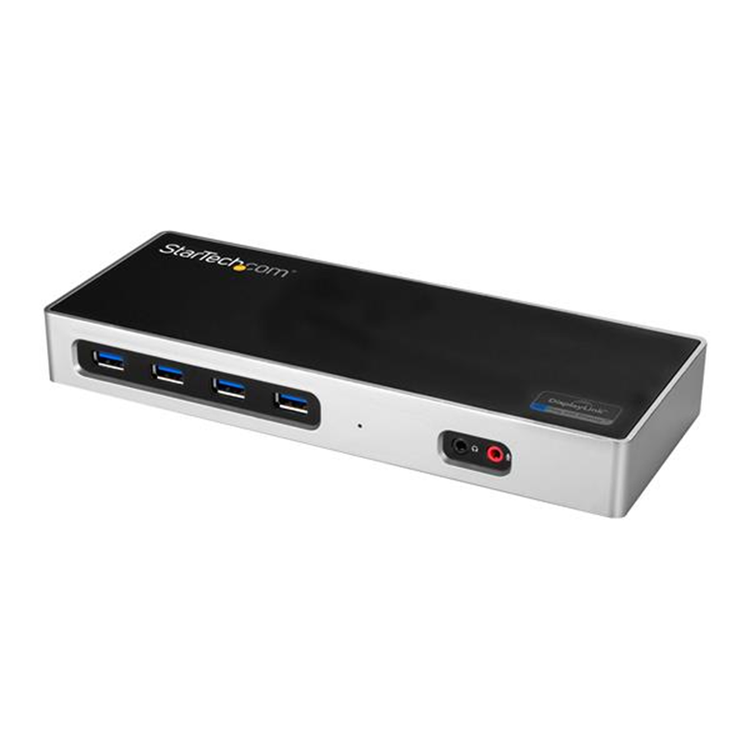

StarTech.com DK30A2DH USB-C & USB3.0 DP x2, HDMI x2, USB-C x1, Dual 4K Mobile Dock,
This dual-4K USB 3.0 docking station is the next generation in USB universal docking stations, working with both USB-C and USB-A port equipped laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors. It's Mac and Windows® compatible, making it the ideal accessory for your MacBook Pro, Dell XPS or other laptop.
Enhance productivity with a dual-4K video workstation
This dual-4K docking station helps improve your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors -- even if your laptop doesn't natively support 4K output. The docking station supports 4K low latency, high-resolution graphics on both video ports, using any combination of HDMI® or DisplayPort monitors.
With the dual-4K dock, you can connect:
2x 4K DisplayPort displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz
2x 4K HDMI displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz
1x 4K DisplayPort + 4K HDMI displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz
The docking station is ideal for producers, graphic and web designers, engineers, architects and many other professionals who work on advanced graphics applications. It offers a fast and easy way to maximize your laptop's workable screen space, giving you three screens in total when coupled with your laptop's display.
The truly universal docking station
Compatible with both Windows and MacBook computers, this universal laptop dock supports DisplayLink® technology and works with USB-C and USB-A enabled laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops. DisplayLink graphics technology works across computing platforms and connector types to provide a universal multi-display docking solution. The USB-C connector works seamlessly with DisplayLink to support high-resolution monitors, enabling two full 4Kp60 displays from a single USB connection. With its universal interface, the docking station can enable a single desktop setup to support different users at different times, no matter what type of computer or device is being used. The universal docking station allows one docking station to be used throughout the organization, for use with the latest Ultrabook™ and MacBook laptops, and Windows Pro tablets as well as older devices. Providing both full backward compatibility and future proofing, it is the ultimate docking station solution for offices with mixed laptop deployment.
All the connections you need
This USB 3.0 docking station lets you connect the peripherals you need, to transform your laptop into a powerful, fully capable workstation. With six USB 3.0 ports (USB Type-A), a Gigabit Ethernet port, plus separate 3.5 mm audio and microphone ports for multiple audio, you have all the connections you need to maximize performance. To add laptop charging support for USB-C-equipped laptops, simply add the StarTech.com HB30C1A1CPD USB to USB-C adapter to extend this dock's versatility.
Hardware
4K Support
Yes
Bus Type
USB-C
USB 3.0
Chipset ID
DisplayLink - DL-6950
VIA/VLI - VL813
Displays Supported
2
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0/1.1
Performance
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
Single display - DisplayPort - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Single Display - HDMI - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Dual displays - DisplayPort and HDMI - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Connector
Connector Type(s)
2 - DisplayPort (20 pin) Female
2 - HDMI (19 pin) Female
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
1 - RJ-45 Female
6 - USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Female
1 - 3.5 mm Mini-Jack (3 Position) Female
1 - 3.5 mm Mini-Jack (4 Position) Female
Software
OS Compatibility
Windows® 7, 8, 8.1, 10
macOS 10.11 - 10.12, 10.14
Special notes / Requirements
Note
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
A USB-C to USB-C cable and a USB-C to USB-A cable are included.
4K resolution is supported on both video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolution
System and Cable Requirements
A host laptop with an available USB-C port or a USB-A port.
Indicators
LED Indicators
1 - Power
Power
Center Tip Polarity
Positive
Input Current
1 A
Input Voltage
100 - 240 AC
Output Current
2 A
Output Voltage
20V DC
Plug Type
N
Power Consumption (In Watts)
40W
Power Source
AC Adapter Included
Enviromental
Humidity
10~90% RH
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Physical characteristics
Cable Length
3.3 ft [1 m]
Color
Black & Silver
Enclosure Type
Aluminum and Plastic
Product Height
1.1 in [2.8 cm]
Product Length
8.9 in [22.6 cm]
Product Width
3.4 in [87 mm]
Weight of Product
10.6 oz [301 g]
