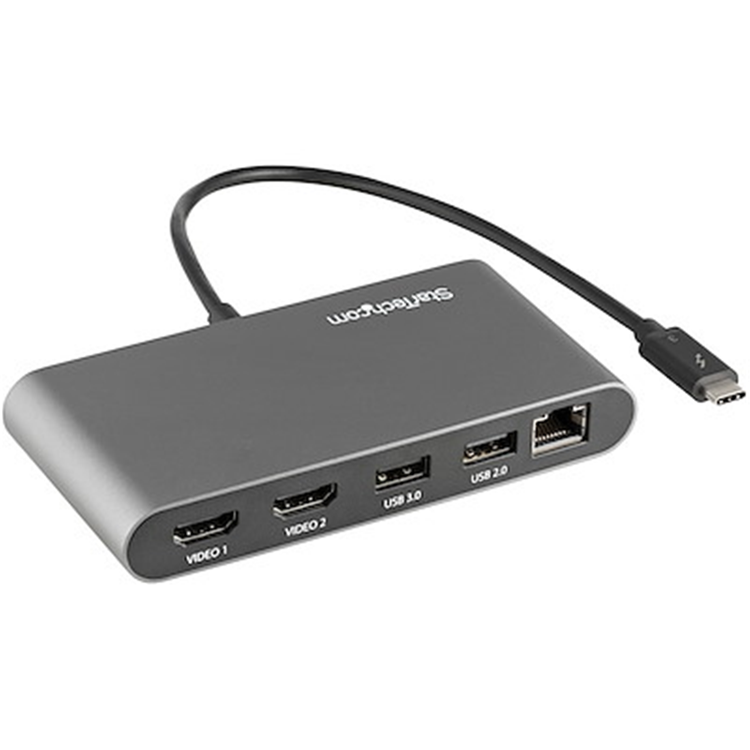

StarTech.com TB3DKM2HDL Thunderbolt 3 Mini Dock - Portable Dual
REPLACEMENT FOR TB3DKM2HD
New version offers same functionality as TB3DKM2HD, with addition of extra-long 11" (28cm) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands
THUNDERBOLT 3 CERTIFIED MINI DOCK
40 Gbps video & data throughput, dual monitor 4K 60Hz HDMI output, 2-Port USB-A Hub (1x USB 3.1 Gen 1 5Gbps & 1x USB 2.0) & Gigabit Ethernet port w/ PXE boot and WoL
COMPACT SIZE
This bus-powered, portable thunderbolt 3 mini dock is designed for shared and small workspaces; Use this Thunderbolt 3 multiport adapter for work from home or on-the-go/travel use
BROAD LAPTOP COMPATIBILITY
No drivers; TB3 dock works w/ MacBook Pro 13, 16 and Air (extended dual displays on MacBook Pro/Air w/ Intel processor & single display w/ Apple M1 Chip), Windows-based TB3 laptops like Dell XPS, HP EliteBook, Lenovo X1 Carbon
FOR HIGH POWERED LAPTOPS
For users who need to use their laptop power adapter as they require 100W or more to keep their laptop charged; but still want Thunderbolt 3 dock performance & functionality
This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).
Create a Dual-4K 60Hz Workstation
Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to HDMI dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.
Connect your laptop to: 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Compact Size & 11-Inch Attached Host Cable
At just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.
The Ports You Need Most
- 1x USB 3.2 Gen 1 Type-A port (5Gbps)
- 1x USB 2.0 Type-A port
- 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)
Ideal for Power-Demanding Workstation Setups
As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.
This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.
Environmental
Operating Temperature
5°C to 40°C
Storage Temperature
-20°C to 70°C
Humidity
0% to 95% (non-condensing) at 25°C
Hardware
Displays Supported
2
Fast-Charge Port(s)
No
4K Support
Yes
Industry Standards
1Gb connectivity to any 1000Base-T device (IEEE802.3ab Compliant)
100Mb connectivity to any 100Base-TX device (IEEE802.3u Compliant)
10Mb connectivity to any 10Base-T device (IEEE802.3i Compliant)
Audio
No
Interface
Thunderbolt 3
Bus Type
Thunderbolt 3
Chipset ID
Intel JHL6540 (Alpine Ridge)
Texas Instruments TPS65983A
Parade PS176
ASMedia ASM1042A
Intel WGI210
Performance
Maximum Cable Length
11.0 in [28 cm]
Maximum Digital Resolutions
4K 60Hz
PXE
Yes
Physical Characteristics
Color
Black & Silver
Form Factor
Compact
Product Height
1.1 in [27.0 mm]
Product Length
4.9 in [12.4 cm]
Weight of Product
5.2 oz [147.8 g]
Product Width
2.7 in [69.0 mm]
Material
Aluminum and Plastic
Cable Length
11.0 in [28 cm]
Power
Power Source
Bus Powered
Software
OS Compatibility
Windows® 10 (32/64 bit), 8.1 (32/64bit), 7 (32/64bit)
Windows® Server 2008 R2, 2012(32/64bit)
macOS 10.10 -10.15, 11.0
Special Notes / Requirements
Note
MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3.
What's in the Box
Included in Package
Docking Station
User Manual
