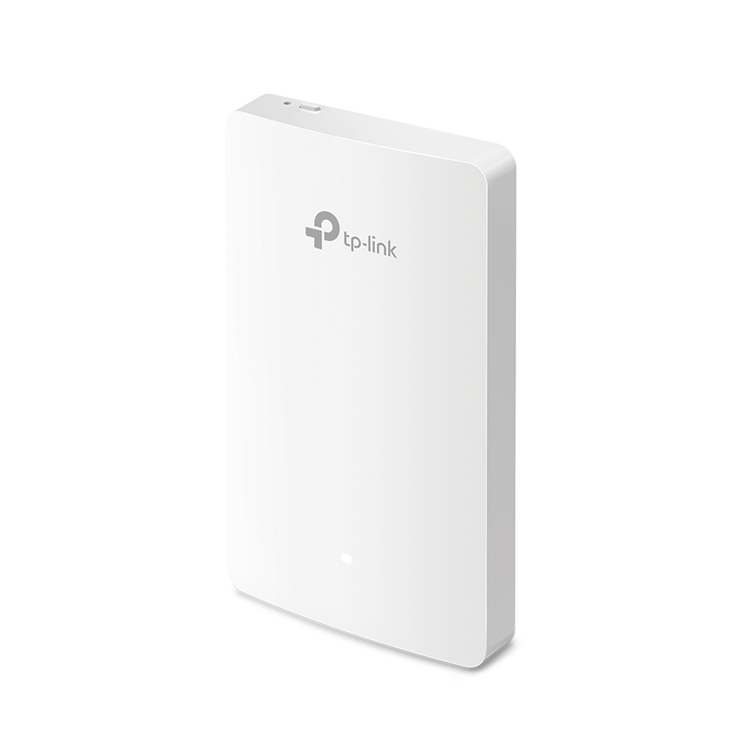

TP-Link Omada EAP235-Wall (AC1200) Dual-Band 4-Stream Wall-Plate Wi-Fi 5 Access Point
Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point - Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†- Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for a wired device.- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralised Cloud Management, and Intelligent Monitoring.- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.- Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm &; EU &; US standard junction box, and 802.3af/at PoE support.- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.
11ac Wi-Fi for the Best Room-by-Room Connection
Dedicated Complete, Private Wi-Fi Network in Each Room An EAP in each room allows guests to enjoy their own private Wi-Fi network that's fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More 802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.†
Absolute Thinnest, Inconspicuous Design The thinnest wall plate AP available-only 15 mm-featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered With 802.3af/802.3at Power over Ethernet supported there's no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you're ready to go.
Quick, Simplified Installation EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary. *Fits three kinds of wall junctions
Full Gigabit Ports to Bridge Network Equipped with four Gigabit data ports (1*uplink + 3*downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Omada SDN-Smarter Cloud Solution for Business Networking Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle-Free Centralised Cloud Management: 100% centralised cloud management of the whole network from different sites-all controlled from a single interface anywhere, anytime.
Easy Management with the Omada App Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
- Interface
- Uplink: 10/100/1000 Mbps Ethernet Port*1
- Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)
- Physical Security Lock
- Yes
- Button
- Reset
- Power Supply
- 802.3af/802.3at PoE
- Power Consumption
- 9.8 watts /24.4 watts (PoE Out Included)
- Dimensions
- 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in)
- Antenna
- 2 Dual-Band Antennas
- 2.4GHz: 2*4dBi
- 5GHz: 2*4dBi
- Mounting
- Wall Plate Mounting
- Wireless Standards
- IEEE 802.11a/b/g/n/ac
- Frequency
- 2.4GHz and 5GHz
- Signal Rate
- 5GHz: Up to 867Mbps
- 2.4GHz: Up to 300Mbps
- Wireless Functions
- 16 SSIDs(Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Band Steering
- Beamforming
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
- Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN port based VLAN
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
- Transmission Power
- CE:
- =20 dBm (2.4 GHz, EIRP)
- =23 dBm (5 GHz, EIRP)
- FCC:
- =21 dBm (2.4 GHz)
- =21 dBm (5 GHz)
- Omada App
- Yes
- Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access
- Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- Management MAC Access Control
- Yes
- SNMP
- v1,v2c
- System Logging Local/Remote Syslog
- Local/Remote Syslog
- SSH
- Yes
- Web-based Management
- HTTP/HTTPS
- L3 Management
- Yes
- Multi-site Management
- Yes
- Management VLAN
- Yes
- Certification
- CE, FCC, RoHS
- Package Contents
- Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
- Installation Guide
- Mounting Screw
- System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
