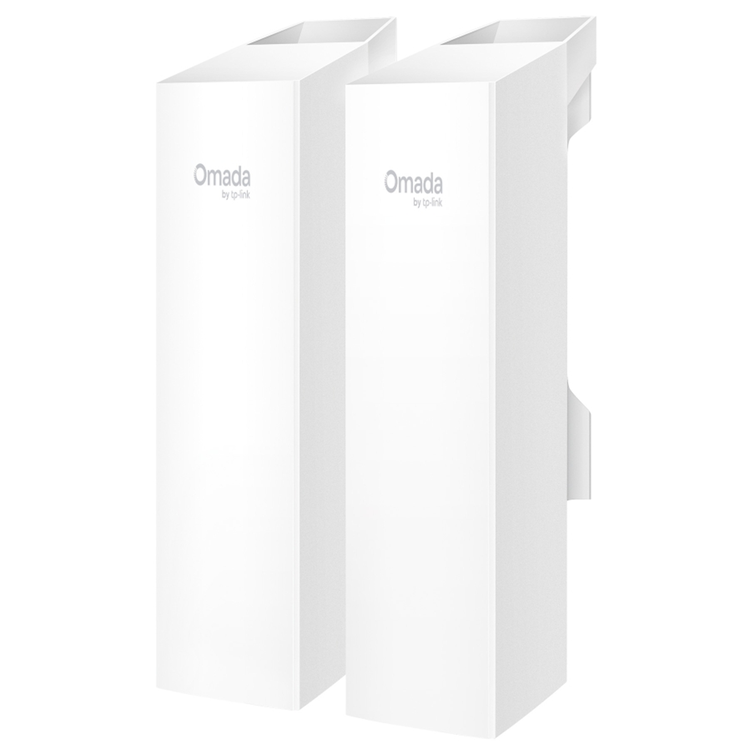

TP-Link Omada EAP100-Bridge KIT 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge - Up to 1640 ft (500 m)
Wi-Fi transmission* - Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever. - Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments. - App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification. - Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems). - 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.? - Built for Tough Outdoor Conditions:
Features an IP65 weatherproof enclosure and operating range of -40? to +158 ?.** - Remote Monitoring &; Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.§ Seamless Point-to-Point Connections Enjoy reliable network performance up to 1640 ft (500 m) transmission distance.
- Interface
- 3x 10/100 Mbps Ethernet Ports
- Button
- Reset
- Power Supply
- 12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE
- Max. Power Consumption
- 4.8 W
- Dimensions ( W x D x H )
- 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
- Antenna Internal
- 2×2 Dual-polarized directional MIMO antennas
- 2.4 GHz: 8.0 dBi
- Horizontal:70°, Vertical: 70°
- Weatherproof Enclosure
- IP65
- Mounting
- Pole and wall mounting ( Pole accessories included)
- Coverage
- 500 m (0.31 mi)*
- Wireless Standards
- IEEE 802.11b/g/n
- Frequency
- 2.4 GHz
- Signal Rate
- 2.4 GHz: Up to 300 Mbps
- Wireless Functions
- - MIMO: 2.4G 2 × 2 MIMO
- - Mesh
- - Beamforming
- - Channel: 1-11 (US); 1-13 (EU)
- - Multiple SSIDs:8
- - Wireless Statistics
- - Wireless Schedule
- - Reboot Schedule
- - RADIUS Accounting
- - Static IP/Dynamic IP
- - Rate Limit
- - Guest Network
- - Enable/Disable Wireless Radio
- - Enable/Disable SSID Broadcast
- Wireless Security
- - VLAN
- - Rogue AP Detection
- - Maximum number of MAC Filter: 4,000
- - Wireless Encryption
- Transmission Power
- - CE:
- <20dBm (2.4 GHz, EIRP);
- - FCC:
- <22dBm (2.4 GHz)
- Omada App
- Yes
- Restore & Backup
- Yes
- Firmware update via Web
- Yes
- NTP
- Yes
- Centralized Management
- - Omada Hardware Controller
- - Omada Software Controller
- - Omada App
- Email Alerts
- Yes
- LED ON/OFF Control
- Yes
- SNMP
- Yes
- System Logging Local/Remote Syslog
- Yes
- SSH
- Yes
- Web-based Management
- Yes
- Certification
- CE, FCC, RoHS
- Package Content
- - EAP100-Bridge KIT
- - Installation Guide
- - Pole Mounting Kit
- Environment
- - Operating Temperature: -40 °C-70 °C (-40 °F-158 °F);
- - Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
- - Operating Humidity: 10%-90% non-condensing;
- - Storage Humidity: 5%-90% non-condensing
