Ubiquiti

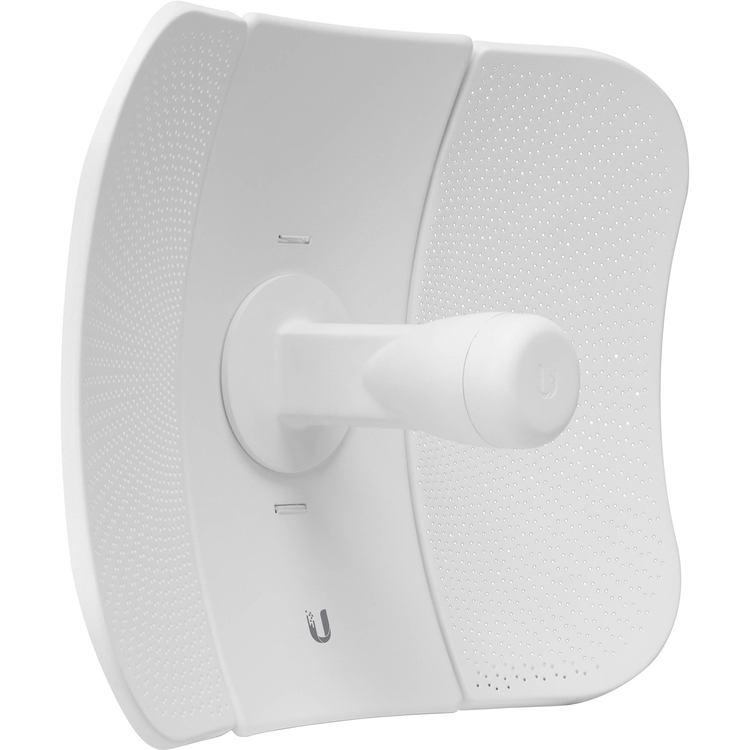

Ubiquiti UISP LBE-5AC-XR airMAX LiteBeam 5GHz Outdoor Wireless Station,

Product Id NAPUBI221122
Traveller Price
Price: $333.52 NZD
Tax free price for international travellers
Product Id NAPUBI221122
View all UbiquitiSold by PB Tech
Description
Ubiquiti UISP LBE-5AC-XR airMAX LiteBeam 5GHz Outdoor Wireless Station, 450+ Mbps Throughput

Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links.
The airMAX® LiteBeam® AC 5 GHz XR (LBE 5AC XR) is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.
- Proprietary airMAX ac chipset
- Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
- High-gain antenna with InnerFeed® technology
- Establishes high-speed, extremely-long-distance links
- Integrated GPS
- Link planning support via ISP Design Center
- Dedicated management radio for quick device setup via the UISP® Mobile app

Mechanical
Dimensions
747 x 525 x 347 mm (29.41 x 20.67 x 13.66")
Weight
3.2 kg (7.06 lb)
Enclosure materials
Aluminum alloy, UV stabilized polycarbonate
Mount material UV stabilized polycarbonate
Mount
Integrated pole mount (included)
Pole compatibility: Ø35-60 mm (Ø1.38-2.36")
Wind loading
1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Networking interfaces
(1) GbE RJ45 port
Button
Factory reset
LEDs
Power/ethernet
RF connections
Internal
Max. power consumption
7W
Power method
Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply
24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range
22-26VDC
Operating temperature
-40 to 70° C (-40 to 158° F)
Operating humidity
5 to 95% non-condensing
System
Maximum throughput
450+ Mbps
Encryption
WPA2-PSK (AES)
Software
OS
airOS®
Modes
PtMP, PtP
Services
SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities
airView®, speed test, alignment, discovery, ping, traceroute, constellation
Management interface
Dedicated management radio for quick device setup via the UISP™ Mobile app
WEB UI
Minimum software requirements
Modern Web browser or Android/iOS smartphone
RF
Operating frequency*
5.15 to 5.85 GHz
* Depends on regulatory region.
Max. conducted TX power
25 dBm
Management radio
2400 - 2483.5 MHz
Channel bandwidth
10/20/30/40/50/60/80 MHz
Antenna Gain
29 dBi
Isolation
20 dB
Beamwidth
HPOL: 3 dB: 5.5°, 6 dB: 7.5°
VPOL: 3 dB: 5.5°, 6 dB: 7.5°
Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt
