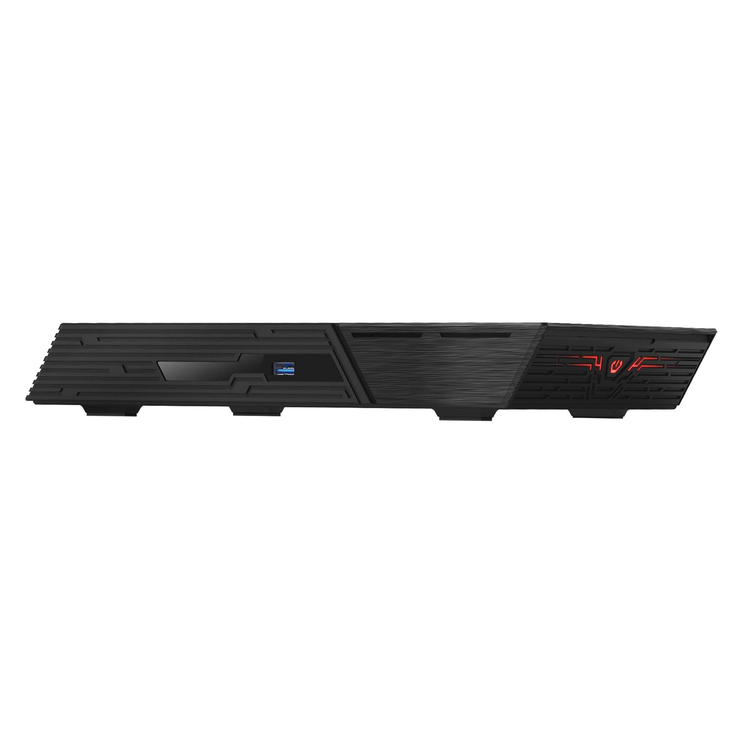

FLASHSTOR 12 Pro (FS6712X)
Store more in a flash!
- Quad-Core 10 nm Intel Celeron N5105 CPU
- 12x M.2 NVMe slots
- Megafast 10-Gigabit Ethernet
- 4 GB of fast and efficient DDR4-2933 RAM
- Dual USB 3.2 Gen 2x1
- HDMI 2.0b
- S/PDIF output for amazing sound quality
- Smooth 4K hardware transcoding
- Supports Wake on LAN
Your Data - With You on the Road
1. No longer nor wider than a piece of A4 sized paper
2. SSDs not as sensitive as hard drives
3. Extremely fast in any situation


Your ASUSTOR Brings Virtually Unlimited Potential to Final Cut Pro
Archiving and unfinished raw content are among the most common storage problems content creators encounter when working on a Mac. Final Cut Pro Libraries can grow rapidly and out of control. Content creators often turn to USB external drives to store material for Final Cut Pro. When using a Mac, especially portable Macs like the MacBook Pro, external drives are often connected and disconnected, which can lead to wear and tear of the port. External drives are also inconvenient as the files cannot be conveniently shared with coworkers or collaborators and external drives are susceptible to damage in ways a NAS is not. A NAS remains stationary while digitally making your files available to you while an external drive is portable, increasing the risk of drops, spills or other types of damage.


ASUSTOR Storage with Adobe Creative Cloud
ASUSTOR is an official Adobe Partner for video and audio solutions


Store Games on an iSCSI Drive
A NAS's enormous capacity helps expand storage for a PC. According to modern operating systems, iSCSI drives appear as local drives and programs which cannot be installed on network shares may be installed. This enables certain games to be played from a NAS when they can't be run on a network share.


Efficient and Fast
The 10 nm Quad-Core Intel Celeron N5105 processor brings speeds of up to 2.9 GHz. Performance is up to 31% higher than the previous generation, ensuring maximum speed for your workflow in an efficient package.


Windows sequential read and write (RAID 5)

* Performance figures are achieved in the ASUSTOR lab using state of the art client computers under optimized network settings, and could vary in different environments. Ordinary desktop or notebook computers may be unable to reproduce these figures.

Keeping SSDs Cool
The silent fan and efficient air duct design achieve rapid heat dissipation to ensure that SSDs get the cooling they need.


Roon Server and S/PDIF
The Flashstor series come with S/PDIF over TOSLINK. Enjoy high quality sound with S/PDIF combined with Roon or High-Res Player for an unmatched audio experience.
Hi-Res Player is a third party music player for ASUSTOR NAS devices. Hi-Res Player supports a wide variety of common media formats including MP3 songs while also supporting high-resolution DSD and lossless formats for an unrivalled music playback experience.


Use Roon Server with your Windows, Mac, iOS and Android devices to stream music stored on your NAS to Sonos, AirPlay and Roon Ready devices.


Efficient and Quiet
The Flashstor keeps your SSDs and NAS cool, quiet and efficient. When idling, the Flashstor only emits 18.7 decibels of sound. While quietly dissipating heat, the Flashstor makes it easy focus on content creation and consumption without noise interference.


Speed has Never Looked So Good
The Flashstor's aesthetics are not only for looks, but are designed to ensure efficient cooling to keep components running at their maximum speeds.


Saving Power Costs with the Flashstor
The efficient design of the Flashstor and support for M.2 NVMe drives ensure lower power usage. The Flashstor NAS comes with ADM and its powerful power saving features to ensure maximum efficiency.
Like a remote control, your NAS can be turned on and off and put to sleep to ensure data can easily accessed at any time while reducing power consumption costs and saving energy.


The most efficient way to use your NAS is to turn off the NAS when not in use. Let the NAS rest when you sleep or away from the home/office. ADM's power scheduling features enable you to schedule shutdown, startup, and hibernation of your NAS making saving power easy and efficient.


More Efficient than Ever Before
Easily Transcode 10-bit 4K H.265 media with hardware decoding with unbelievably smooth video playback in LooksGood for the ultimate in 4K enjoyment.


The Ultimate Live Streaming Tool
ASUSTOR Live Your own streaming and backup center for YouTube and Twitch.


Create the Ultimate Home Multimedia Center
Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.


Photo Gallery 3 + AiFoto 3
The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.


Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM's various backup tools help protect ransomware even better.
Network Attack Protection
- Firewall
- ADM Defender
- Cloud Backup Center offsite backups
Secure Data Transmission
- VPN connection
- SSL certificate connection
- Automatic logout
Internal Data
- AES-256 folder encryption
- Antivirus software
Access Control
- File/folder/app isolation
- 2-Step Verification
- Wake-on-LAN (WOL)



Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 44 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.


Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.


DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.


Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.


Portainer - Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.


Dr. ASUSTOR
ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.


Mobile Apps
ASUSTOR's exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.


App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.

Hardware Specifications

CPU

CPU Model
Intel Celeron N5105

CPU Architecture
x64 64-bit

CPU Frequency
Quad-Core 2.0GHz (burst up 2.90 GHz)

Memory

Memory
4GB SO-DIMM DDR4

Memory Module Pre-installed
4GB (1x 4GB)

Total Memory Slots
2

Memory Expandable up to
16GB (2x 8GB)
Support mixed capacity
Flash Memory
8GB eMMC

Storage

M.2 Drive Slots
12

Compatible Drive Type

M.2 2280 NVMe

Maximum Drive Bays with Expansion Unit
20

External Ports

Expansion
2x USB 3.2 Gen 2x1; 2 x USB 2.0

Network
1 x 10 Gigabit Ethernet (10G/5G/2.5G/1G/100M/10M)

Multimedia Output
1x HDMI 2.0b, 1x S/PDIF

Others

System Fan
1 x 80mm

Power Supply Unit / Adapter
90W x1

Input Power Voltage
100V to 240V AC

Certification
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

Operation

Power Consumption
26 W

Noise Level
18.7dB

Operation Temperature
0°C~40°C (32°F~104°F)

Humidity
5% to 95% RH

Size and Weight

Size
48.3 (H) x 308.26 (W) x 193 (D) mm

Weight
1.37 kg / 3 lb
Software & Features

General Specifications

Supported OS

Windows 7, 8, 10, 11, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022
macOS
UNIX, Linux, and BSD

Supported Languages
Deutsch, English, Français, Italiano, Nederlands, ???????, ???, ??, ????, ????, Ceská, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ???????

Supported Browsers

Firefox
Chrome
Safari
Microsoft Edge

Network

Network Protocols
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog

Connection and transmission

TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
Jumbo Frame (MTU)
VLAN
EZ Connect
Wireless Network
DDNS and EZ-Router
Supports Wake-on-LAN (WOL)

File Management & Sharing

File System

Internal Drive: EXT4 ,Btrfs
External Drive: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

File Explorer

Web-based File Management
ISO File Mounting
Share Links
Task Monitor
Browse Files on Local PC
Thumbnail Previews
Data Access via External Optical Drive
Supports video playback

Network Recycle Bin

Share folder-based
Maintains original directory structure and file permission
On-click restore
Supports scheduled emptying
Filtering rules
- File size
- File extension
Deletion Settings
- File size
- File date

Storage management

RAID

Support Multiple Volumes with Spare Drives
Volume Type: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Support for Online RAID Level Migration

iSCSI/IP-SAN

Maximum Targets: 256
Maximum LUNs: 256
Maximum Snapshot Versions of a Single LUN: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO
Persistent (SCSI-3) Reservations

Disk Management

Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans

Access & Security

Access Control

Maximum Number of Users: 4096
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 512
Supports Windows Active Directory
Supports Windows Active Directory / LDAP

ACL

Provides both Windows ACL and Linux ACL permission configuration methods
Can enable Windows ACL for specific shared folders
Comprehensive support for Windows’ 13 types of advanced permission settings
Can view Windows ACL permission settings from within ADM
Supports local users and groups
Exclusive permission reset function allows users to quickly restore default permissions

System Administration

Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support

Security

AES 256-Bit Encryption
Firewall: Prevent Unauthorized Access
Alert Notifications: E-mail, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/6/61/62/63/64/65/66/67/70/71/FS67 Series
RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.

Network Defender

Auto black list
Trusted list
Black/White list
- Supports IP/IP range/geolocation

Backup

Backup Solutions

Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
EZ Sync

Snapshots

Btrfs Snapshots
256 snapshots
iSCSI LUNs
Support model: AS31/32/40/50/51/52/53/61/62/63/64/65/66/67/70/71/FS67. Snapshot Center will not display Volume snapshots information in other models.

Others

ASUSTOR Hightlight

System Migration
EZ Connect
Dr. ASUSTOR
2-way Backup
Task Monitor

Eco-Friendly Design

Auto-Standby for external drives
Auto Fan Control
LED Night Mode
Power Schedule: On, Off, Restart
Featured Apps - Official ASUSTOR Apps
Antivirus (ClamAV)

Scheduled Scans
Automatic Virus Definition Updates
Quarantine Infected Files

ASUSTOR Portal(HDMI Local Output)

Support Firefox browser
Power Control Settings: Power on, Sleep, Restart and Wake via Remote
Customizable ASUSTOR Portal Desktop Wallpaper
Add Shortcuts to Favorite Websites
Increased TV Compatibility via Overscan and Resolution Settings
Maximum Resolution:
ASUSTOR Portal comes preloaded with Netflix and Youtube. Users can install the supplementary URL-Pack to get access to even more popular video streaming sites such as Plex, Vimeo and Youku.
After installing URL-Pack-Social, users will be able to choose between social media sites such as Facebook, Twitter, Linkedin, Pinterest, Hangouts, Telegram, Snapchat and Instagram.

VirtualBox

Virtual Machines are Able to run the Following Operating Systems: Windows, Linux, Solaris, macOS
Virtual Machine Import Format: OVF
Virtual Machine Export Format: OVF 0.9, OVF 1.0, OVF 2.0
Virtual Machine Snapshots
Physical NAS Network Port can be Designated for use by Specific Virtual Machine

Linux Center

Integrating NAS operating system with Linux
Easy installation with just one click
HDMI output on command

Download Center

Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
Torrent Search
Choose Files Before a BT Task Starts
Customizable Download Schedule
Bandwidth Control
RSS Subscription and Automatic Downloading (Broadcatching)
ASUSTOR Download Assistant for Windows & Mac
AiDownload for Android with Push Notification
Smart Download Function

Cloud Backup Center

Support Amazon S3, Backblaze B2, Microsoft Azure Blob Storage, Alibaba Cloud, Baidu Cloud, IBM Cloud and Rackspace Cloud Files, SFTP, WebDAV, Box, hicloud S3, Google Cloud Storage
Immediate or scheduled backup
Perform multiple backup tasks and back up multiple accounts

DataSync Center

Support OneDrive, OneDrive Business, Google Drive, Dropbox, and Baidu Wangpan,Yandex
Supports file filter and bandwidth limitation
Supported backup methods:
- Sync
- Directly upload files to Cloud from NAS
- Directly download files from Cloud to NAS

FTP Explorer

Directory Structure View with Drag & Drop Transfers
Task Monitor
Stopping of Transmission Task & Resumption of Connection
Encrypted Connections: Explicit over TLS, Implicit over TLS
FTP Site Manager
Bandwidth Control
Maximum Simultaneous Transfer Control

HiDrive

Each ADM Account is Able to Individually Log in to One HiDrive Account
Supported Backup Methods:
- Directly Upload Files to HiDrive from NAS
- Directly Download Files from HiDrive to NAS
Supported Protocols:
- Rsync
- FTP
- FTPS
- SFTP
- Rsync + SSH

LooksGood

Built-in three main video library categories; movies, TV shows, home movies and smart video sorting management
Efficient global search function allows for searches by keywords followed by the execution of more detailed searches for the purpose of finding categories of movies, TV shows, home movies and parameters such as actors, director, year, genre, writer and title
Attractive poster wall and thumbnail display
Automatic production of video poster thumbnails
Centralized management and ability to configure order of favorites and playlist history
System administrator is able to configure video library and editing permissions according to user preferences
Can configure access permissions to share with friends and family
Multimedia conversion feature
Self-defined smart folder for video conversions
Easy Streaming with Chromecast and DLNA
Supports playback of videos in Apple TV via AiVideos tvOS version

Mail Server

Each ADM Account can Become an Independent Email Account
Email Activity Monitor (Over 1 Week, 1/3/6 Months)
Provides SMTP, IMAP and POP3 Mail Protocols
Supports SMTP Relay and Verification
SMTP-SSL Secure Connections
Spam Filter and Black List Settings
Antivirus Scanning for Emails
Email Alias Creation and Mapping
Monitoring of Mail Queue
Mail Service Activity Log
Exclusive Email Backup Mechanism
Auto-Forwarding and Auto-Response Protocols

Photo Gallery 3

Quickly find and view photos from a specific date in Photo Gallery 3’s timeline.
Photo Gallery 3 sorts your photos in a smarter way. Smart albums found in Photo Gallery 3 include places, videos, recently added, favorites and duplicates.
Supports two methods to share photos, share links to other NAS users or to friends and family. All shared albums have optional encryption to protect sensitive information.
Easily understand photo metadata as well as edit photo descriptions to make photo identification easier.
Easily find photos by keyword search.

Surveillance Center

Up to 44 channels in 720p on single live view display
On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
Up to 4 channels of synchronous and non-synchronous playback with audio
Intelligent video analytics including motion detection and foreign object detection
Supported Browsers: Microsoft Edge, Firefox, Chrome
Event notification supports SMS, E-mail, and mobile push notification
Automated event action rules
Role-based access control
RTSP streaming server (video and audio)
AiSecure mobile app for iOS and Android with Push notification
ONVIF Profile S, T supported
CMS Lite supports connect up to 256 IP Cameras from 32 NAS
Two different camera license packages are offered: single channel and 4 channels.
Maximum IP Cam (4 Free Camera Licenses; Additional Licenses to be Purchased)
Minimum PC Client Requirements
- CPU: Intel i5/i7 or above
- RAM: DDR3 4G or above
- Operating system Windows 7 and onward
- Windows browsers: Microsoft Edge, Chrome, Firefox
- Display resolution: 1280x800 pixels or higher for best user experience
- Network interface: Gigabit x1
- Independent graphics card is highly recommend

SoundsGood

Import Personal/Public Music Collection
Personal/Public Music Collection Permission Control
Playlist Editor
ID3 Tag Editor
Local Speaker Support: HDMI, USB, S/PDIF
Supported Audio Formats for Browser: MP3, WAV, Ogg
Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
ASUS DAC Support

Takeasy

Download from YouTube, Vimeo, Twitch and More
Selectable Video Type and Quality
Automatic Downloads with Twitch Subscriptions
Preview Downloads in Progress
Online Playback

UPnP Media Server

Supports PS3 and other Digital Media Player Capable Devices
Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)

VPN Client

Supported VPN Protocols: PPTP, OpenVPN, WireGuard VPN (ADM 4.2 Onwards)
Transmission Package Monitor
PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
OpenVPN Port Control
OpenVPN Link Compression

VPN Server

Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
View Current Connections & Ability to Disconnect Suspicious Connections
Comprehensive Connection Log

RADIUS Server

Centralized management of wireless network certification
Using WPA-Enterprise or WPA2-Enterprise encryption
Must be combined with a wireless router that supports RADIUS authentication

SNMP Server

Supports SNMP v1, v2c, v3 and trap
ASUSTOR NAS MIB provided

Syslog server

Supports standard syslog protocol
Graphical log monitoring by time and device
Supports TCP and UDP
Auto log archiving
User-defined email notification
