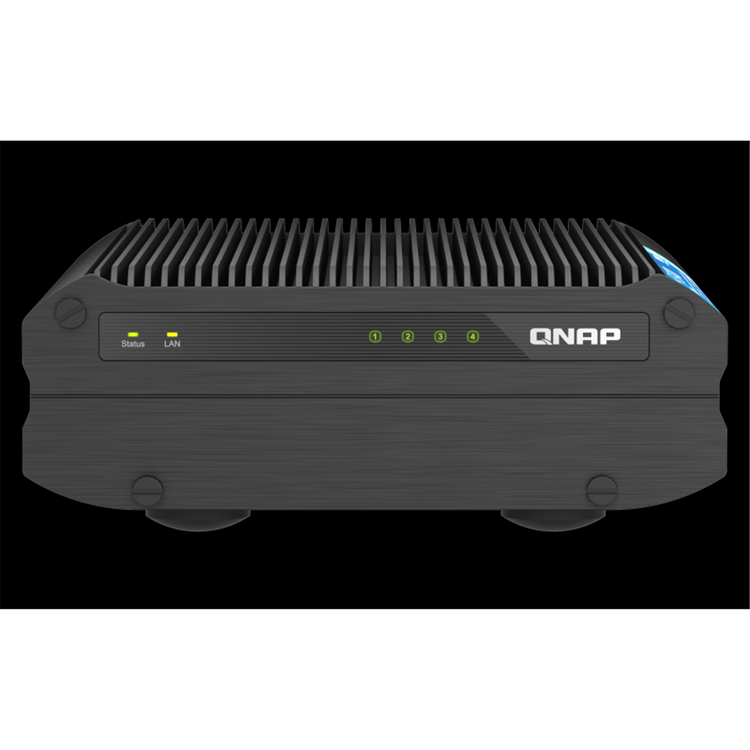

QNAP TS-i410X-8G Industrial Grade, Intel Quad Core Upto 3.0GHz, Fan Less, 4-Bay NAS Server,

QNAP TS-i410X-8G Industrial Grade, Intel Quad Core Upto 3.0GHz, Fan Less, 4-Bay NAS Server, 8GB Ram, 4X2.5" Sata, 2X 10GbE, 4X USB 3.2, 1XHDMI, Operating Temperature: -40 - 70 °C, 3 Years Warranty, Come with 8 Camera License

QNAP TS-I410X-8G External HDD/SSD Overview
Bring network-attached storage to harsh environments with the TS-i410X 4-Bay Industrial NAS Enclosure from QNAP. Boasting four 2.5" SATA III drive bays, AES-NI encryption, and dual 10-Gigabit Ethernet ports, the TS-i410X is designed to facilitate fast and secure storage and retrieval. Supporting RAID 0, 1, 5, 6, 10, JBOD and Single by default, this NAS can also be used in RAID 50 and 60 when using 8 drives or more via expansions or an optional 2.5" SATA to M.2 adapter. Connect external drives or uninterruptible power supply (UPS) units via four USB-A 3.2 Gen 2 ports.
A 2.0 GHz Intel Atom x6425E Quad-Core CPU and 8GB of onboard RAM allow for powerful processing. Output video via an HDMI port supporting resolutions up to 4K at 30 Hz. Optimized for industrial applications, this NAS features a durable fanless design. Use the included power supply and 12V input for less demanding environments, or take advantage of wider voltage applicable to industrial settings via the 9 to 36V input. The QNAP TS-i410X runs on the QTS 5 operating system and is compatible with clients running on Windows, Mac Linux, and UNIX.
2.0 GHz Quad-Core Processor with AES-NI Encrupt
The TS-i410X is powered by a 2.0 GHz Intel Atom x6425E quad-core processor and 8GB of dual-channel memory. With hardware-accelerated AES-NI encryption, the TS-i410X ensures the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5" SATA 6 Gb/s SSD slots to boost IOPS and meet the performance requirements of demanding applications. Please note, industrial SSDs are recommended.
Long-Term Availability
The TS-i410X is designed for availability and support over an extended period, making it an ideal choice for MSP, SI, and other IT-related businesses and commercial uses requiring matching NAS models for long-term projects.
Industrial-Grade Design
This unit features an industrial-grade hardened hardware design with a 9V ~ 36V DC wide-range power supply. With a fanless design and durable chassis compliant with military-grade MIL-STD-810H specifications, the TS-i410X can operate temperatures from -40°F to 158°F. It can be used as a set-top box, or used with an optional VESA 75 x 75mm wall-mount to provide installation flexibility. Use the included AC adapter for easy installation in a home business or office; a 9 to 36V DC input also recommends TS-i410X industrial and transportation applications with a variety of input voltage requirements.
Please note, the TS-i410X does not support redundant power; to avoid potential injury or damage to components, two power supplies should not be connected simultaneously.
Support for Industrial SSDs
Use of industrial wide-temperature SSDs is recommended. When using industrial wide-temperature SSDs, adjust the disk warning setting to 185°F or 85°C in Storage and Snapshots. Doing this ensures the alert matches the upper limit of SSD operating temperature. By default, the temperature is set at 158°F or 70°C for SSDs.
High-Speed 10GbE Connectivity
The TS-i410X provides two 10GBASE-T ports supporting Ethernet speeds up to 10 Gb/s. With QNAP's comprehensive and budget-friendly storage and networking solutions, you can easily and flexibly upgrade workplace or home networks to handle bandwidth-hungry applications. Plus, seven port trunking modes allow you to combine ports for greater bandwidth potential.
Compatible with Industrial-Grade 10GbE Switches
Boost your network performance by pairing the TS-i410X with an industrial-grade 10GbE switch, available separately. QNAP's QSW-IM1200-8C industrial-grade full 10GbE switch is optimized for use with the TS-i410X, accelerating high-speed and reliable network deployment in rugged environments. The QSW-IM1200-8C switch features a robust industrial-grade hardware design, provides Layer 2 management functions with a user-friendly interface, and comes with redundant DC power for reliable operations This design allows the QSW-IM1200-8C to fulfill bandwidth-demanding tasks for varied industrial network environments.
Multiple USB Ports for UPS Support and More
Four USB-A 3.2 Gen 2 ports support speeds up to 10 Gb/s and allow you to quickly backup and transfer large files to and from the TS-i410X. A wide range of USB devices including external hard drives or uninterruptible power supply (UPS) units are also supported for greater functionality and application potential.
Direct 4K HDMI Output for Multimedia and Virtual Machines
The TS-i410X features integrated Intel UHD Graphics that support hardware decoding and real-time transcoding. The HDMI output supports resolutions up to 4K at 30 Hz, benefitting applications such as video production and editing or industrial design that demands high resolution as well as intensive media storage, transfer, and display. By connecting the TS-i410X to an HDMI display, you can operate virtual machines from Virtualization Station or Linux Station, or directly watch multimedia content saved on the NAS.
Please note, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
M.2 SSD to 2.5" SATA Drive Adapter Support
Install one or more optional QDA-A2MAR adapters in the TS-i410X to use M.2 SATA SSDs and maximize the storage utilization via the 2.5" SATA drive bays. Boost storage efficiency by creating SSD volumes, tiered-storage environments with Qtier technology, or SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage and Snapshots Manager.
Smart Surveillance Solution for 24/7 Security
QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-i410X and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Free embedded channels support up to 2 IP cameras; scale camera channels via optional licenses based on monthly subscription plans. A mobile app allows for control and access via a smartphone; use compatible NAS expansion units to scale storage as needs grow.
QTS 5 Operating System
The TS-i410X comes with the QTS 5 operating system as standard, providing a optimal usage experience via an updated system kernel, optimized user interface, and advanced security features. QTS 5 is designed to offer smooth browsing and NAS operation. Intuitive visual design and a convenient search bar in the main menu ensure you find your favorite apps quicker. Plus, when performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Comprehensive Backup and Disaster Recovery
The TS-i410X supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed. For Windows, install NetBak Replicator to back up your Windows computer to QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data. Hybrid Backup Sync also makes it easy to back up data from a TS-i410X to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
Take advantage of license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression. Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time. Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
Multi-Version Snapshots Mitigate Ransomware Threats
The TS-i410X supports block-based snapshots that record the state of the system at any time. This functionality helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware. Take snapshots in seconds and revert the entire volume or LUN back to a specific point in time to prevent loss of important data. Snapshot content can be quickly restored to a local NAS, or restored on a folder or file basis to a local or remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side. Additionally, multiply data protection by backing up snapshot files. Replicate volume and LUN snapshots in the TS-i410X to a remote NAS via Snapshot Replica by copying only the changes made. This helps save time and bandwidth, and can be run manually or on a scheduled basis.
Your File Storage and Collaboration Center
The TS-i410X integrates a range of apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux or UNIX, and provides a smart NAS solution for professionally managing your files.
Use File Station to manage, access, and share all the files in the TS-i410X and view snapshots files, all from your web browser. You can also easily mount remote NAS folders and cloud storage.
Qsync makes any file uploaded to a TS-i410X available via linked devices, such as computers, laptops, and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.
Qsirch, QNAP's powerful Google-like search tool, helps you quickly find images, music, videos, documents, and emails by keywords, color, and other search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Employ the Qfiling App to automate your file organization. All you need to do is categorize files and set a schedule; Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.
Comprehensive Security and Privilege Settings
The TS-i410X is loaded with flexible privilege settings and security measures. IP blocking, 2-step verification, HTTPS connection verification, and additional apps help ensure optimal NAS protection against threats like malware and hackers.
The TS-i410X supports simplified yet comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
QuFirewall protection supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
QVPN supports creating a virtual private network (VPN) client, using the TS-i410X as a VPN server and WireGuard VPN service with an easy-to-use interface for setting up a secure connection. A virtual private network allows secure access to network resources and services across public networks.
Security Counselor provides a security portal for the TS-i410X to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
All-in-One Hosting for Virtual Machines and Containers
By running multiple virtual machines and containers on the TS-i410X, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network and Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Use Virtualization Station to run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
Container Station provides access to Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, and allows you to download apps from the built-in Docker Hub Registry, import or export containers, and create abundant microservices.
Linux Station runs Linux applications including apps from the Software Center directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.
Flexible and Economical Storage Expansion
QNAP provides easy ways to expand your storage capacity. Connect expansion enclosures to the TS-i410X, and manage NAS storage expansion with the user-friendly Storage and Snapshots Manager app. Or, mount cloud storage or remote file servers to expand the capacity of the TS-i410X while also centrally managing files on the NAS, cloud storage, and remote devices.
Productivity-Boosting Apps
The TS-i410X provides an App Center that includes feature-rich apps to expand your NAS potential.
- Utilize QmailAgent for email backup and recovery and manage multiple email accounts in their native format with strong security and data integrity.
- Qmiix is an Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.
- Notification Center consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
- QuObjects provides a high-performance S3 compatible development environment that runs on your TS-i410X to simplify service development workflows, from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
- Browser Station lets you remotely access protected data on the same LAN as the TS-i410X without going through complex VPN settings.
- QuFTP allows your TS-i410X to function as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.

Computing

CPU
2 to 3 GHz Quad-Core

Processor
Intel Atom X6425E

GPU
Intel UHD Graphics

Total Installed Memory
8 GB

Flash Memory
4 GB

General

Number of Bays
4 x 2.5"

I/O
2 x RJ45 (10GbE)
4 x USB-A (USB 3.1/3.2 Gen 2 (10 Gb/s))
1 x HDMI (HDMI 1.4b)

Compatible Drive Interface
SATA II, SATA III

Media Card Slots
None

Form Factor
Tower

Hot-Swap Support
Yes

Wake on LAN
Yes

Networking

Supported Protocols
CIFS/SMB
FTP
SFTP
TFTP

iSCSI LUN
256

iSCSI Target
256

Max Concurrent Connections
1500

Max Folders
512

Max Groups
512

Max User Accounts
4096

Max Volume Number
128

Software

Installed Operating System
QTS 5.0.1

Supported File Systems
Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS

OS Compatibility
macOS 10.10 or Later
Ubuntu 14.4 or Later
CentOS 7 or Later
UNIX
Windows 7 or Later
Windows Server 2008 R2 or Later
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility

App Compatible
Yes: Android & iOS
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility

Supported Browsers
Chrome, Edge, Firefox, Safari

Supported Languages
Brazilian Portuguese
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish

Security

Encryption
AES-NI

Security Features
Kensington Security Slot

VPN Client Connections
100

Electrical

AC Input Power
100 to 240 VAC, 50 / 60 Hz

Power Source
AC Adapter

Power Consumption
25.592 W (Typical)
17.628 W (Standby)

PSU Wattage
1 x 96 W

Environmental

Operating Temperature
-8 to 102°F / -40 to 70°C

Operating Humidity
5 to 95% (Non-Condensing)

Storage Temperature
-49 to 185°F / -45 to 85°C

Physical

Color
Black

Status Monitoring
LED Indicator

Audible Alarm
Yes

Built-In Speakers
None

Dimensions
10 x 7.09 x 2.56" / 25.4 x 18.01 x 6.5 cm

Weight
5.6 lb / 2.5 kg
