QNAP

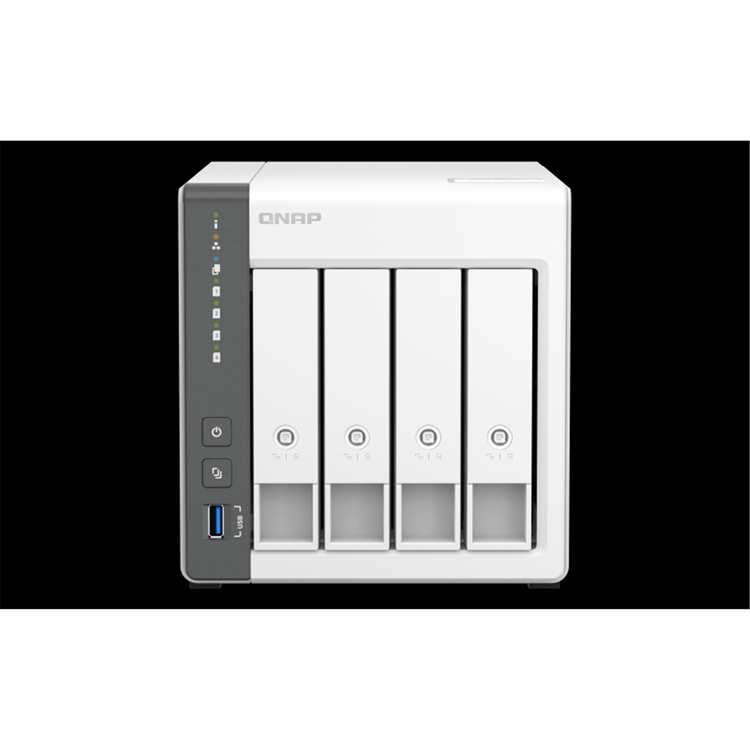

QNAP TS-433-4G Home and Business Quad Core 2.0GHz, ,4GB Memory, 4-Bay Desktop NAS Server,
View all QNAPSold by PB Tech
Description
QNAP TS-433-4G Home and Business Quad Core 2.0GHz, ,4GB Memory, 4-Bay Desktop NAS Server, Hot-swappable, 2x GbE, 3x USB3.2, 2 Years Warranty, Come with 2 Camera License
QNAP TS-433-4G - TS-433-4G ARM 4-core Cortex-A55 2.0 GHz Run your own personal cloud storage and enjoy easy file access, sharing, and synchronization with TS-433.The TS-433 is designed with a 2.5GbE port to enhance collaboration and increase remote work productivity.It also offers rich multimedia applications and is a complete home entertainment portal. - ARM 4-core Cortex-A55 2.0GHz processor - System memory 4 GB, not expandable - 4x 3.5-inch SATA 6Gb/s, 3Gb/s - 1x 2.5 Gigabit Ethernet port (2.5G/1G/100M) - 2x USB 2.0 port - 1x USB 3.2 Gen 1 port Centralized multimedia management Centralized storage of photos, music, and videos; easily browse, organize, and share multimedia files. AI-powered image recognition With the built-in NPU (Neural Network Processing Unit) processor, TS-433 boosts performance for fast face and object recognition. Home Entertainment Center Supports ARM NEON technology, which accelerates video processing for a better entertainment experience. Secure Remote Access myQNAPcloud allows you to easily access, manage, and share NAS files over the Internet. Snapshot protection against ransomware Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection. Comprehensive security management Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encrypted access, and more Minimalist Design The compact and sleek TS-433 features a clean and essential design that fits perfectly in your home or office.The design also extends to the hard drives, which can be installed without a screwdriver. Effective cooling fan for heat flow The TS-433 is small in size and stays powerful, cool and quiet thanks to an effective fan. Build a 2.5GbE high-speed network environment QNAP offers comprehensive, budget-friendly storage and networking solutions that provide a wide range of connectivity options.Now upgrade your work or home network with ease and flexibility to handle bandwidth-intensive applications.
QNAP TS-433-4G - TS-433-4G ARM 4-core Cortex-A55 2.0 GHz Run your own personal cloud storage and enjoy easy file access, sharing, and synchronization with TS-433.The TS-433 is designed with a 2.5GbE port to enhance collaboration and increase remote work productivity.It also offers rich multimedia applications and is a complete home entertainment portal. - ARM 4-core Cortex-A55 2.0GHz processor - System memory 4 GB, not expandable - 4x 3.5-inch SATA 6Gb/s, 3Gb/s - 1x 2.5 Gigabit Ethernet port (2.5G/1G/100M) - 2x USB 2.0 port - 1x USB 3.2 Gen 1 port Centralized multimedia management Centralized storage of photos, music, and videos; easily browse, organize, and share multimedia files. AI-powered image recognition With the built-in NPU (Neural Network Processing Unit) processor, TS-433 boosts performance for fast face and object recognition. Home Entertainment Center Supports ARM NEON technology, which accelerates video processing for a better entertainment experience. Secure Remote Access myQNAPcloud allows you to easily access, manage, and share NAS files over the Internet. Snapshot protection against ransomware Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection. Comprehensive security management Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encrypted access, and more Minimalist Design The compact and sleek TS-433 features a clean and essential design that fits perfectly in your home or office.The design also extends to the hard drives, which can be installed without a screwdriver. Effective cooling fan for heat flow The TS-433 is small in size and stays powerful, cool and quiet thanks to an effective fan. Build a 2.5GbE high-speed network environment QNAP offers comprehensive, budget-friendly storage and networking solutions that provide a wide range of connectivity options.Now upgrade your work or home network with ease and flexibility to handle bandwidth-intensive applications.
Specifications
- Package contents
- 1x TS-433
- 1x Ethernet cable
- 1x AC adapter
- 1x power cable
- 16x hard disk screws (3,5")
- 12x hard disk screws (2,5")
- 2x insertion wrench
- 1x manual
- CPU
- ARM 4-core Cortex-A55 2.0GHz processor
- CPU Architecture
- 64-bit ARM
- Floating Point Unit
- Yes
- Encryption Engine
- Yes
- System Memory
- 4 GB on board (non-expandable)
- Note: Reserves some RAM for use as shared graphics memory.
- Maximum Memory
- 4 GB on board (non-expandable)
- Flash Memory
- 4 GB (Dual boot OS protection)
- Drive Bay
- 4x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility
- 3.5-inch bays:
- 3.5-inch SATA hard disk drives
- 2.5-inch SATA hard disk drives
- 2.5-inch SATA solid state drives
- Hot-swappable
- Yes
- Gigabit Ethernet Port (RJ45)
- 1
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M)
- 1 (2.5G/1G/100M)
- Wake on LAN (WOL)
- Yes
- Jumbo Frame
- Yes
- USB 2.0 port
- 2
- USB 3.2 Gen 1 port
- 1
- Form Factor
- Tower
- LED Indicators
- System Status, LAN, USB, HDD1~4
- Buttons
- Power, Reset, USB Copy
- Dimensions (HxWxD)
- 169 × 160 × 219 mm
- Weight (Net)
- 2.07 kg
- Weight (Gross)
- 3.5 kg
- Operating Temperature
- 0 - 40 °C (32°F - 104°F)
- Storage Temperature
- -20 - 70°C (-4°F - 158°F)
- Relative Humidity
- 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
- Power Supply Unit
- 90W adapter (12VDC), 100-240VAC
- Power Consumption: HDD Sleep Mode
- 8.45 W
- Power Consumption: Operating Mode, Typical
- 22.54 W
- Tested with drives fully populated.
- Fan
- 1 x 120mm, 12VDC
- System Warning
- Buzzer
- Kensington Security Slot
- Yes
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory
- 200
- Operating System
- QTS 5.0.1
- Supported Client Operating Systems
- Apple Mac OS 10.10 or later
- Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
- IBM AIX 7, Solaris 10 or later UNIX
- Microsoft Windows 7, 8, 10 and 11
- Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
- Supported Browsers
- Apple Safari (latest version)
- Google Chrome (latest version)
- Microsoft Edge (latest version)
- Mozilla Firefox (latest version)
- Supported Languages
- Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
- Storage Pool
- Yes
- SED Storage Pool
- Yes
- Maximum Pool size
- 308 TB
- Maximum number of storage pool
- 128
- Volume Type
- Thick, Thin, Static
- Maximum volume size
- 250 TB
- Note: At least 4 GB RAM is required.
- Maximum number of volume
- 128
- Maximum shared folder size
- 250 TB
- Maximum number of shared folder
- 512
- JBOD Expansion
- Yes
- VJBOD / VJBOD Cloud
- Yes
- iSCSI Service
- Yes
- Fibre Channel Service
- Yes
- LUN Type
- Thick, Thin
- File-based iSCSI LUN
- Yes
- Block-based iSCSI LUN
- Yes
- Maximum LUN size
- 250 TB
- Note: At least 4 GB RAM is required.
- Maximum number of targets LUN
- 256
- LUN feature
- LUN Mapping (LUN can be moved between iSCSI and FC)
- LUN Masking
- WWPN Aliases Import/Export
- FC Port Group
- FC Port Binding
- Multipath IO (MPIO)
- Online LUN capacity expansion
- LUN snapshot
- LUN snapshot replication and clone
- Auto Tiering
- Yes
- Requires minimum 2GB memory.
- RAID Type
- 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
- 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
- 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
- 2-bay: JBOD, Single, RAID 0, 1
- RAID Group
- Yes
- To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
- RAID Level Migration
- Yes
- RAID Expansion (by adding Disk)
- Yes
- RAID Expansion (by replacing bigger Disks)
- Yes
- Storage Pool Expansion (by adding RAID Group)
- Yes
- RAID Hot Spare
- Global, Local
- RAID Sync/Rebuild/Scrubbing
- Yes
- Internal drive
- EXT4
- External drive
- EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
- Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
- Disk, Enclosure Locate
- Yes
- Disk S.M.A.R.T. Scan
- Yes
- Disk S.M.A.R.T. Data Migration
- Yes
- Ironwolf Health Management
- Yes
- Secure Erase
- Yes
- SSD Trim
- Yes
- SSD Life Estimation
- Yes
- Disk Roaming
- Yes
- Disk Standby
- Yes
- Volume Snapshot
- Yes
- LUN Snapshot
- Yes
- Maximum Snapshot (Per System)
- Check maximum number of snapshots of your NAS
- Maximum Snapshot (Per Volume / LUN)
- Check maximum number of snapshots of your NAS
- Minimum Snapshot Interval
- 5 minutes
- Snapshot Retention Policy
- Yes
- Self-serve Snapshot Recovery
- Yes
- Application Consisted Snapshot
- Yes
- Snapshot Full Clone
- Yes
- Snapshot Replica / Vault
- Yes
- SSD profiling tool
- Yes
- External Device Management
- Yes
- Mount Smart Phone (MTP)
- Yes
- External RAID Device (QNAP so on) Management (External Device Mode)
- Yes
- External RAID Device (QNAP so on) Management (NAS Mode)
- Yes
- File Server
- File sharing across Windows, Mac, and Linux/UNIX
- Microsoft networking (CIFS/SMB)
- Apple networking (AFP)
- NFS version 3/4 services
- FTP Server
- QuFTP
- FTP, SFTP and TFTP protocols
- FTP over SSL/TLS (explicit FTPS)
- FXP support
- Maximum FTP connection
- 1024
- File Station (Web)
- Yes
- Object Storage
- Yes
- Local user account
- 4,096
- Local group account
- 512
- Domain user/group account
- 200,000
- Domain Security
- Yes
- Domain Controller
- Yes
- Shared folder permission
- Yes
- Advanced folder permission
- Yes, (AFP, CIFS/SMB, FTP, and File Station)
- Windows ACL
- Yes, (CIFS/SMB)
- User quota
- Yes
- Group quota
- Yes
- Folder quota
- Yes, (Snapshot shared folder)
- Home folder
- Yes
- Resource Monitor
- Yes
- SNMP
- V2, V3
- Network recycle bin
- Recover files deleted using AFP, CIFS/SMB, and File Station
- Automatic cleanup and file type filter
- System Log & Notification Center
- Log recording: 3,000 event per second
- Smart Fan
- Yes
- Schedule on/off
- Yes
- Internet protocol
- IPv4, IPv6
- Virtual Switch
- Yes
- VLAN
- Yes
- DHCP Server
- Yes
- DDNS (Dynamic Domain Name Service)
- Yes
- Network access protection with auto-blocking
- SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
- Security Counselor
- Yes
- Malware Remover
- Yes
- AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP
- Yes
- 2-step verification
- Yes
- Allow/Deny List
- Yes
- Access Protection
- Yes
- Service binding
- Yes
- Firewall
- Yes
- vSphere Web Client Plug-in
- Yes
- VMware vSphere VAAI for iSCSI
- Yes
- VMware vSphere VAAI for NAS
- Yes
- Windows ODX
- Yes
- Windows/VMware Snapshot Agent
- Yes
- HTTP/HTTPS Connections
- TLS 1.0/1.1/1.2/1.3
- Supports WebDAV Connection
- Yes
- Supports Virtual Hosts
- 32
- Qsync
- Yes
- Note: At least 1 GB RAM is required.
- [Qsync] Management Mode
- User customization, Central
- [Qsync] Qsync client supported platforms
- Windows, macOS, Ubuntu, Android, and iOS
- [Qsync] Maximum number of version control
- 64
- HybridMount
- Yes
- Note: At least 1 GB RAM is required.
- [HybridMount] File Cloud Gateway
- Concurrent Connections = 20 Upload & 20 Download
- [HybridMount] Network Drive Mount
- Yes
- [HybridMount] Free cloud gateway sessions
- 2
- HBS (Hybrid Backup Sync)
- Yes
- Note: At least 1 GB RAM is required.
- [HBS (Hybrid Backup Sync)] NAS to NAS backup
- Yes
- [HBS (Hybrid Backup Sync)] Cloud Backup
- Yes
- [HBS (Hybrid Backup Sync)] Cloud Sync
- Yes
- [HBS (Hybrid Backup Sync)] 2-way and Active Sync
- Yes
- [HBS (Hybrid Backup Sync)] Apple Time Machine Backup
- Yes
- [HBS (Hybrid Backup Sync)] External drive backup
- Yes
- [HBS (Hybrid Backup Sync)] Maximum number of backup job
- 400
- Boxafe
- Yes
- Note: At least 4 GB RAM is required.
- [Boxafe] Office 365 Backup
- Yes
- [Boxafe] Google Workspace Backup
- Yes
- [Boxafe] Full-text search
- Yes
- Qsirch
- Yes
- Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
- [Qsirch] Previews
- Photos, music, videos, PDFs, Gmail, and others
- [Qsirch] Integrate Mac Finder
- Yes
- [Qsirch] Advanced picture search
- Yes
- [Qsirch] Search filters
- Yes
- QuMagie
- Yes
- Note: At least 1 GB RAM is required.
- [QuMagie] Browse photos
- Yes
- [QuMagie] Virtual and smart albums
- Yes
- [QuMagie] AI-assisted photo management
- People, things, places, and others
- Antivirus (free)
- Yes
- QVPN Service
- Yes
- Note: At least 1 GB RAM is required.
- [QVPN Service] Remote Access
- PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
- [QVPN Service] Supportedd utility and mobile app
- Windows, macOS, iOS, and Android
- [QVPN Service] Supported maximum clients
- 100
- LDAP Server
- Yes
- RADIUS
- Yes
- SQL server
- Yes
- License Center
- Yes
- Multimedia Console
- Yes
- Photo Station
- Yes
- Music Station
- Yes
- Video Station
- Yes
- Download Station
- Yes
- Notes Station
- Yes
- Qfiling
- Yes
- Media Streaming add-on
- Yes
- QmailAgent
- Yes
- QuWAN
- Yes
- DA Driver Analyzer
- Yes
- Q'center
- Yes
- Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
- Q'center Server
- Yes
- Q'center Agent
- Yes
- Connect to Q'center
- Yes
- Container Station
- Yes
- Note: At least 1 GB RAM is required.
- [Container Station] Supported type
- LXC/LXD and Docker
- Note: LXD has been supported after Container Station 2.4
- [Container Station] Docker Hub Registry
- Yes
- [Container Station] Container importing and exporting
- Yes
- [Container Station] Console mode
- Yes
- QVR Elite
- Yes
- Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
- [QVR Elite] Recording Technique
- Standard MP4 file based
- [QVR Elite] License Type
- Subscription-based
- [QVR Elite] User-defined trigger events
- Yes
- [QVR Elite] QVR Pro Client (Desktop)
- Windows, macOS, and QNAP HybridDesk Station
- [QVR Elite] QVR Pro Client (Mobile)
- Android and iOS
- [QVR Elite] Recording camera streams
- H.264
- [QVR Elite] Free built-in camera channels
- 2
- QVR Pro Client
- Yes
- [QVR Pro Client] Dynamic View Layout
- Yes
- [QVR Pro Client] Windows
- Yes
- [QVR Pro Client] Mac
- Yes
- [QVR Pro Client] HybridDesktop
- Yes
- [QVR Pro Client] iOS
- Yes
- [QVR Pro Client] Android
- Yes
- QVR Human
- Yes
- QVR Face
- Yes
- The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/
- QVR DoorAccess
- Yes
Allowances
As an international traveller you are entitled to bring a certain amount/value of goods that are free of Customs duty and exempt Goods and Services tax (GST) into New Zealand. This is called your duty free allowance and personal goods concession. It is important to review these for any purchases you make on The Mall.
Your duty free allowance entitles you to bring into New Zealand the following quantities of alcohol products free of customs duty and GST provided you are over 17 years of age. You do need to be 18 years or over to purchase.
- Up to six bottles (4.5 litres) of wine, champagne, port or sherry or
- Up to twelve cans (4.5 litres) of beer
- And three bottles (or other containers) each containing not more than 1125ml of spirits, liqueur, or other spirituous beverages
Goods other than alcohol and tobacco, whether purchased overseas or purchased duty free in New Zealand, that have a combined total value not exceeding NZ$700 may also be brought as part of your personal goods concession.
When travelling overseas there are legal limits on the amount of duty free alcohol and other goods you can take with you. These amounts will vary depending on the country you are flying into. We always recommend you check the latest limits and exemptions.
Click & Collect
Your order can be picked up at an Auckland Airport Collection Point. There is one in departures and one at arrivals in the international terminal. Alternatively, if you are arriving between 11pm and 6am you will be able to collect your order from our lockers. See map
Please bring your order confirmation email and your passport. If you are collecting from lockers you will have been sent an email with your access code, be sure to have this on you in order to collect your order.
If you’re departing Auckland Airport, we recommend that you come to the Auckland Airport Collection Point at least 60 minutes before your flight. If you miss your pickup time or your flight details have changed please let us know as soon as possible.
When you collect your order you will have the opportunity to inspect the items and sign for them.
If you need to return an item, our Collection Point team are there to help you. If you are collecting after hours please return the item to your locker and our team will be in touch as soon as possible. You may also like to view our Returns & refunds which provides information on how this works and outlines the individual retailer's returns and refunds policies.
After Hours Collections
If your order needs to be collected after the Auckland Airport Collection Point desk is closed, your order will be placed in the lockers next to the desk. All the details you will need to collect your order will be provided in your Order Confirmation and Ready to Collect Email.
