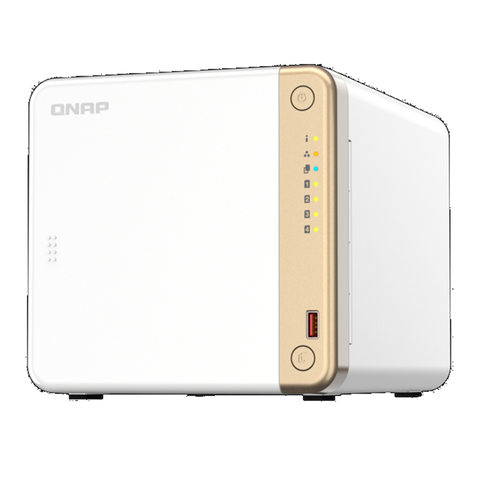

QNAP TS-462-4G Work Group / SOHO Intel Celeron Dual Core 4-Bay NAS Server
A fast and vast private cloud storage with a range of multimedia and file management applications, the TS-462 is ideal for home users to maximize their digital lifestyle. Files, data and multimedia saved on the TS-462 can be accessed from all your connected devices, including phones, computers and smart TVs. A 2.5GbE port and HDMI 2.0 port come as standard, allowing you to enjoy lag-free multimedia streaming throughout your home and directly on your TV. The TS-462 can be geared up to fit future needs, supporting two M.2 PCIe slots for Qtier auto-tiering storage technology, and can be easily expanded to fit growing data needs. The TS-462 also supports Edge TPU, allowing you to easily organize your photos based on facial and object recognition with the QuMagie app.
2.5GbE port
Immediately multiply your network speed by 2.5 times while using existing CAT5e cables.
HDMI port
4K media playback and real-time transcoding; directly watch videos using HDMI 2.0 (4K @60Hz) output.
AI-powered image recognition
Supports Edge TPU (optional purchase) for supercharged AI-powered image recognition.
Dual M.2 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately).
PCIe slot
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-462, including a Multi-Gig 10GbE/5GbE network card, a USB 3.2 Gen 2 (10Gbps) card, or a Wi-Fi 6 network card.
Expand storage capacity
Flexibly scale your total storage capacity by connecting USB expansion enclosures (please see the compatibility list).
Upgrade your home network to 2.5GbE
Wi-Fi 6 and 5G are becoming the new normal for networking, and there’s no reason why your home wired network shouldn’t also get a boost. The TS-462 comes with single 2.5GbE RJ45 LAN port which supports existing CAT5e cables. If your computers don’t have 2.5GbE ports, you can use QNAP’s USB 3.2 Gen 1 to 5GbE adapter (model name QNA-UC5G1T) to take advantage of the huge speed increase that 2.5GbE provides over standard Gigabit Ethernet. QNAP also provide affordable 2.5GbE switches and other adapters for you to take full advantage of the TS-462’s 2.5GbE connectivity.
Intel dual-core processor burst up to 2.9 GHz
The TS-462 is powered by an Intel® Celeron® N4505 dual-core processor (burst up to 2.9 GHz), and supports SATA 6 Gb/s drives. The Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of your NAS data. You can flexibly install NVMe SSDs in the M.2 PCIe slots for cache acceleration to maximize network and storage performance for data-intensive applications or enable Qtier for auto-tiered storage for higher storage efficiency.
Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-462 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
Access your NAS from anywhere
The myQNAPcloud service enables quick and easy remote access to your TS-462, allowing you to be always connected without needing to configure complex network settings. With myQNAPcloud Link you are provided with a unique domain name for your TS-462, and will automatically connect using the best method based on your network environment.
CPU
Intel® Celeron® N4505 2-core/2-thread processor, burst up to 2.9 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® UHD Graphics
Floating Point Unit
Yes
Encryption Engine
Yes(AES-NI)
Hardware-accelerated Transcoding
Yes
System Memory
4 GB RAM
4GB (Dual boot OS protection)
Drive Bay
4 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
Yes
M.2 Slot
2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support
Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
1 (2.5G/1G/100M/10M)
Wake on LAN (WOL)
Yes
Jumbo Frame
Yes
PCIe Slot
1
Slot 1: PCIe Gen 3 x2
Card dimensions for PCIe slot:190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
USB 2.0 port
2
USB 3.2 Gen 2 (10Gbps) Port
2 x Type-A
IR Sensor
Yes(Optional QNAP RM-IR004 remote control)
HDMI Output
1, HDMI 2.1
Form Factor
Tower
LED Indicators
Power/Status, LAN, USB, HDD1-4
Buttons
Power, USB copy, Reset
Dimensions (HxWxD)
168 × 170 × 226 mm
Weight (Net)
2.26 kg
Weight (Gross)
3.6 kg
Operating Temperature
0 - 40 °C (32°F - 104°F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit
90W adapter, 100-240V
Power Consumption: HDD Sleep Mode
11.3 W
Power Consumption: Operating Mode, Typical
25.98 W
Tested with drives fully populated.
Fan
1 x 120mm, 12VDC
System Warning
Buzzer
Kensington Security Slot
Yes
Max. Number of Concurrent Connections (CIFS) - with Max. Memory
1500
