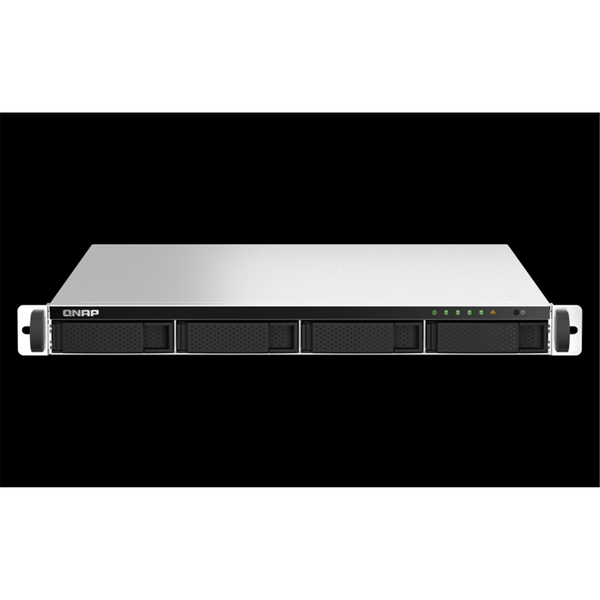

QNAP TS-464U-RP-8G Business Intel Quad Core Upto 2.9GHz, 1U 4-Bay Rackmount NAS Server,
View all QNAPSold by PB Tech
Description
QNAP TS-464U-RP-8G Business Intel Quad Core Upto 2.9GHz, 1U 4-Bay Rackmount NAS Server, 8GB Ram,Redundant PSU, 2x2.5GbE, 1X PCIe Slot, 1XHDMI, 2XUSB 3.2, 2XUSB 2.0, 3 Years Warranty, Come with 8 Camera License
QNAP TS-464U-8G External HDD/SDD Overview
The TS-464U-RP 4-Bay NAS Enclosure from QNAP features two 2.5GbE RJ45 ports and Port Trunking for up to 5 Gb/s of combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display, while a PCIe 3.0 x2 slot lets you extend NAS functionality with a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to help ensure the confidentiality of sensitive business data without affecting system performance.
The TS-464U-RP is powered by a 2.0 GHz Intel Celeron Quad-Core processor and 8GB of onboard DDR4 RAM. It supports JBOD and a variety of RAID modes, including RAID 0, 1, 5, 6, and 10, each of which offer data redundancy, speed, or a combination of both. This 4-bay enclosure has the ability to natively house both 3.5" and 2.5" SATA III and SATA II hard drives or SSDs. Using the external 10 Gb/s USB 3.2 Gen 2 Type-A, 480 Mb/s USB 2.0 Type-A, and HDMI 1.4b ports, this QNAP NAS can be connected to other QNAP devices, as well as other external drives and displays.
The TS-464U-RP 4-Bay NAS Enclosure operates on 100-240 VAC at 50-60 Hz using dual redundant 250W power supplies and stays cool using two 40mm fans. It includes an Ethernet cable, two power cords, 48 screws for 3.5" drives, 36 screws for 2.5" drives, and two hangers. Protection is provided by a limited 3-year warranty.
Quad-Core High Performance
The TS-464U-RP is powered by a 2.0 GHz Intel Celeron Quad-Core processor and 8GB of onboard DDR4 RAM, two 2.5GbE ports, and SATA III 6 Gb/s drives. The integrated Intel AES-NI encryption engine also helps protect confidential data without impacting system performance. Using one 2.5GbE port, download speeds reach up to 194 MB/s, while upload speeds max out at 230 MB/s. When using one 2.5GbE port with encryption, download speeds deliver a throughput of up to 253 MB/s, while upload speeds slightly drop to 225 MB/s.
Streamlined Large File Transfers and Video Editing with 2.5GbE
The TS-464U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing Cat 5e cables to upgrade network speeds from 1GbE to 2.5GbE. The dual 2.5GbE ports also support Port Trunking for up to 5 Gb/s transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.
Future-Proof Your IT Infrastructure for High-Speed Networks
The TS-464U-RP is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provides 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows/Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
Enhance Productivity with Multiple USB Ports
With two 10 Gb/s USB 3.2 Gen 2 Type-A ports and two 480 Mb/s USB 2.0 Type-A ports, you can quickly backup and transfer large files to/from the TS-464U-RP. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.
Abundant I/O Capabilities with PCIe 3.0 Expansion
The TS-464U-RP has a PCIe 3.0 x3 slot that allows for installing various expansion cards for expanding application potential.
25GbE/10GbE Network Cards
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.
QM2 M.2 SSD Cards
Adds M.2 NVMe SSD caching or 10GbE/2.5GbE connectivity to the TS-464U-RP for optimized performance and bandwidth.
10 Gb/s USB 3.2 Gen 2 Cards
Add extra USB ports to the TS-464U-RP.
Wireless Adapters
Install a QXP-W6-AX2000 Wi-Fi 6 wireless adapter to turn the TS-464U-RP into a wireless NAS. Or, make the TS-464U-RP a wireless access point by installing the QWA-AC2600 wireless adapters and the WirelessAP Station app.
SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-464U-RP supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier Technology empowers the TS-464U-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Direct 4K HDMI Output for Multimedia and Virtual Machine Display
The TS-464U-RP features Intel UHD Graphics that supports dual-channel hardware decoding and real-time transcoding. The HDMI 1.4b output supports up to 4K (3840 x 2160p) at 60 Hz, providing great benefits for applications like video production/editing or industrial design that demand high resolution and color realism, as well as intensive media storage, transfer, and display. By connecting the TS-464U-RP to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-464U-RP as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.
Note: The TS-464U-RP's hardware provides hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
Faster Image Identification with Integrated Intel OpenVINO AI Engine
With integrated Intel OpenVINO AI computing resources, the TS-464U-RP accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
QuMagie Photo Management
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.
QTS 5 - Fast, Smooth, and User Friendly
The TS-464U-RP comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.
Brighter and Smoother
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
Get Started with the Notice Board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and Reactive User Interface
Whether clicking buttons, switching between apps, or expanding/collapsing windows, every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
Comprehensive Backup and Disaster Recovery Solution
The TS-464U-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
PC/Laptop Backup
For Windows, install NetBak Replicator to back up your PC to your QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.
Remote Backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-464U-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
VM Backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
SaaS Backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.
Note: Minimum memory requirements are 2GB available and 4GB installed.
Cloud Backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
QuDedup Technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
Multi-Version Snapshots Mitigate Ransomware Threats
The TS-464U-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Volume and LUN Snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.
Instantly Restore Snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.
Back Up Snapshots
Multiply data protection by backing up snapshot files. Replicate volume/LUN snapshots in the TS-464U-RP to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.
All-in-One Solution for Hosting Virtual Machines and Containers
By running multiple virtual machines and containers on the TS-464U-RP, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
Container Station
Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import/export containers, and create abundant microservices.
Linux Station
Run Linux applications (including apps from the Software Center) directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.
Comprehensive Security and Privilege Settings
The TS-464U-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, and Hand TTPS connectivity, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
myQNAPcloud Secures Remote Access
myQNAPcloud allows convenient connection to the TS-464U-RP through the internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.
Simplified Privilege Settings
The TS-464U-RP supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
QuFirewall Protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
Superior Security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-464U-RP as a VPN server, and WireGuard VPN service with an easy-to-use interface for setting up a secure connection.
QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion, and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network, including QNAP NAS and VMware ESXi platforms.
Security Counselor
A security portal for the TS-464U-RP to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Malware Remover
Regularly scan your TS-464U-RP using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
File and Storage Collaboration Center
The TS-464U-RP integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides a smart NAS solution for professionally managing your files.
File Station
Manage, access, and share all the files in the TS-464U-RP and view snapshot files, all from your web browser. You can also easily mount remote NAS folders and cloud storage.
Qsync
Make any file uploaded to a TS-464U-RP available to linked devices, such as computers, laptops, and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.
Qsirch
QNAP's powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Qfiling
Automate your file organization - all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.
Smart Surveillance Solution for 24/7 Security
QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-464U-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Flexible and Economical Storage Expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-464U-RP storage as needed to accommodate data and business growth.
Attach QNAP Expansion Enclosures
Connect expansion enclosures to the TS-464U-RP and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
Mount Cloud Storage or Remote File Servers
Mount cloud storage or remote file servers to expand the capacity of the TS-464U-RP while also centrally managing files on the NAS, cloud storage, and remote devices.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
More Productivity-Boosting Apps
The TS-464U-RP provides an App Center that includes feature-rich apps to expand your NAS potential.
QuObjects
Run a high-performance S3 compatible development environment on your TS-464U-RP to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
Proxy Server
By using a high-capacity TS-464U-RP as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.
QmailAgent
Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.
Qcontactz
Centrally manage all your contacts, import contacts from Google, import/export contact information using CSV or vCard files, and enjoy an always-online database of contact information.
QuFTP
The TS-464U-RP can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.
A Health Check for Your Hard Drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.
S.M.A.R.T. and Back Block Scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
Seagate IronWolf Health Management
When using supported IronWolf or IronWolf Pro hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
Computing
CPU
2 to 2.9 GHz Quad-Core
Processor
Intel Celeron
GPU
Intel UHD Graphics
Total Installed Memory
8 GB DDR4
Flash Memory
4 GB
General
Number of Bays
4 x 2.5"/3.5"
I/O
2 x RJ45 (2.5GbE)
2 x USB-A (USB 3.1/3.2 Gen 2 (10 Gb/s))
2 x USB-A (USB 2.0 (480 Mb/s))
1 x HDMI (HDMI 1.4b)
Compatible Drive Interface
SATA II, SATA III
Media Card Slots
None
Form Factor
Rackmount (1 RU)
RAID
RAID 0, 1, 10, 5, 6, JBOD, Single
Hot-Swap Support
Yes
PCI Expansion
1 x PCIe 3.0 x2
Wake on LAN
Yes
Link Aggregation and Failover Support
Yes
Networking
Supported Protocols
AFP
CIFS/SMB
FTP
FTPS
FXP
HTTP
HTTPS
IPv4
IPv6
L2TP/IPSec
NFS
OpenVPN
PPTP
SFTP
SNMP v2
SNMP v3
SSH
SSL
TFTP
Telnet
iSCSI Target
256
Max Concurrent Connections
1500
Max Folders
512
Max Groups
512
Max User Accounts
4096
Max Volume Number
128
Software
Installed Operating System
QTS 5.0.0
Supported File Systems
Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility
macOS 10.10 or Later
Windows 11
Windows 10
Windows 8
Windows 7
Windows Server 2019
Windows Server 2016
Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
Ubuntu 14.4 or Later
CentOS 7 or Later
Linux
UNIX
*As of May, 2022: Check with manufacturer for the most up-to-date compatibility
Supported Browsers
Chrome, Edge, Firefox, Safari
Supported Languages
Brazilian Portuguese
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption
256-Bit AES, AES-NI
VPN Client Connections
100
Electrical
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Source
Internal Power Supply
Power Consumption
51.404 W (Typical)
37.469 W (Standby)
PSU Wattage
2 x 250 W (Supports Redundancy)
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
5 to 95% (Non-Condensing)
Storage Temperature
-4 to 158°F / -20 to 70°C
Physical
Status Monitoring
LED Indicator
Audible Alarm
Yes
Cooling
2 x 40 mm Fans
Built-In Speakers
None
Dimensions
19.05 x 19 x 1.7" / 48.39 x 48.3 x 4.3 cm
Weight
17.9 lb / 8.1 kg
QNAP TS-464U-8G External HDD/SDD Overview
The TS-464U-RP 4-Bay NAS Enclosure from QNAP features two 2.5GbE RJ45 ports and Port Trunking for up to 5 Gb/s of combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display, while a PCIe 3.0 x2 slot lets you extend NAS functionality with a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to help ensure the confidentiality of sensitive business data without affecting system performance.
The TS-464U-RP is powered by a 2.0 GHz Intel Celeron Quad-Core processor and 8GB of onboard DDR4 RAM. It supports JBOD and a variety of RAID modes, including RAID 0, 1, 5, 6, and 10, each of which offer data redundancy, speed, or a combination of both. This 4-bay enclosure has the ability to natively house both 3.5" and 2.5" SATA III and SATA II hard drives or SSDs. Using the external 10 Gb/s USB 3.2 Gen 2 Type-A, 480 Mb/s USB 2.0 Type-A, and HDMI 1.4b ports, this QNAP NAS can be connected to other QNAP devices, as well as other external drives and displays.
The TS-464U-RP 4-Bay NAS Enclosure operates on 100-240 VAC at 50-60 Hz using dual redundant 250W power supplies and stays cool using two 40mm fans. It includes an Ethernet cable, two power cords, 48 screws for 3.5" drives, 36 screws for 2.5" drives, and two hangers. Protection is provided by a limited 3-year warranty.
Quad-Core High Performance
The TS-464U-RP is powered by a 2.0 GHz Intel Celeron Quad-Core processor and 8GB of onboard DDR4 RAM, two 2.5GbE ports, and SATA III 6 Gb/s drives. The integrated Intel AES-NI encryption engine also helps protect confidential data without impacting system performance. Using one 2.5GbE port, download speeds reach up to 194 MB/s, while upload speeds max out at 230 MB/s. When using one 2.5GbE port with encryption, download speeds deliver a throughput of up to 253 MB/s, while upload speeds slightly drop to 225 MB/s.
Streamlined Large File Transfers and Video Editing with 2.5GbE
The TS-464U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing Cat 5e cables to upgrade network speeds from 1GbE to 2.5GbE. The dual 2.5GbE ports also support Port Trunking for up to 5 Gb/s transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.
Future-Proof Your IT Infrastructure for High-Speed Networks
The TS-464U-RP is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provides 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows/Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
Enhance Productivity with Multiple USB Ports
With two 10 Gb/s USB 3.2 Gen 2 Type-A ports and two 480 Mb/s USB 2.0 Type-A ports, you can quickly backup and transfer large files to/from the TS-464U-RP. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.
Abundant I/O Capabilities with PCIe 3.0 Expansion
The TS-464U-RP has a PCIe 3.0 x3 slot that allows for installing various expansion cards for expanding application potential.
25GbE/10GbE Network Cards
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.
QM2 M.2 SSD Cards
Adds M.2 NVMe SSD caching or 10GbE/2.5GbE connectivity to the TS-464U-RP for optimized performance and bandwidth.
10 Gb/s USB 3.2 Gen 2 Cards
Add extra USB ports to the TS-464U-RP.
Wireless Adapters
Install a QXP-W6-AX2000 Wi-Fi 6 wireless adapter to turn the TS-464U-RP into a wireless NAS. Or, make the TS-464U-RP a wireless access point by installing the QWA-AC2600 wireless adapters and the WirelessAP Station app.
SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-464U-RP supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier Technology empowers the TS-464U-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Direct 4K HDMI Output for Multimedia and Virtual Machine Display
The TS-464U-RP features Intel UHD Graphics that supports dual-channel hardware decoding and real-time transcoding. The HDMI 1.4b output supports up to 4K (3840 x 2160p) at 60 Hz, providing great benefits for applications like video production/editing or industrial design that demand high resolution and color realism, as well as intensive media storage, transfer, and display. By connecting the TS-464U-RP to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-464U-RP as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.
Note: The TS-464U-RP's hardware provides hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
Faster Image Identification with Integrated Intel OpenVINO AI Engine
With integrated Intel OpenVINO AI computing resources, the TS-464U-RP accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
QuMagie Photo Management
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.
QTS 5 - Fast, Smooth, and User Friendly
The TS-464U-RP comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.
Brighter and Smoother
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
Get Started with the Notice Board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and Reactive User Interface
Whether clicking buttons, switching between apps, or expanding/collapsing windows, every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
Comprehensive Backup and Disaster Recovery Solution
The TS-464U-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
PC/Laptop Backup
For Windows, install NetBak Replicator to back up your PC to your QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.
Remote Backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-464U-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
VM Backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
SaaS Backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.
Note: Minimum memory requirements are 2GB available and 4GB installed.
Cloud Backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
QuDedup Technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
Multi-Version Snapshots Mitigate Ransomware Threats
The TS-464U-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Volume and LUN Snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.
Instantly Restore Snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.
Back Up Snapshots
Multiply data protection by backing up snapshot files. Replicate volume/LUN snapshots in the TS-464U-RP to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.
All-in-One Solution for Hosting Virtual Machines and Containers
By running multiple virtual machines and containers on the TS-464U-RP, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
Container Station
Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import/export containers, and create abundant microservices.
Linux Station
Run Linux applications (including apps from the Software Center) directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.
Comprehensive Security and Privilege Settings
The TS-464U-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, and Hand TTPS connectivity, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
myQNAPcloud Secures Remote Access
myQNAPcloud allows convenient connection to the TS-464U-RP through the internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.
Simplified Privilege Settings
The TS-464U-RP supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
QuFirewall Protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
Superior Security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-464U-RP as a VPN server, and WireGuard VPN service with an easy-to-use interface for setting up a secure connection.
QuWAN SD-WAN
To facilitate digital transformation, multi-site expansion, and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network, including QNAP NAS and VMware ESXi platforms.
Security Counselor
A security portal for the TS-464U-RP to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Malware Remover
Regularly scan your TS-464U-RP using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
File and Storage Collaboration Center
The TS-464U-RP integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides a smart NAS solution for professionally managing your files.
File Station
Manage, access, and share all the files in the TS-464U-RP and view snapshot files, all from your web browser. You can also easily mount remote NAS folders and cloud storage.
Qsync
Make any file uploaded to a TS-464U-RP available to linked devices, such as computers, laptops, and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.
Qsirch
QNAP's powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Qfiling
Automate your file organization - all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.
Smart Surveillance Solution for 24/7 Security
QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-464U-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Flexible and Economical Storage Expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-464U-RP storage as needed to accommodate data and business growth.
Attach QNAP Expansion Enclosures
Connect expansion enclosures to the TS-464U-RP and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
Mount Cloud Storage or Remote File Servers
Mount cloud storage or remote file servers to expand the capacity of the TS-464U-RP while also centrally managing files on the NAS, cloud storage, and remote devices.
Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
More Productivity-Boosting Apps
The TS-464U-RP provides an App Center that includes feature-rich apps to expand your NAS potential.
QuObjects
Run a high-performance S3 compatible development environment on your TS-464U-RP to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
Proxy Server
By using a high-capacity TS-464U-RP as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.
QmailAgent
Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.
Qcontactz
Centrally manage all your contacts, import contacts from Google, import/export contact information using CSV or vCard files, and enjoy an always-online database of contact information.
QuFTP
The TS-464U-RP can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.
A Health Check for Your Hard Drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.
S.M.A.R.T. and Back Block Scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
Seagate IronWolf Health Management
When using supported IronWolf or IronWolf Pro hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
Computing
CPU
2 to 2.9 GHz Quad-Core
Processor
Intel Celeron
GPU
Intel UHD Graphics
Total Installed Memory
8 GB DDR4
Flash Memory
4 GB
General
Number of Bays
4 x 2.5"/3.5"
I/O
2 x RJ45 (2.5GbE)
2 x USB-A (USB 3.1/3.2 Gen 2 (10 Gb/s))
2 x USB-A (USB 2.0 (480 Mb/s))
1 x HDMI (HDMI 1.4b)
Compatible Drive Interface
SATA II, SATA III
Media Card Slots
None
Form Factor
Rackmount (1 RU)
RAID
RAID 0, 1, 10, 5, 6, JBOD, Single
Hot-Swap Support
Yes
PCI Expansion
1 x PCIe 3.0 x2
Wake on LAN
Yes
Link Aggregation and Failover Support
Yes
Networking
Supported Protocols
AFP
CIFS/SMB
FTP
FTPS
FXP
HTTP
HTTPS
IPv4
IPv6
L2TP/IPSec
NFS
OpenVPN
PPTP
SFTP
SNMP v2
SNMP v3
SSH
SSL
TFTP
Telnet
iSCSI Target
256
Max Concurrent Connections
1500
Max Folders
512
Max Groups
512
Max User Accounts
4096
Max Volume Number
128
Software
Installed Operating System
QTS 5.0.0
Supported File Systems
Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility
macOS 10.10 or Later
Windows 11
Windows 10
Windows 8
Windows 7
Windows Server 2019
Windows Server 2016
Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
Ubuntu 14.4 or Later
CentOS 7 or Later
Linux
UNIX
*As of May, 2022: Check with manufacturer for the most up-to-date compatibility
Supported Browsers
Chrome, Edge, Firefox, Safari
Supported Languages
Brazilian Portuguese
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption
256-Bit AES, AES-NI
VPN Client Connections
100
Electrical
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Source
Internal Power Supply
Power Consumption
51.404 W (Typical)
37.469 W (Standby)
PSU Wattage
2 x 250 W (Supports Redundancy)
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
5 to 95% (Non-Condensing)
Storage Temperature
-4 to 158°F / -20 to 70°C
Physical
Status Monitoring
LED Indicator
Audible Alarm
Yes
Cooling
2 x 40 mm Fans
Built-In Speakers
None
Dimensions
19.05 x 19 x 1.7" / 48.39 x 48.3 x 4.3 cm
Weight
17.9 lb / 8.1 kg
Allowances
As an international traveller you are entitled to bring a certain amount/value of goods that are free of Customs duty and exempt Goods and Services tax (GST) into New Zealand. This is called your duty free allowance and personal goods concession. It is important to review these for any purchases you make on The Mall.
Your duty free allowance entitles you to bring into New Zealand the following quantities of alcohol products free of customs duty and GST provided you are over 17 years of age. You do need to be 18 years or over to purchase.
- Up to six bottles (4.5 litres) of wine, champagne, port or sherry or
- Up to twelve cans (4.5 litres) of beer
- And three bottles (or other containers) each containing not more than 1125ml of spirits, liqueur, or other spirituous beverages
Goods other than alcohol and tobacco, whether purchased overseas or purchased duty free in New Zealand, that have a combined total value not exceeding NZ$700 may also be brought as part of your personal goods concession.
When travelling overseas there are legal limits on the amount of duty free alcohol and other goods you can take with you. These amounts will vary depending on the country you are flying into. We always recommend you check the latest limits and exemptions.
Click & Collect
Your order can be picked up at an Auckland Airport Collection Point. There is one in departures and one at arrivals in the international terminal. Alternatively, if you are arriving between 11pm and 6am you will be able to collect your order from our lockers. See map
Please bring your order confirmation email and your passport. If you are collecting from lockers you will have been sent an email with your access code, be sure to have this on you in order to collect your order.
If you’re departing Auckland Airport, we recommend that you come to the Auckland Airport Collection Point at least 60 minutes before your flight. If you miss your pickup time or your flight details have changed please let us know as soon as possible.
When you collect your order you will have the opportunity to inspect the items and sign for them.
If you need to return an item, our Collection Point team are there to help you. If you are collecting after hours please return the item to your locker and our team will be in touch as soon as possible. You may also like to view our Returns & refunds which provides information on how this works and outlines the individual retailer's returns and refunds policies.
After Hours Collections
If your order needs to be collected after the Auckland Airport Collection Point desk is closed, your order will be placed in the lockers next to the desk. All the details you will need to collect your order will be provided in your Order Confirmation and Ready to Collect Email.
