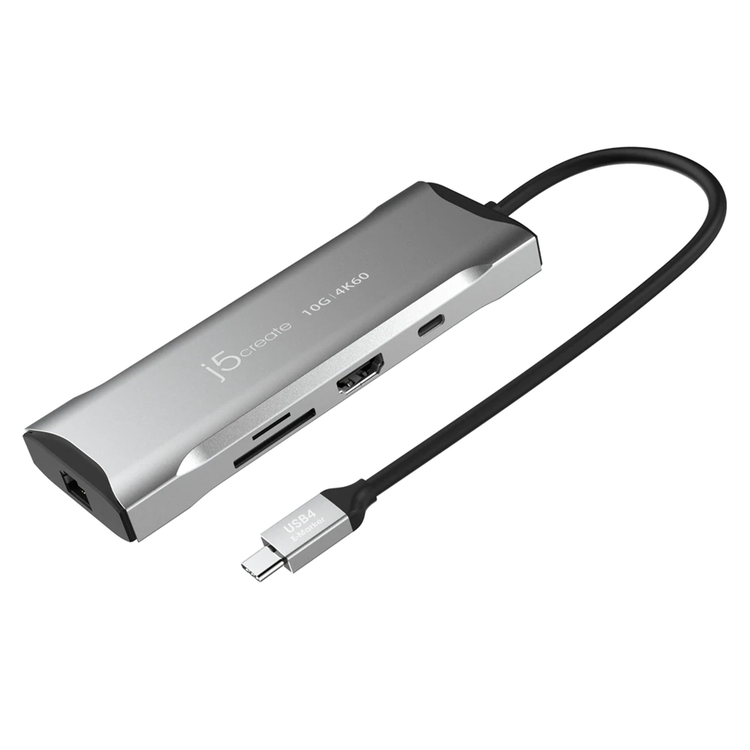

J5create USB-C 4K Display Mini Docking Station, 1x 4K HDMI, 10Gbps Power Delivery
Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.
This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.
The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
- Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backward compatible with USB™ 3.2/3.1
- Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
- Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate
- Extending one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS
- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- Charge and power connected laptop and peripherals with 100W Power Delivery
- SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- Easily add a wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required
Host Connector
1 - USB-C® Male
Video Output
1 - HDMI™ Female
Power Source
Bus-powered or self-powered
Network Interface
RJ45 (Gigabit Ethernet)
Audio Supported
Yes
Ports
• 1 - USB-C® SuperSpeed 10Gbps
• 2 - USB™ Type-A SuperSpeed 10Gbps
• 1 - USB-C® Power Delivery 3.0 & USB™ 5Gbps data transfer
• 1 - 4K HDMI™
• 1 - SD™ & microSD™ 4.0 memory card reader/writer
• 1 - RJ45 Gigabit Ethernet
Performance
Maximum Display Resolution
3840 x 2160
Maximum Display Refresh Rate
3840 x 2160 @ 60 Hz
2560 x 1440 @ 120 Hz
1920 x 1080 @ 144 Hz
(Windows®)
Maximum Data Transfer Rate
10Gbps
Displays Supported
1
Compatible Networks
10/100/1000
Audio Channel
2.1 via HDMI™
Power
Power Delivery
Up to 100W via USB-C®
Power Consumption
= 400 mA
Input Current
Up to 5A
Input Voltage
Up to 20V
Output Current
Up to 4.25A
Output Voltage
Up to 20V
Physical Specifications
Color
Space Grey
Enclosure Type
Aluminum
Cable Length
7.87 in. (200 mm)
Product Height
0.62 in. (16 mm)
Product Width
5.4 in. (138 mm)
Product Depth
1.96 in. (50 mm)
Product Weight
3.77 oz (107g)
Storage Temperature
0 to 155°F (-17 to 68°C)
Storage Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (-1 to 41°C)
Operating Humidity
< 85% non-condensing
