J5create USB-C 100W Power Delivery Dual HDMI Docking Station, 1x 4K HDMI,

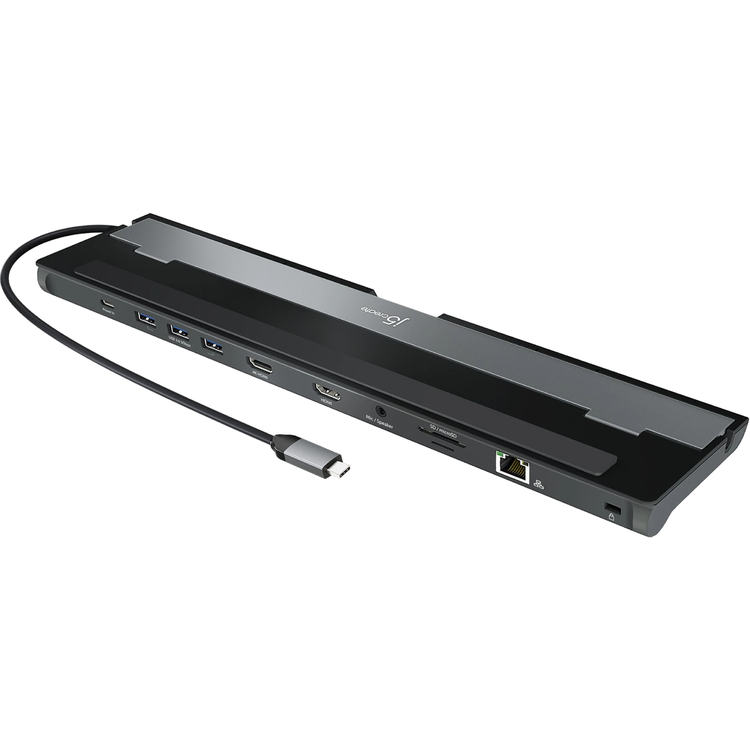

USB-C® Dual HDMI™ Docking Station
DisplayPort™ Alt Mode / USB™ Power Delivery Compatible
This dual display docking station adds dual HDMI™ monitors, with resolution support up to 4K (3840 x 2160) on one display and up to 2K (2048 x1152) or 1080p on the other display. You can also use your laptop screen for three displays in total, making it easy to access multiple applications at once.
This USB™ 3.0 docking station comes equipped with all the connections you need including three USB™ 3.0 ports, a RJ45 Gigabit Ethernet port, memory card reader/writer, combo audio jack, and a USB-C® port supporting up to 100W Power Delivery. It also includes a security lock slot to protect against theft, making it perfect for use in business organizations. With its slim and heat-dissipating design along with the double-sided cable storage compartment, this USB-C® dock ensures an easy connection regardless of your USB-C® port's location and can easily fit into any workspace environment.
10 Ports In One Sleek Design For All Your Needs
Dual HDMI™ Displays
Create a dual-monitor set up and boost your productivity. One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 2K.
Extend or Mirror
Connect up to 2 external monitors (driver required). Your laptop display, plus the 2 external monitors, gives you a total of 3 monitors.
100W Power Delivery Pass-Through
Power and charge your laptop, while powering all devices connected to your laptop and the docking station with a single power adapter (not included).
SD™/microSD™ Card Reader
3.5 mm Combo Audio Jack
RJ45 Gigabit Ethernet
Cable Storage With Dual Openings
Keep your workspace organized with the double-sided cable storage compartment, giving you the flexibility to place the cable anyway you like.
Connect Your Devices
Features three SuperSpeed USB™ 5Gbps Type-A ports for your USB™ peripherals.
Heat-Eliminating Design
Transform your laptop into a workstation that supports all of your peripherals without the worry of overheating.
Anti-Theft Protection
Equipped with a security slot to protect against theft, making it perfect for use in business organizations.
Universal Compatibility
Compatible with Thunderbolt™ 3, the universal USB-C® connection works with Windows® and macOS®.
System Requirements
Microsoft® Windows® 10
macOS® 10.11 or later
Intel® HD Graphics 4000/ ATI™ HD 7xxx/ NVIDIA® 5XXM or higher
Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your computer for more information about your device
Extended Monitor: (More powerful processors recommended for multiple displays)
- One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core™ i5 Quad Core
RAM: 4 GB memory or higher
- Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core™ i7 Quad Core
RAM: 8 GB memory or higher
Hardware
Audio Supported
Yes
Host Connector
USB-C® Male
Network Interface
RJ45 (Gigabit Ethernet)
Ports
1 - USB-C® Power Delivery 3.0
3 - USB™ 3.0 Type-A
1 - 4K HDMI™
1 - 2K/1080p HDMI™
1 - SD™ & microSD™ memory card reader/writer
1 - RJ45 Gigabit Ethernet
1 - 3.5 mm combo audio jack
Power Source
Bus-powered
Video Output
2 - HDMI™ Female
Performance
Audio Channel
2.1 via HDMI™ / 3.5 mm Aux
Compatible Networks
10/100/1000 Mbps
Displays Supported
2
Max Data Transfer Rate
5 Gbps
Max Display Refresh Rate
4K @ 30 Hz
2K @ 60 Hz
Max Display Resolution
Dual Displays:
3840 x 2160 and 2048 x 1152 / 1920 x 1080
Single Display:
3840 x 2160
Power
Input Current
5A
Input Voltage
20V
Output Current
5A
Output Voltage
20V
Power Consumption
= 900 mA
Power Delivery
Up to 100W via USB-C®
Physical Specifications
Cable Length
1.48 ft (45 cm)
Color
Grey & Black
Enclosure Type
Aluminum
Operating Humidity
< 85% non-condensing
Operating Temperature
32 to 118°F (0 to 48°C)
Product Depth
13.79 in. (350.18 mm)
Product Height
0.87 in. (21.98 mm)
Product Weight
10.79 oz (306 g)
Product Width
3.25 in. (82.46 mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
14 to 149°F (-10 to 65°C)
Other
Special Notes
A 4K-capable display is required for obtaining the 3840 x 2160 resolution
If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
The dock can connect to a USB-C® port that doesn’t support Power Delivery but it will not pass power through the connected device
If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time
Package Contents
1 - JCD542 USB-C® Dual HDMI™ Docking Station
1 - Quick Installation Guide (QIG)
