J5create USB-C 100W Power Delivery Triple Monitor Docking Station, 2x 4K
- USB-C™ power delivery 100W pass-through
- USB-C™ downstream port Gen 1 5G x 1
- Power delivery adapter in port x 1
- USB™ Type-A downstream port Gen 1 5G x 3
- DisplayPort™ Alt mode supported
- DisplayPort™/HDMI™ output 4K @ 30 Hz
- USB™ graphic HDMI™ resolution 4K @ 30 Hz
- VGA Resolution 1920 x 1080 dual output
- RJ45 Gigabit Ethernet
- SD™/microSD™ card slots allow for external memory access
- Combo audio jack mic/speaker
- Cable length 1.5 ft/45 cm

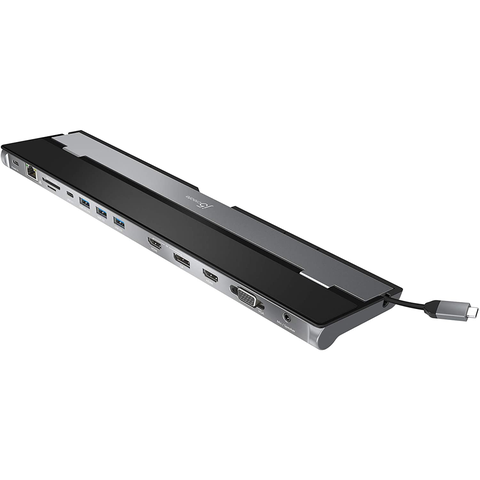

The j5create USB-C™ Triple Monitor Docking Station provides extra connectivity from your computer and extends to up to three monitors through HDMI™ , VGA and DisplayPort™ / HDMI™ . This docking station includes a NB stand that assists with heat dissipation and with its flexible USB-C™ cord, keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection. These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smart phone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smart phone while using the adapter.
USB-C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. USB-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB-C™ offers greater power delivery and faster data transfer rates of up to 5 Gbps.
Interface
Host Interface
USB-C™ male connector with cable
Video Interface
HDMI™ female connector x 2
DisplayPort™ female connector x 1
VGA female connector x 1
Ethernet Port
RJ45 female connector (Gigabit Ethernet) x 1
USB™ Port
USB™ Type-A 3.1 5G female connector x 3
Card Slots
SD™ 3.0 x 1 Slot
microSD™ 3.0 x 1 Slot
Combo Audio Jack
Microphone and speaker
Power
PowerMode
Bus-powered or self-powered
HDMI™
Display resolution: 4K @ 30 Hz
VGA
Display resolution: 1920 x 1080 @ 60 Hz
USB-C™
Power delivery 3.0 x 1
USB-C™ 3.1 port x 1
USB™
USB™ Type-A 3.1 port x 3 (USB™ 3.1 Gen 1/5 Gbps)
BC 1.2 port x 1
Ethernet
Transfer Rate:
1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)
IEEE:
IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Modes:
• Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet™ or Microsoft® wakeup frame
• Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
Physical Specifications
Dimensions
Main body:
3.24 (W) x 0.92 (H) x 13.78 (D) in.
82.5 (W) x 23.4 (H) x 350 (D) mm
USB-C™ cable length: 1.5 ft/450 mm
Weight
Approximately: 0.66 lbs./300g
Environmental
Storage Temperature
-10 – 65°C
Storage Humidity
< 85% non-condensing
Operation Temperature
0 – 40°C
Operation Humidity
< 85% non-condensing
