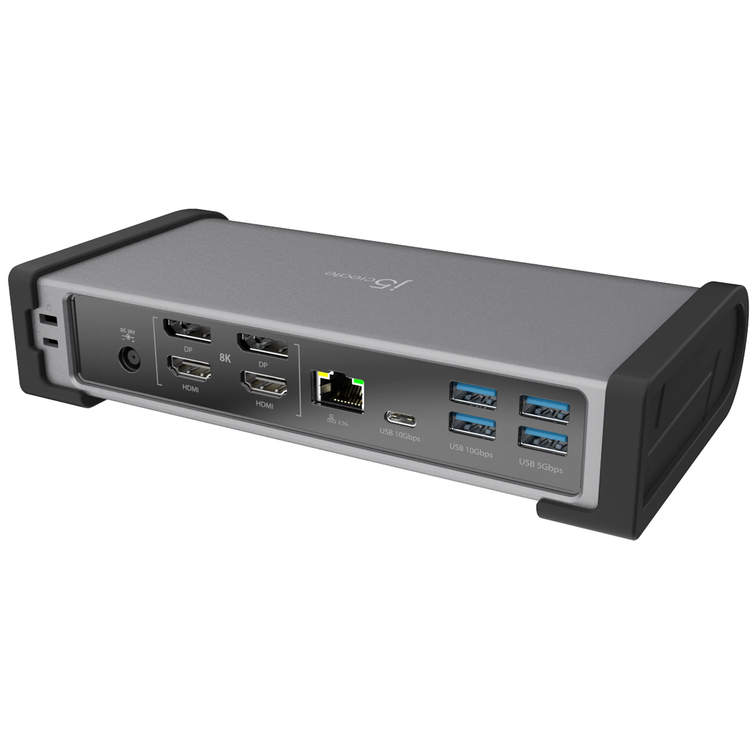

JTD568 Thunderbolt™ 4 Quad Display Docking Station
This Thunderbolt™ 4 Quad display Docking Station turns your Windows® laptop or Mac® into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB™ 3.2 ports, and a USB-C® 3.2 port, this docking station is perfect for Thunderbolt™ 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt™ 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD™/microSD™ 4.0 memory card reader/writer, and combo audio jack for maximum productivity.
All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!
- Providing the ultimate connectivity for Thunderbolt™ 4 laptops
- Intel® Thunderbolt™ 4 certified for reliability and compatibility
- Providing ultimate connectivity and ultra-high data transfer speeds
- Supports dual 4K @60Hz displays or one high-resolution 8K display with crystal clear image quality
- Supports up to quad or triple 4K displays, dual 5K displays, or a single 8K display with crystal clear image quality
- Perfect for MacBook® and Windows® laptops that support Thunderbolt™ 4
- Power adapter 135W AC adapter with up to 98W PD charge
15-in-1 Functions
Providing the ultimate connectivity for Thunderbolt™ 4 laptops
High Quality Video Experience with 8K 60Hz Resolution
Quadruple Efficiency With Quad 4K60Hz Display
Comes with 2 HDMI™ and 2 DisplayPort™
Provides A Full Range Of Connections
Extreme Speed of 10Gbps for Maximum Performance
Hyper-Fast 2.5 Multi-Gig Ethernet Port
Built-in SD™ & microSD™ 4.0 Card Reader
Supports up to UHS-II 312 MB/s transfer speed
High-Speed Charging
PD 98W and USB™ BC1.2 quick-charging capabilities for your laptop and mobile device
K-Slot Anti-Theft Protection For Business Or Institutional Environments
Wide Compatibility
Perfect for Windows® and MacBook® laptops that support Thunderbolt™ 4
Package Contents
Hardware
Host Connector
1 - Thunderbolt™ 4 Female (Host)
Video Output
2- HDMI™ 2.1
2- DisplayPort™ 1.4
Power Source
Self-powered
Network Interface
RJ45 (2.5 Gigabit Ethernet)
Audio Supported
Yes
Ports
1 - USB-C® Power Delivery 98W (Host)
2 - HDMI™ 2.1
2 - DisplayPort™ 1.4
1 - USB-C® 10Gbps
3 - USB™ 3.2 Type-A Gen 2 10Gbps
2 - USB™ 3.2 Type-A Gen 1 5Gbps
1 - USB™ 2.0 Type-A with BC1.2 1 - SD™/microSD™ 4.0 UHS-II 312 MB/s memory card reader/writer
1 - 3.5 mm combo audio jack
1 - RJ45 2.5 Gigabit Ethernet
Performance
Maximum Display Resolution
Single Display:
-7860 x 4320 @ 60 Hz
-5120 x 2880 @ 60Hz
-3840 x 2160 @ 120 Hz
-2560 x 1440 @ 170 Hz
-1920 x 1080 @ 240 Hz
Dual Display:
-5120 x 2880 @ 60 Hz + 5120 x 2880 @ 60 Hz
Triple Display:
-3840 x 2160 @ 60Hz + 3840 x 2160 @ 60 Hz + 3840 + 3840 x 2160 @ 60 Hz
Quad Display:
-3840 x 2160 @ 60Hz + 3840 x 2160 @ 60 Hz + 3840 @ 60 Hz + 3840 x 2160 @ 60 Hz
Maximum Data Transfer Rate
40Gbps
Displays Supported
4
Compatible Networks
10/100/1000/2500 Base-T, auto-negotiating
Audio Channel
3.5 combo audio jack / HDMI™ / DisplayPort™
Power
Power Delivery
98W (Max)
AC Current
6.75A
AC Input
135W
AC Voltage
20V
Physical Specifications
Color
Dark / Space Grey
Enclosure Type
Aluminum
Cable Length
Thunderbolt™ 4 Cable: 2.6 ft / 80 cm
Product Height
1.69 in / 43 mm
Product Width
7.91 in / 201mm
Product Depth
4.29 in / 109mm
Product Weight
24 oz / 681 g
Storage Temperature
14 to 149°F (-10 to 65°C)
Storage Humidity
< 85% non-condensing
Operating Temperature
32 to 118°F (0 to 48°C)
Operating Humidity
< 85% non-condensing
Package Contents
Contents
1 - JTD568 Thunderbolt™ 4 Quad Display Docking Station
1 - 135W AC adapter with up to 96W PD charge
1 - Thunderbolt™ 4 Cable (2.6 ft / 80 cm)
1 - Quick Installation Guide (QIG)
