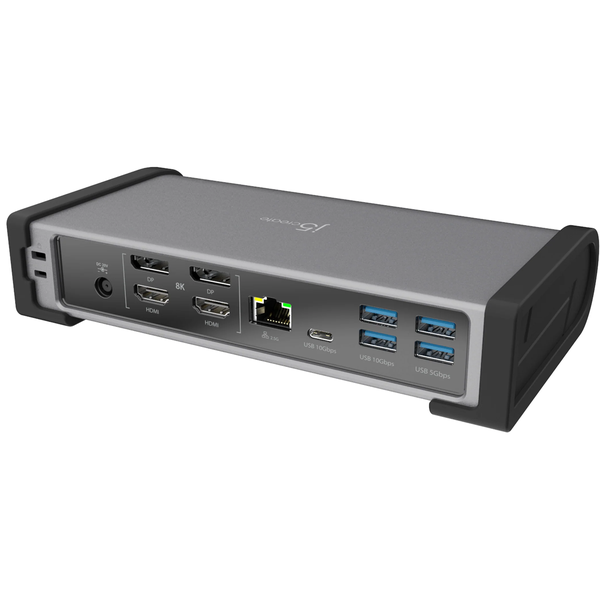

JTD568 Thunderbolt™ 4 Quad Display Docking Station This Thunderbolt™ 4 Quad display Docking Station turns your Windows® laptop or Mac® into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB™ 3.2 ports, and a USB-C® 3.2 port, this docking station is perfect for Thunderbolt™ 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt™ 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD™/microSD™ 4.0 memory card reader/writer, and combo audio jack for maximum productivity. All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive! -
Providing the ultimate connectivity for Thunderbolt™ 4 laptops-
Intel® Thunderbolt™ 4 certified for reliability and compatibility-
Providing ultimate connectivity and ultra-high data transfer speeds-
Supports dual 4K @60Hz displays or one high-resolution 8K display with crystal clear image quality-
Supports up to quad or triple 4K displays, dual 5K displays, or a single 8K display with crystal clear image quality-
Perfect for MacBook® and Windows® laptops that support Thunderbolt™ 4-
Power adapter 135W AC adapter with up to 98W PD charge
15-in-1 Functions Providing the ultimate connectivity for Thunderbolt™ 4 laptops
High Quality Video Experience with 8K 60Hz Resolution
Quadruple Efficiency With Quad 4K60Hz Display Comes with 2 HDMI™ and 2 DisplayPort™
Provides A Full Range Of Connections
Extreme Speed of 10Gbps for Maximum Performance
Hyper-Fast 2.5 Multi-Gig Ethernet Port
Built-in SD™ &; microSD™ 4.0 Card Reader Supports up to UHS-II 312 MB/s transfer speed
High-Speed Charging PD 98W and USB™ BC1.2 quick-charging capabilities for your laptop and mobile device
K-Slot Anti-Theft Protection For Business Or Institutional Environments
Wide Compatibility Perfect for Windows® and MacBook® laptops that support Thunderbolt™ 4
Package Contents
- Host Connector
- 1 - Thunderbolt™ 4 Female (Host)
- Video Output
- 2- HDMI™ 2.1
- 2- DisplayPort™ 1.4
- Power Source
- Self-powered
- Network Interface
- RJ45 (2.5 Gigabit Ethernet)
- Audio Supported
- Yes
- Ports
- 1 - USB-C® Power Delivery 98W (Host)
- 2 - HDMI™ 2.1
- 2 - DisplayPort™ 1.4
- 1 - USB-C® 10Gbps
- 3 - USB™ 3.2 Type-A Gen 2 10Gbps
- 2 - USB™ 3.2 Type-A Gen 1 5Gbps
- 1 - USB™ 2.0 Type-A with BC1.2 1 - SD™/microSD™ 4.0 UHS-II 312 MB/s memory card reader/writer
- 1 - 3.5 mm combo audio jack
- 1 - RJ45 2.5 Gigabit Ethernet
- Maximum Display Resolution
- Single Display:
- -7860 x 4320 @ 60 Hz
- -5120 x 2880 @ 60Hz
- -3840 x 2160 @ 120 Hz
- -2560 x 1440 @ 170 Hz
- -1920 x 1080 @ 240 Hz
- Dual Display:
- -5120 x 2880 @ 60 Hz + 5120 x 2880 @ 60 Hz
- Triple Display:
- -3840 x 2160 @ 60Hz + 3840 x 2160 @ 60 Hz + 3840 + 3840 x 2160 @ 60 Hz
- Quad Display:
- -3840 x 2160 @ 60Hz + 3840 x 2160 @ 60 Hz + 3840 @ 60 Hz + 3840 x 2160 @ 60 Hz
- Maximum Data Transfer Rate
- 40Gbps
- Displays Supported
- 4
- Compatible Networks
- 10/100/1000/2500 Base-T, auto-negotiating
- Audio Channel
- 3.5 combo audio jack / HDMI™ / DisplayPort™
- Power Delivery
- 98W (Max)
- AC Current
- 6.75A
- AC Input
- 135W
- AC Voltage
- 20V
- Color
- Dark / Space Grey
- Enclosure Type
- Aluminum
- Cable Length
- Thunderbolt™ 4 Cable: 2.6 ft / 80 cm
- Product Height
- 1.69 in / 43 mm
- Product Width
- 7.91 in / 201mm
- Product Depth
- 4.29 in / 109mm
- Product Weight
- 24 oz / 681 g
- Storage Temperature
- 14 to 149°F (-10 to 65°C)
- Storage Humidity
- < 85% non-condensing
- Operating Temperature
- 32 to 118°F (0 to 48°C)
- Operating Humidity
- < 85% non-condensing
- Contents
- 1 - JTD568 Thunderbolt™ 4 Quad Display Docking Station
- 1 - 135W AC adapter with up to 96W PD charge
- 1 - Thunderbolt™ 4 Cable (2.6 ft / 80 cm)
- 1 - Quick Installation Guide (QIG)
