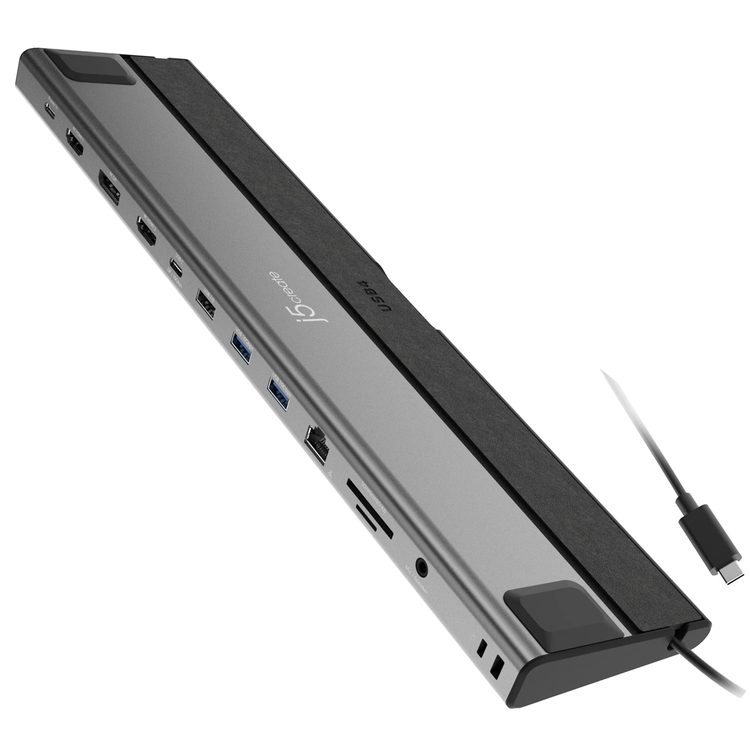

JCD554 USB4® Triple 4K Display Docking Station
This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution.
With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™ , HDMI™ or USB-C® and access data faster without affecting system performance.
Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.
12 Functions In One Sleek Design For All Your Needs
Supports Up to Triple 4K60 Display For Improved Productivity
It's recommended to connect to Thunderbolt™ 4 or USB4® computers for the best performance.
Latest Intel® USB4® High-Performance Controller
Include A USB-C® Port Supports 4K60 Display And 10Gbps Transfer Speed
Supports USB™ 3.2 Gen 2 10Gbps Ultra-High Speed
Connect Your Peripherals Without Hassle
Integrate A Ultra-High Speed SD™/ microSD™ 4.0 Card Reader
Supports A Gigabit Ethernet for Faster And More Stable Internet Connection
Offers Powerful Pass-Through Charging For Your Laptop
Premium Aluminum Construction with Exquisite Leather Craftsmanship
Equipped with a K-Slot To Protect Against Theft
Cable Storage With Dual Openings, Allows You To Connect A Laptop With Ease
Compatible with Thunderbolt™ 4 and USB4®, Works With Windows® and macOS®
Elevate your workspace with this perfect companion for optimal productivity
Hardware
Audio supportedYeshost connector
1 - USB4® Male
Network interface
RJ45 (Gigabit Ethernet)
Ports
1 - USB-C® 10Gbps with DP™ Alt mode
1 - USB™ Type-A USB™ 2.0 (480 Mbps)
2 - USB™ Type-A 3.2 Gen 2 (10Gbps)
1 - 4K DisplayPort™
2 - 4K HDMI™
1 - SD™ / microSD™ 4.0 Card
1 - Gigabit Ethernet
1 - USB-C® Power Delivery 3.0
1 - 3.5mm Audio combo
Power source
Bus-powered or self-powered
Video output
1 - DisplayPort™ Female
2 - HDMI™ Female
1 - USB-C® with DisplayPort™ Alternate Mode
Performance
Audio channe
l2.1 via HDMI™ / DP™ / USB-C®
Compatible networks
Yes
Displays supported
3
Max data transfer rate
10Gbps
Max display refresh rate
4K @ 60 Hz
Max display resolution
Single Display with DSC:
- 3840 x 2160 @ 60 Hz
- 2560 x 1440 @ 120Hz / 144 Hz
- 1920 x 1080 @ 144 Hz
Dual Display with DSC:
- 3840 x 2160 @ 60 Hz
- 3840 x 2160 @ 60 Hz
Triple Display with DSC:
Windows® (TBT4 / USB4® + MST)
- 3840 x 2160 @ 60 Hz
- 3840 x 2160 @ 60 Hz
- 3840 x 2160 @ 60 Hz
Power
Input current
Up to 3A
Input voltage
Up to 20V
Output current
Up to 4.25A
Output voltage
Up to 20V
Power consumption
900 mA
Power delivery
Up to 85W via USB-C®
Physical Specifications
Cable length
1.64 ft (50 cm)
Color
Space Gray & Black
Enclosure type
Aluminum
Operating humidity
< 85% non-condensing
Operating temperature
30 to 116°F (-1 to 41°C)
Product depth
3.20 in. (81.39 mm)
Product height
0.93 in. (23.56 mm)
Product weight
˜ 16.33 oz (463g)
Product width
13.54 in. (344mm)
Storage humidity
< 85% non-condensing
Storage temperature
0 to 155°F (-17 to 68°C)
Package
Package Contents
1 - JCD554 USB4® Triple 4K Display Docking Station
1 - Quick Installation Guide (QIG)
