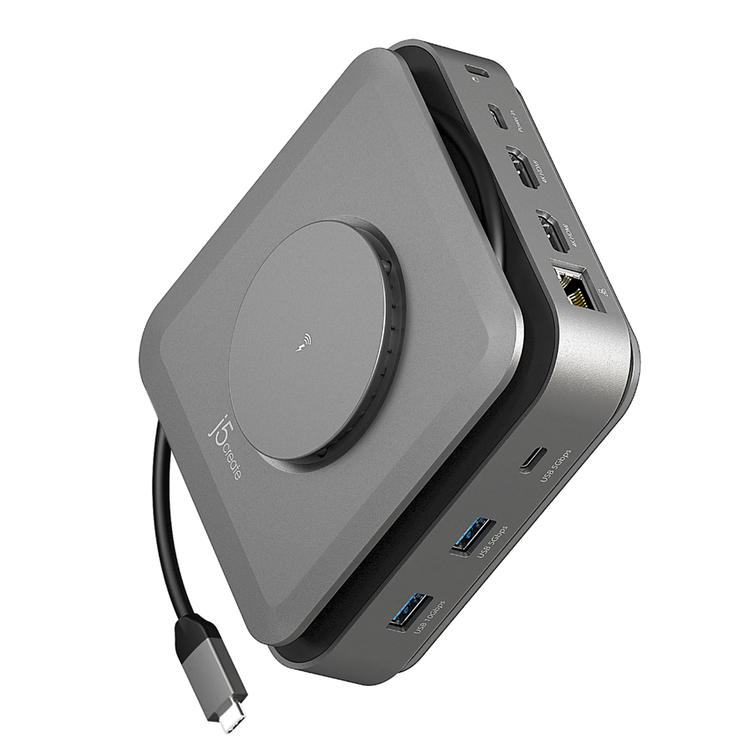

J5create USB-C 140W PD3.1 With 15W Wireless Charger Dual 4K HDMI Docking Station
This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV.
With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port’s location.
Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
- Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
- Supports Power Delivery 3.1 140W power in
- Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals
- Built-in magnetic wireless charger provides up to 15W fast wireless charging. Compatible with iPhone®MagSafe®, Samsung®S23/S22/S21, Google™ Pixel™ 5/6/7, AirPods®, and more. The 15W wireless chargingwill only work when a USB-C® 60W or above power adapter is connected to the dock.
- Reliable network connectivity via the Gigabit Ethernet
- Cable storage compartment
- Security lock
Hardware
Audio Supported
Yes
Host Connector
1 - USB-C® Male (PD3.1 100W, 20V/5A)
Network Interface
Yes
Output
Perfect for Google™ Pixel™, iPhone® with MagSafe®, and AirPods® - Provide 15W of wireless charging to a Google™ Pixel™ - Provide 7.5W of wireless charging to an iPhone® - Provide 5W of wireless charging to AirPods®
Ports
1 - USB-C® PD-in PD3.1 140W (28V/5A)
2 - USB-C® 5Gbps & 10Gbps
2 - USB™ Type-A 5Gbps & 10Gbps
1 - Combo 3.5mm Audio Jack
1 - HDMI™ (USB™ display max resolution 4K@30Hz)
1 - HDMI™ (DP™-Alt max resolution 4K@60Hz)
1 - RJ45 Gigabit Ethernet
1 - SD™/microSD™ 3.0
1 - Wireless charger 15W
Power Source
Bus-powered or self-powered
Video Output
2- HDMI™ Female
Performance
Audio Channel
2.1 via HDMI™
Compatible Networks
10/100/1000 Mbps
Displays Supported
2
Max Data Transfer Rate
10Gbps
Max Display Refresh Rate
60 Hz
Max Display Resolution
3840 x 2160
Power
Input Current
Up to 5A
Input Voltage
Up to 28V
Output Current
Up to 5A
Output Voltage
Up to 20V
Power Consumption
= 900 mA
Power Delivery
Up to 140W via USB-C®
Physical Specifications
Cable Length
2.28 ft (69.5 cm)
Color
Space Grey
Enclosure Type
Plastic
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (-1 to 41°C)
Product Depth
Body: 5.12 in. (130 mm) Holder: 3.15 in. (80 mm)
Product Height
Body: 1.71 in. (43.5 mm) Holder: 1.3 in. (33 mm)
Product Weight
Body:14.7 oz (416 g) Holder:0.8 oz (22 g)
Product Width
Body: 5.12 in. (130 mm) Holder: 5.12 in. (130 mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155°F (-17 to 68°C)
Package Contents
1 - JCD3199 USB-C® Dock Dual 4K HDMI™
1 - Dock Holder
1 - Quick Installation Guide (QIG)
