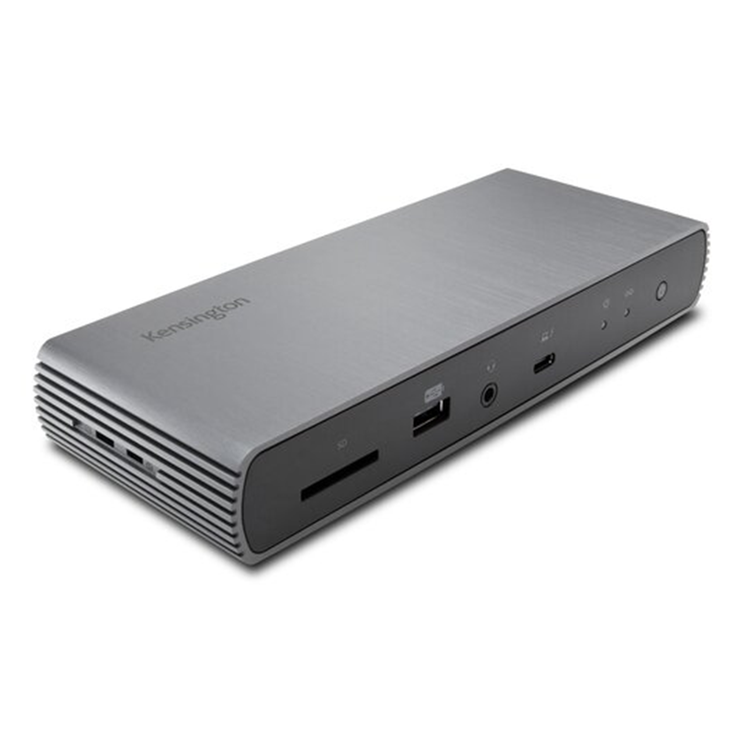

Kensington SD5750T Single 8K/Dual 4K Docking Station Thunderbolt 4
Designed Exclusively for Surface
Kensington has worked directly with Microsoft to provide professional-level connectivity that looks as good as it functions, so you can work like a pro. Connect with confidence for a seamless dock and charge experience.
Compatibility
This Thunderbolt-certified desktop docking station is the first of its kind, providing the ultimate plug-and-play solution for USB4/Thunderbolt 4 Surface devices, while also supporting USB-C and USB-A accessories.
Thunderbolt 4 Technology
For the first time, this Thunderbolt 4 modern docking station can connect up to three additional Thunderbolt devices directly (up to five in total via daisy chain) while providing transfer speeds up to 40Gbps, up to Dual 4K video output and audio; all through the included 0.8m Thunderbolt 4 cable, for a quick and powerful plug-and-play experience. Intel VT-d DMA protection blocks peripheral devices from unauthorised access to system memory.
Single 8K or Dual 4K Video Output for Thunderbolt 4-Enabled Devices
Extend visual productivity with the resolution, contrast and colour depth of Ultra HD (Single 8K 30Hz or Dual 4K 60Hz) via the available Thunderbolt 4 ports.
90W Power Delivery
Quickly and easily charge your USB4/Thunderbolt 4 Surface device, in addition to providing full support for your USB-C and USB-A peripheral accessories. No need to worry about what you have connected to the dock - our solution provides the only full-powered offering on the market, so you can connect anything and be sure to receive optimal performance.
Helps Futureproof Your Desktop Setup
11-Ports of connectivity provide you the power to get the job done today and into the future. This dock offers 4 x Thunderbolt™ 4 ports, all capable of data, video and audio, 4 x USB-A ports (1 x 5V/1.5A charging port on the front and 3 x Gen2 @ 10Gbps ports on the rear), 1 x Gigabit Ethernet port, 1 x audio combo jack and 1 x UHS-II SD 4.0 card reader.
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximise desktop space and reduce cable clutter by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Lock slots allow you to protect your investment with a Kensington cable lock, sold separately (K65020EU or K64444WW).
System Requirement
Systems Supported
Compatible with Surface devices equipped with USB4/Thunderbolt™ 4 USB-C ports
Operating Systems Supported
Windows 10 or above
Plug & Play
Yes
Software
For Windows, need to enable Intel
Thunderbolt™ software
System Resource Requirement
CPU: Intel® Core™ i5 6th generation or above
Memory: 8GB or above
GPU: Intel® HD Graphics 620 or above
Additional Software Information
Kensington DockWorks compatible
USB-C Power
Delivery 5V/9V/15V@3A&20V@4.5A
USB Interface
Type of USB
Connector USB-C Connector
Host Connector
USB4/Thunderbolt™ 4
USB Connections
Ports Front Panel :
- 1x USB-A 2.0 (5V/1.5A ; BC1.2 charging)
- 1x Thunderbolt™ 4 Host Port (up to 90W charging)
- 1x 3.5mm Audio Combo Jack
- 1x UHS-II SD 4.0 Card Reader
Back Panel :
- 3x Thunderbolt™ 4 Downstream Facing Port
- 3x USB-A 3.2 Gen2 (up to 10Gbps and 5V/0.9A charging)
- 1x Ethernet 10/100/1000Mbps
Network Connections
Ethernet Port
RJ45
Compatible Ethernet Speeds
10/100/1000Mbps
Host Connectivity
Host Docking Connector 1 x Thunderbolt™ 4 upstream port
(PD 90W , 5V/9V/15V@3A& 20V@4.5A)
Video Connections
Video Connectors
Thunderbolt™ 4
Maximum Resolution
Supported Thunderbolt 4
- Single Monitor : 8K@60Hz(with DSC enable), 8K@30Hz (without DSC)
- Dual Monitor : 4K@60Hz
Audio Connections
Audio Connectors
1 x 3.5mm audio combo jack
Audio Channels Supported
Stereo LR
LED Indicator
Blue LED
Link LED
Green LED
Power LED
Material Specifications
Exterior
Aluminum / PC+ABS
Bottom
Aluminum
Product Color
OTS Cool Gray 8c
Product Dimensions
Unit Weight
0.435kg
Unit Dimensions
without Peripherals Width: 7.7in (195mm)
Depth: 3.0in (75mm)
Height: 1.2in (30mm)
Enclosure Color & Material
OTS Cool Gray 8c, Aluminum
(Anodizing Fine Brushed Finish)
OTS black, PC + ABS (MT11005)
Desktop Footprint
22.7in2 (146.25cm2)
Packaging Dimensions
Packaging Style
Retail / Brown box
Packaging Dimensions
Each:
Width: 8.4in (215mm)
Depth: 5.5in (140mm)
Height: 4.1in (105mm)
Case:
Width: 17.7in (450mm)
Depth: 9.0in (230mm)
Height: 6.1in (155mm)
Packaging Weight
Each: 3.7lbs (1.70kg)
Case: 15.0lbs (6.80kg)
Packaging Content
1 x SD5750T Dock
1 x Thunderbolt™ 4 passive cable (0.8m)
1 x Power Supply Unit (170W)
1 x Instruction Guide
1 x Warranty Card
1 x Compliance Sheet
1 x Welcome card insert (NA SKU)
Master Carton 4
Power and Environmental
Power Adapter Rating
Input: 100-240V; 2.5A / Output: 20V DC 9A (180W)
Relative Humidity
55% operating temperature @ 25°C
Operating Temperature
0° to +45°C?
Storage Temperature
0° to +60°C
