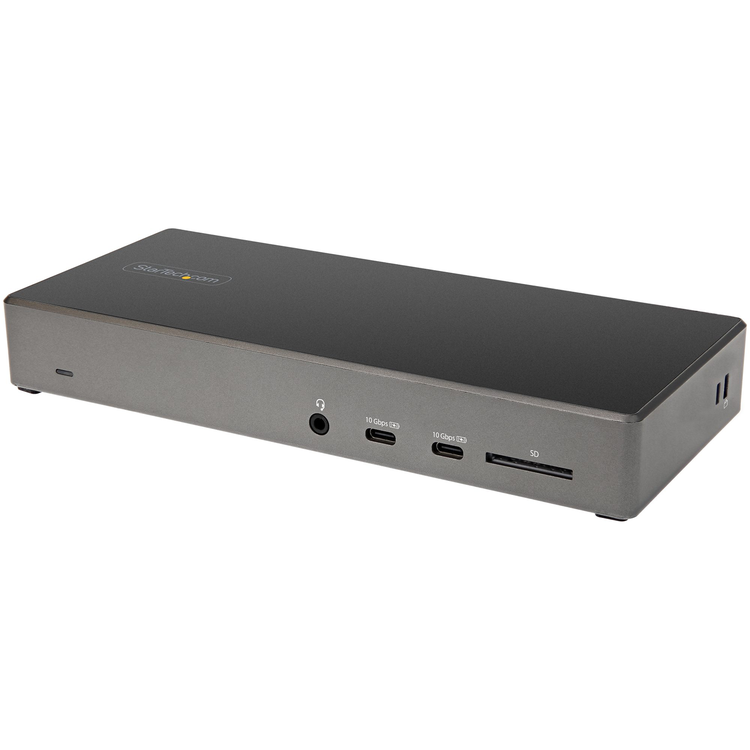

StarTech.com DK31C2DHSPD USB C DOCK TRIPLE 4K - 100W PD 6X USB
This USB-C Gen 2 10Gbps docking station?turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.
HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.
2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
2x USB-A 3.2 Gen 1 - 5 Gbps
2x USB-A 2.0 - 480 Mbps
SD 4.0 Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.
Additional Security Features
This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: To setup and save custom windows layouts.
Mac Address Pass-Through Utility: To improve network security.
USB Event Monitoring Utility: To track and log connected USB devices
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
Connector(s)
2 - External Ports
USB Type-C (Fast-Charge, 24 pin) USB 3.0
USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps)
USB Type-A (4 pin) USB 2.0
DisplayPort
Security Lock Slot
1 - External Ports
HDMI
SD / MMC Slot
RJ-45
3.5 mm Stereo Audio
1 - Host Connectors
USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps)
Environmental
Operating Temperature
0C to 50C
Storage Temperature
-20C to 70C
Humidity
0% to 95% (non-condensing) at 25 degrees
Hardware
Displays Supported
3
4K Support
Yes
Fast-Charge Port(s)
Yes
Audio
Yes
Interface
USB 3.2 Gen 2 - 10 Gbit/s
Bus Type
USB 3.2 Gen 2 10Gbps
Industry Standards
1 Gigabit connectivity to any 1000Base-T device (IEEE802.3ab compliant)
100 Megabit connectivity to any 100Base-TX device (IEEE802.3u compliant)
10 Megabit connectivity to any 10Base-T device (IEEE802.3i compliant)
Chipset ID
Cypress - CYPD3125
Cypress - CYPD4236
Synaptics - VMM5320BJG-R
Genesys - GL850
Genesys - GL3523
Genesys - GL3590
Genesys - GL3227
TI - TUSB1064RNQR
Realtek - RTL8153B
Realtek - ALC4042
Indicators
1 - LED Indicators
White On: Power
Yellow On: Link Detected
Yellow Flashing: Activity
Green On: 1Gbps
Yellow On: 100Mbps
Packaging Information
Package Height
3.7 in [94.0 mm]
Package Length
10.6 in [27.0 cm]
Shipping (Package) Weight
3.0 lb [1.4 kg]
Package Width
5.9 in [15.0 cm]
Performance
Maximum Digital Resolutions
Triple Display:
4096 x 2160 30Hz (DisplayPort 1.4 HBR3 with DSC)
1920 x 1080 60Hz (DisplayPort 1.4 HBR3 without DSC)
1600 x 900 60Hz (DisplayPort 1.2 HBR2)
Dual Display:
4096 x 2160 60Hz (DisplayPort 1.4 HBR3 with DSC)
2560 x 1440 60Hz (DisplayPort 1.4 HBR3 without DSC)
1920 x 1080 60Hz (DisplayPort 1.2 HBR2)
Single Display:
4096 x 2160 60Hz (DisplayPort 1.4 HBR3 with DSC)
3840 x 2160 60Hz (DisplayPort 1.4 HBR3 without DSC)
3840 x 2160 30Hz (DisplayPort 1.2 HBR2)
GPU CAPABILITIES: Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays (laptop screen may be disabled when connected to three monitors)
Audio Specifications
Analog Stereo - 2 Channel Audio
Memory Media Type
SD/MMC (Secure Digital/Multimedia Card)
PXE
Yes
MTBF
215,990 hours
Physical Characteristics
Color
Black & Space Gray
Product Height
1.2 in [30.0 mm]
Product Length
8.3 in [21.0 cm]
Weight of Product
10.6 oz [300.0 g]
Product Width
3.5 in [90.0 mm]
Cable Length
39.4 in [100 cm]
Power
Power Source
AC Adapter Included
Power Delivery
100W
Input Voltage
100 - 240 AC
Plug Type
M
Software
OS Compatibility
Windows 10
Windows 8.1
Chrome OS 78.x
Special Notes / Requirements
System and Cable Requirements
A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB-C Power Delivery and DP alt mode)
Note
Ensure your laptop's drivers, firmware, and operating system are up to date prior to using the docking station. For a multi-monitor configuration, the Windows laptop must support MST
What's in the Box
1 - Included in Package
USB-C Dock
USB-C Cable (1 m)
Quick-Start Guide
2 - Included in Package
Power Cable NA/JP & ANZ
