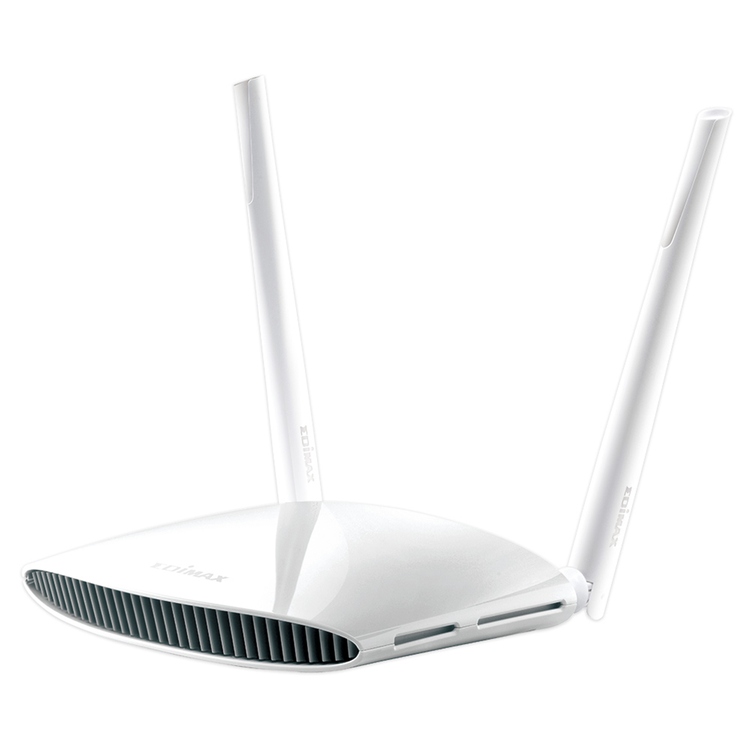

EDIMAX AC1200 Gigabit Dual-Band Access Point w/ USB Port. Multi-Function USB port. Multiple SSIDs and VLANs. 5 in 1 modes. Guest network. iQoS Bandwidth management. Modern homes and businesses need high-performance, reliable and secure Wi-Fi. The EW-7478APC features the latest 11ac standard to upgrade your existing 11n to better, faster Wi-Fi and a USB port for file & printer-sharing on your network. Attach a USB hard-drive for central NAS (Network Attached Storage) access on any device and stream content at lightning fast lag-free 11ac speeds. It's a 5-in-1 device that can function as an access point, range extender, Wi-Fi router, Wi-Fi bridge or WISP and you can easily switch mode for your network environment with the smart iQ Setup wizard.
FEATURE:
- AC1200 High-Speed Concurrent Dual-Band: Max speed up to 300Mbps (2.4GHz) and 867Mbps (5GHz) with 802.11ac Wi-Fi standard and backward compatible with 802.11a/b/g/n standards.
- Multi-Function USB Port: Storage & FTP file or printer sharing as your own private, secure cloud.
- Multiple SSIDs with VLAN: Supports up to 8 SSIDs (2.4GHz x 4 & 5GHz x 4) and provides security to protect confidential or critical network resources (Access point mode only).
- Plug and Play: Zero configuration setup with no CD required. Just connect the EW-7478APC to your router with an Ethernet cable.
- Easy 11ac Upgrade: Upgrade your single-band 2.4GHz Wi-Fi to 11ac dual-band Wi-Fi for better coverage and faster Wi-Fi speed with zero configuration.
- 5 Modes in 1: Access point, range extender, Wi-Fi router, Wi-Fi bridge and WISP.
- Guest Network: Provides secure, private connectivity while isolating guests from your primary network (Wi-Fi router/range extender/WISP mode only).
- iQoS Bandwidth Management: Efficient Internet bandwidth management
- VPN (Virtual Private Network): Access secure remote networks from anywhere, protect privacy on public Wi-Fi and bypass Internet censorship (Wi-Fi router mode only).
AC1200 High Speed Wi-Fi
Supports the IEEE 802.11ac wireless standard, meaning much higher data rates on the 5GHz band. With 300Mbps speeds at 2.4GHz and 867Mbps at 5GHz, the EW-7478APC is ideal for HD video streaming and large file transfers.
HARDWARE
Port
1 x RJ-45 10/100/1000Mbps WAN port
4 x RJ-45 10/100/1000Mbps LAN port
2 x USB 2.0 port
Button
WPS/Reset buttons
LED Indicator
Power, Internet, WLAN, USB
Antenna
2 x Dual-band antennas
Memory
8MB NOR Flash
64MB RAM
Power Adapter
DC 12V, 1.5A
Dimensions (W x D x H)
190.2mm x 172mm x 42mm
Weight
322g
WIRELESS
Standards
802.11 a/b/g/n/ac
Frequency
5GHz and 2.4GHz concurrent dual-band
Maximum Data Speed
5GHz: 867Mbps
2.4GHz: 300Mbps
Security
64/128-bit WEP, WPA and WPA2 security
Hardware & software WPS configuration
QoS for critical operations, SPI anti-DoS firewall
OTHERS
Certification
CE, FCC, RoHS
Environmental Condition
Operating humidity: 10-90% (non-condensing)
Operating temperature: 32 - 104°F (0 - 40°C)
System Requirement
Cable or xDSL Internet connection (RJ-45 cable modem or RJ-45 ADSL modem)
Computer (with Fast Ethernet adapter or wireless adapter) running Windows, Mac OS or Linux
Smartphone, tablet or laptop running iOS 4 or Android 4 and above
Web browser (Internet Explorer, Google Chrome, Firefox, Opera or Safari)
Package Content
EW-7478APC Access point
Quick installation guide
CD-ROM (including setup wizard, multi-language quick installation guide and user manual)
Power adapter
Ethernet cable
