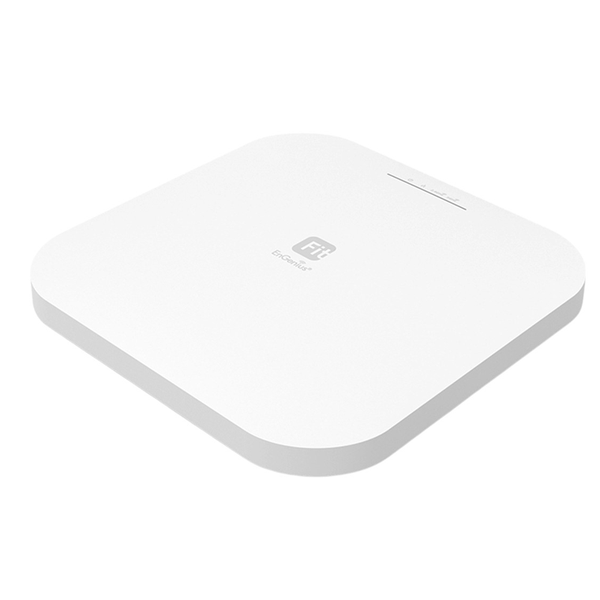

EnGenius EWS276-FIT EnGenius Fit 4 4 Indoor Wireless Wi-Fi 6 Access Point
EnGenius Fit6 4x4 Lite Managed Indoor Wireless Access Point offers advanced 802.11ax technology, granting users incredibly speedy and efficient performance with a maximum theoretical speed of 1,148 Mbps on the 2.4GHz frequency and an incredible 2400Mbps on 5GHz frequency! Furthermore it's safeguarded by top-tier WPA3/WPA2PSK AES encryption protocols for unparalleled security. - Dual concurrent 802.11ax architecture &; backward-compatible with 11ac/a/b/g/n client devices- WPA3 &; WPA2-AES authentication support- 5 dBi integrated 4x4 antenna- Supports up to 2,400 Mbps in the 5GHz frequency band &; 1,148 Mbps in the 2.4GHz frequency band- 1x 2.5 GE PoE+ port for flexible power options- Local and remote management over FitController controller without fee- Choice of AP, STA and Mesh modes to meet your management &; deployment requirements Boosts Efficiency for Multiple Users
Tackle High-Density Traffic
Ensuring Full Use of Wi-Fi 6 Capabilities
LED Indicators for Different Status
Versatile Applications
- Standards
- 802.11a/b/g/n/ac/ax
- Antenna - 2.4GHz
- 5dBi
- Antenna - 5GHz
- 5dBi
- Physical Interfaces
- 1 x 10/100/1000/2500 BASE-T DC12V Reset/Reboot button
- LED indicators
- 1 x Power 1 x LAN 1 x 2.4 GHz 1 x 5 GHz
- Power Source
- PoE 802.3at DC12V
- Maximum Power Consumption
- 17W
- Operating Frequency
- Dual-Radio Concurrent 2.4 GHz & 5 GHz
- Operation Modes
- Managed mode: AP, AP Mesh, Mesh
- Frequency Radio
- 2.4 GHz: 2400 MHz ~ 2482 MHz
- 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
- Transmit Power
- Up to 23 dBm on 2.4 GHz
- Up to 23 dBm on 5 GHz
- (Maximum power is limited by regulatory domain)
- Radio Chains
- 4 × 4:4
- SU-MIMO Capability
- Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio.
- Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio.
- MU-MIMO Capability
- Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
- Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
- Supported Data Rates
- 802.11ax:
- 2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
- 5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 36, 48, 54
- 802.11n: 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)
- Supported Radio Technologies
- 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
- 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- Channelization
- 802.11ax supports high efficiency throughput (HE) -HE 20/40/80 MHz
- 802.11ac supports very high throughput (VHT) -VHT 20/40/80 MHz
- 802.11n supports high throughput (HT) -HT 20/40 MHz
- 802.11n supports high throughput under the 2.4GHz radio -HT40 MHz (256-QAM)
- 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
- Supported Modulation
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11b: BPSK, QPSK, CCK
- Max Concurrent User
- 128 per radio
- Operating Temperature
- 32°F~104°F (0°C~40°C)
- Storage Temperature
- 3-40°F~176°F (-40°C~80°C)
- Storage Humidity
- Storage: 90% or less
- Safety Compliance
- CB
- Wi-Fi Alliance
- N/A
- WEEE
- Yes
- RoHS
- Yes
- Regulatory Compliance
- FCC CE IC UKCA
- Weight
- 570g
- Dimensions
- 205 x 205 x 33 mm
