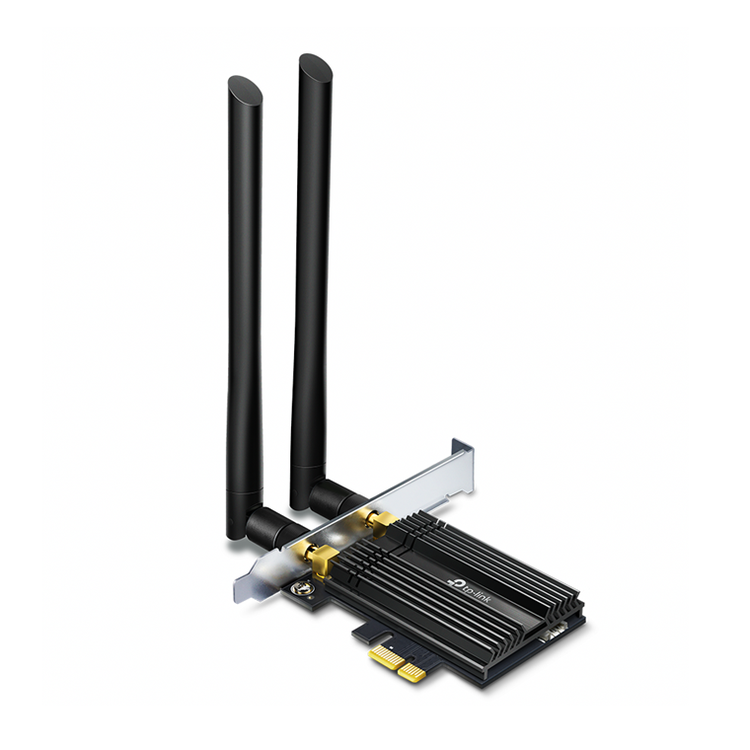

TP-Link Archer TX50E (AX3000) Dual-Band WiFi 6 + Bluetooth 5.0 PCIe Wireless Adapter
Give Your PC Wi-Fi 6 and Bluetooth 5.0
AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
High Performance for High Demands
The very latest Wi-Fi standard, Wi-Fi 6, provides extreme speed, ultra-low latency, and uninterrupted connectivity so you enjoy faster downloads, smoother streaming, and more immersive gaming.
1Gbps: Traditional Tethered Gaming: 1Gbps
2.4Gbps: Unlimited Wi-Fi 6 Gaming: 2.4 Gbps
Deep-Dive into VR
Wi-Fi 6 comes with 1024-QAM and 160 MHz bandwidth, for powerful, continuous Wi-Fi. Bandwidth-intensive applications like VR demand high speeds, which Wi-Fi 6 delivers-3x faster than Wi-Fi 5. Just insert Archer TX50E into your PC for fully immersive VR experiences.
Lag No More
Revolutionary OFDMA reduces latency by up to 75% to provide ultra-responsive gaming, uninterrupted video chatting and seamless live streaming.*
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Connect and Enjoy via the Latest Bluetooth 5.0
The latest Bluetooth 5.0 Technology, achieves speeds 2x faster and coverage 4x broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.***
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.**
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.
- 802.11ac | without OFDMA
- 802.11ax | OFDMA
Ingenious Details Make a Perfect Whole
A customized heat sink improves connection stability by efficiently dissipating thermal energy. Additionally, gold plating on every contractor prevents oxidation. Attention to every detail ensures your adapter is crafted for ultimate performance.
HARDWARE FEATURES
Dimensions
3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm)
Antenna Type
Two High-Gain Dual Band Antennas
Chipset
Intel Wi-Fi 6 Chipset
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0
WLAN Signal Rate
5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity
5 GHz :
11ax HT160:-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm
11ac HT160:-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm
2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
WLAN Transmit Power
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes
Infrastructure mode
Wireless Security
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Bluetooth Profiles
Archer TX50E support the native BT profiles implemented in Windows 10.
For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles
OTHERS
Certification
CE, FCC, RoHS
Package Contents
Archer TX50E
Two 5 dBi High-Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements
Windows 10(64-bit) only
Environment
Operating Temperature: 0~40C (32~104F)
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
