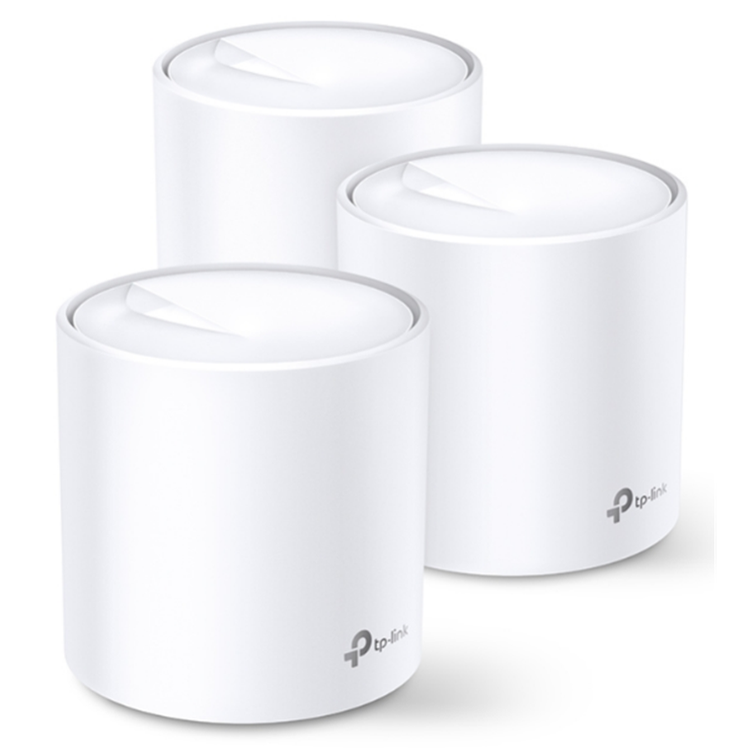

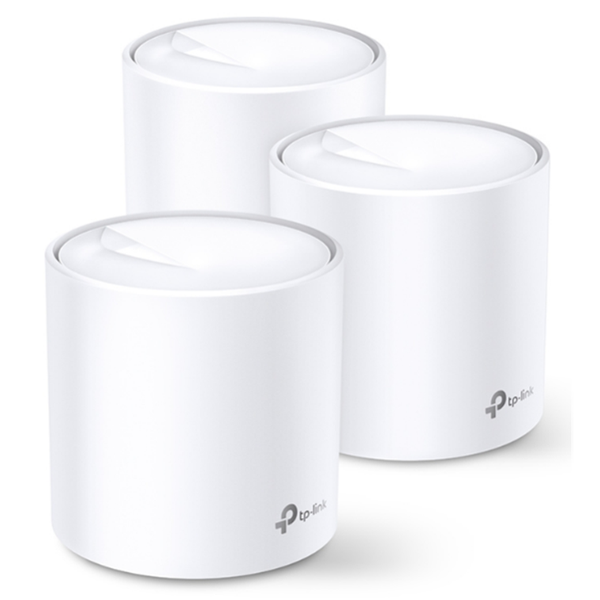

TP-Link Deco X20 (AX1800) Dual-Band WiFi 6 Whole-Home Mesh System - 3 Pack
Advanced Mesh Powered by Wi-Fi 6
Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.
- Enhanced Whole Home Coverage
- Seamless Roaming
- Connects over
- 150 Devices
- Faster Wi-Fi 6 Speed
- Greatly Reduced Lag
Wi-Fi Dead Zone Killer
With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20 boosts broader whole-home Wi-Fi up to 540 sqm (3-pack)*. Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.
True Seamless Roaming for Greater Experiences
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience. **
More Connections for Immersive Streaming
Enjoy a more efficient network with 4× the average throughput on connected devices in dense environments thanks to Wi-Fi 6 technology?. Deco X20 is tested to connect over 150 devices without dragging down performance.***
Faster Wi-Fi 6 Speed = No Wait
The latest 1024-QAM and higher symbol rate combines to boost speeds up to 1.8 Gbps-ideal for bandwidth-intensive tasks like cloud gaming and 4K UHD video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.*
Greatly Red uced Lag, More Fun
Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow's hyper-connected home. Enjoy more responsive gaming and seamless video chatting even when multiple compatible devices are connected and transmitting data at the same time.
Your Home, Our Care
Customize your home network with enhanced security using a kit of features built in TP-Link HomeCareTM. Whether protecting your sensitive data or limiting the access of kids and guests, HomeCareTM provides you the tools you need to fully manage your network.***
- Robust Parental Controls: Block inappropriate content and restrict time spent online
- Built-In Antivirus: Protect all connected devices in your home from online threats
- Quality of Service: Prioritize devices and applications for faster performance when needed
Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
1. Connect Deco to your cable modem and power on both devices
2. Download and launch the Deco app; just follow the in-app directions to finish the setup steps
3. Follow in-app instructions to configure your Deco system.
Wi-Fi Made Easy
- Easy Management: Manage your Wi-Fi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.
- Voice Control: Pair with Alexa to control Deco X20 with simple voice commands. Enjoy the convenient life.
- All Decos Work Together: Deco X20 is compatible with every other Deco model to form a mesh network. Expand mesh Wi-Fi coverage anytime by simply adding more Decos.
Remarks
The use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
**Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device
***HomeCareTM Pro is available for free for the first few months after subscription. Please check www.tp-link.com/homecare for more information.
POWER
AC adapter input
100-240V~50-60Hz 0.6A
AC adapter output
12 V/1.5 A
HARDWARE FEATURES
Ports
2x 10/100/1000 Mbps RJ45 ports
Button
1 RESET button on the underside
Power Consumption
13.5W max
External Power Supply
12 V/1.5 A
Flash
1 Gbit
SDRAM
4 Gbit
Dimensions ( W x D x H )
4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm)
Antenna
4 internal omni-directional antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz,
IEEE 802.11b/g/n/ax 2.4GHz
Frequency
2.4GHz and 5GHz
Signal Rate
575 Mbps on 2.4GHz, 1200 Mbps on 5GHz, 1024QAM on
2.4GHz and 5GHz
Transmit Power
FCC: <30 dBm(2.4GHz), <30 dBm(5GHz)
CE: <20 dBm (2.4GHz), <23 dBm (5GHz)
Wireless Functions
Mesh Protocol: 802.11k/v/r
Wireless Security
WPA/WPA-PSK2/WPA3 encryptions
SOFTWARE FEATURES
Quality of Service
WMM
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Local Management; Remote Management; Multi-Managers
DHCP
Server
Firewall Security
SPI Firewall
Protocols Supports
IPv4 and IPv6
Advanced Functions
Parental Controls, QoS (Quality of Service), Reporting, Assisted Setup, Address Reservation, Port Forwarding, TP-Link DDNS, IPTV, IPv6, LED Control
Guest Network
2.4GHz Guest Network×1, 5GHz Guest Network×1
Working Modes
Router, Access Point
OTHERS
Certification
CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI
Package Contents
3x Deco X20 units
1x RJ45 Ethernet cable
3x Power adapters
1x Quick Installation Guide
Smartphone/Tablet Requirements
iOS 9.0 or later,
Android 4.3 or later
Environment Operating Temperature:
0°C~40°C (32°F~104°F)
Storage Temperature:
-40°C~70°C (-40°F~158°F)
Operating Humidity:
10%~90%
Storage Humidity:
5%~90%
