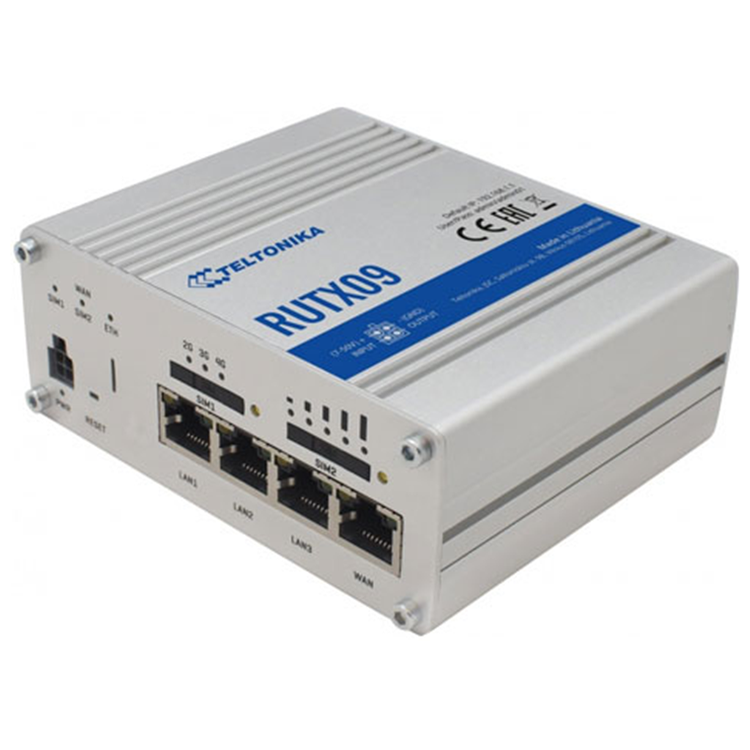

The Teltonika RUTX09 Next generation LTE-A Cat6 cellular Gigabit fail over router with Dual SIM, Carrier Aggregation, GPS location tracking and Gigabit Ethernet interfaces. Rugged and powerful choice with VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system.
This powerful LTE router is designed as Main/Backup Internet source where steady connection and high data throughput is required. Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. The Teltonika RUTX09 has all advanced RutOS software and security features.
- Supports LTE Cat 6 up to 300 Mbps
- Teltonika Remote Management System compatible
- Gigabit Ethernet with speeds up to 1000 Mbps
- Multiple secure VPN services
- Dual-SIM with auto Failover, Backup WAN and other SW features
- Easy to use, secure and feature rich OpenWrt based Operating System
- SDK package with build environment provided
- Wide voltage range (9-50 V)
- USB Storage formats FAT, FAT32, NTFS
Product code
RUTX09000300
Mobile module
4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
Supported Bands
4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41; 3G: B1, B3, B5, B8
SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status
Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list
Operator black/white list
Multiple PDN
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, Used band status display
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
CPU
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB, DDR3
FLASH memory
256 MB SPI Flash
GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA
NMEA 0183
Server software
supported server software TAVL, RMS
Mobile Network Geolocation
Location without using GPS, get approximate location based on mobile tower on RMS
Geofencing
Configurable multiple geofence zones
Ethernet
4 x RJ45 ports, 10/100/1000 Mbps, 1 x WAN and 3 x LAN
Status LEDs
3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power
4 pin industrial DC power socket
Antennas
2 x SMA for LTE, 1 x SMA for GNNS
USB
USB A port for external devices
Reset
Reset/restore to default button
Casing material
Full aluminium housing
Dimensions
115 mm x 95 mm x 44 mm (H x W x D)
Weight
456 g
Mounting options
DIN rail (can be mounted on two sides), flat surface placement
Operating temperature
-40 C to 75 C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
