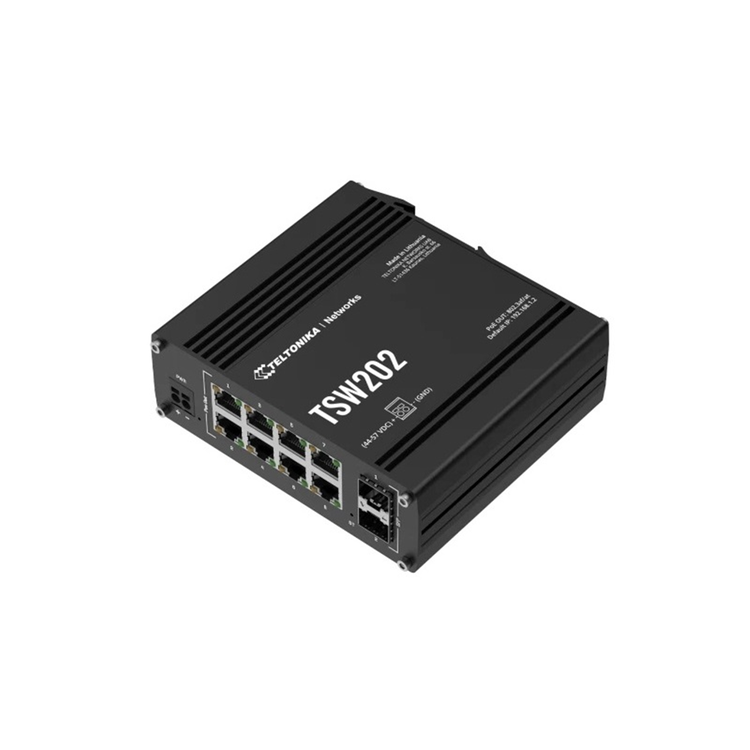

Teltonika TSW202 Managed PoE+ Switch 8 x 10/100/1000 Mbps ETH-ports PoE+ switch
TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.
MANAGED SWITCH
L2 with additional L3 features for enhanced management and control
PoE+ & SFP
8 x port PoE+ switch with 2 x SFP ports for fibre optic communication
PROFINET & MORE
Supports PROFINET for automated data processing alongside other protocols, like EtherNet/IP and MRP
TSWOS
Teltonika Networks OS for switches, intuitively designed for infinite configurations
Ethernet
ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
INDUSTRIAL PROTOCOLS
Profinet
Profinet Class B conformance (available with optional order code)
POE OUT
PoE ports
Port 1 - 8
PoE standards
802.3af and 802.3at Alternative A (From batch 42)
802.3af and 802.3at Alternative B (From batch 1-41)
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
240 W
Maximum Ethernet cable length
100 m
Services
EtherNet/IP
Yes
SNMP V2, V3
Yes
LLDP
Yes
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
Network
MRP
MRP client role, MRP manager role
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Security
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
QoS
QOS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling method
SP/WFQ/WRR
Bandwidth control
Rate limiting, storm control
Traffic Shaper
Port-based shaping
Diagnostics
Tools
Cable diagnostic, ping, traceroute, nslookup
Ping reboot
Capability to restart PoE in a specific port
System Characteristics
RAM
128MB, DDR3
FLASH storage
16 MB serial flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
FIRMWARE CUSTOMISATION
Operating system
TSWOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
Performance Specifications
Bandwidth (Non-blocking)
20 Gbps
Forwarding rate
14.88 Mpps
Packet buffer
512 KB
MAC address table size
8K entries
Jumbo frame support
10000 bytes
Power
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC
PoE-out input voltage range
44 – 57 VDC
Power consumption
Idle: < 3 W / Max: 8 W / PoE Max: 248 W
Physical Interfaces
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket
Reset
Software reset button
Other
1 x Grounding screw
Physical Specification
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
132 x 44.2 x 122.2 mm
Weight
610 g
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating Environment
Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
