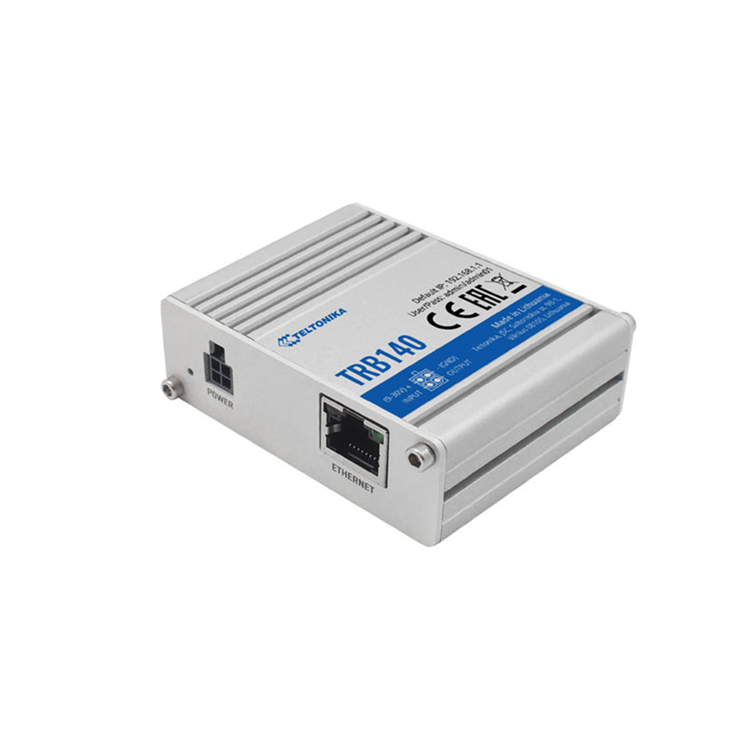

The Teltonika TRB140 is an industrial LTE Cat 4 Gateway Board and is equipped with a single Ethernet port, Digital Inputs/Outputs and micro-USB port. The TRB140's compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.
Small and quick to deploy industrial Ethernet to 4G LTE IoT gateway. Advanced VPN functionality, security and remote management capabilities makes the Teltonkia TRB140 the best option for single device connectivity.
Key Features
- Gigabit Ethernet interface
- Wide range of power supply voltages (9 - 30V)
- LTE Cat 4 up to 150 Mbps support
- Teltonika Remote Management System compatible
- Compact size, easy integration
- OpenLinux based OS allows high software customisation
Product code
TRB140101000
Mobile
LTE(Cat4)/3G/2G
SIM slot
Mini SIM (2FF)
Antenna connector
1 x SMA for LTE
Ethernet
1 x 10/100/1000 Mbps
Input/Output
2 x Digital Input/Output (configurable)
CPU
ARM Cortex-A7 1.2 GHz CPU
RAM
128 MB (50 MB available for userspace)
Flash
512 MB (70 MB available for userspace)
Input voltage range
9 - 30 VDC
Power connector
4 pin industrial DC power socket
Power consumption
Less than 5 Watts
Configuration interface
Virtual NIC via Micro-USB connector
LED Indicators
Power, signal, network and data status LEDs
Operating System
Linux OS with Yocto SDK (offering high software customisation)
Network
NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS ( >25 service providers supported)
Remote management
RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
Status watchdogs
Ping reboot, periodic reboot
Additional features
Internet connectivity over USB virtual network interface
Operating temperature
-40° C to 75° C
Storage temperature
-45° C to 80° C
Operating humidity
10% to 90% non-condensing
Storage humidity
5% to 95% non-condensing
Dimensions
60 mm x 70 mm x 18 mm
Weight
35.8 g
