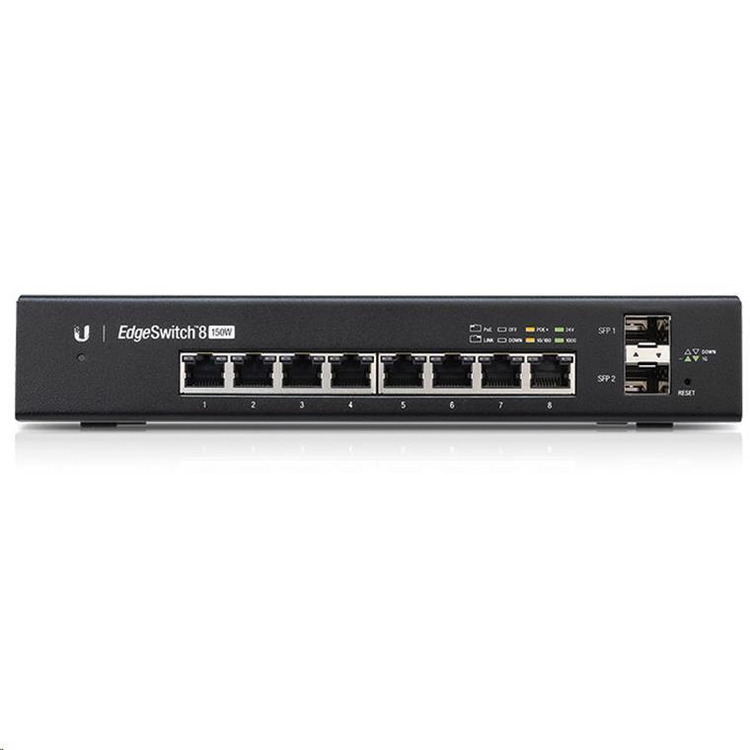

Ubiquiti EdgeSwitch ES-8-150W 8-Port Gigabit Managed PoE+ Switch
ES-8-150W - Ubiquiti EdgeSwitch 8-Port Managed PoE+ Gigabit Switch with SFP 150W
Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The EdgeSwitch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure. By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface. The EdgeSwitch provides fiber connectivity options for your growing networks. The 8, 16, and 24-port models include two SFP ports, providing up to 1 Gbps uplinks. For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing uplinks of up to 10 Gbps. Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH. The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including: MSTP/RSTP/STP, VLAN, Private VLAN, Voice VLAN, Link Aggregation, DHCP Snooping, IGMP Snooping, TACACS+, RADIUS, 802.1X, MAC Filtering, ACL, DiffServ, CoS, Static Routing, Policy-Based Routing, DHCP Server Functionality and much more.
- (8) Gigabit RJ45 Ports
- (2) SFP Ports
- (1) Serial Console Port
- Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Maximum Power Consumption: 150W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Wallmountable with Mount Brackets (Included)
- Desktop-Mountable (Do not physically stack the ES-8-150W.)
- DC Input Option (Redundant or Stand-Alone)
Total Non-Blocking Throughput
10 Gbps
Switching Capacity
20 Gbps
Forwarding Rate
14.88 Mpps
Max. Power Consumption
150W (Including PoE), 20W (Excluding PoE)
Power Method
AC: 100-240VAC, DC: 42 to 56VDC External Terminal Block
Networking Interfaces
(8) 10/100/1000 Mbps RJ45 Ethernet Ports, (2) 1 Gbps SFP Ethernet Ports
Management Interface
(1) RJ45 Serial Port, Ethernet In/Out Band
PoE Interfaces
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-); 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE
34.2W
Voltage Range 802.3at Mode
50-57V
Max. Passive PoE Wattage per Port
17W
24V Passive PoE Voltage Range
20-27V
Dimensions
204 x 43 x 235 mm
