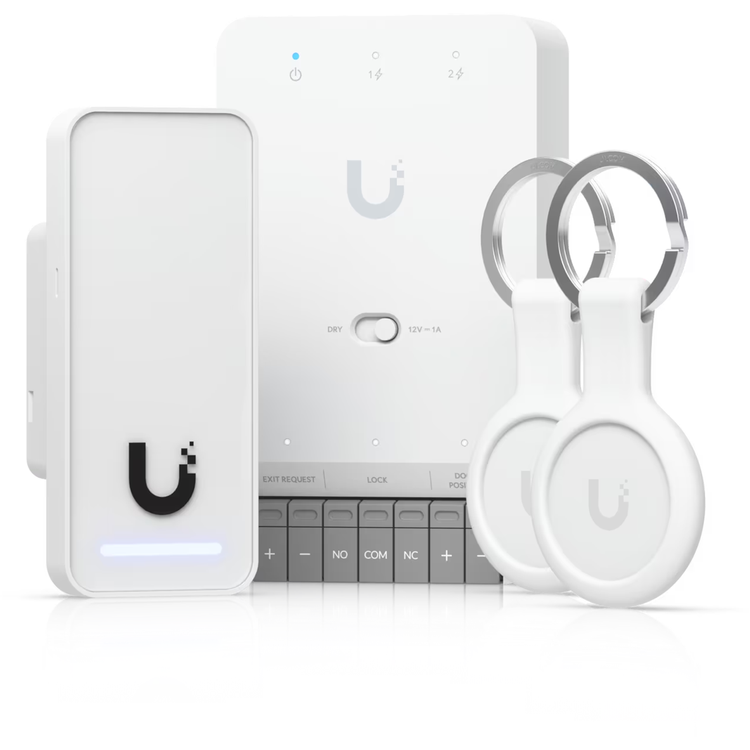

G3 Starter Kit A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Apple Touch Pass for modern, secure access control. (1) Door Hub Mini(1) G3 Reader(2) Pocket Keyfobs
- Dimensions
- 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
- Weight
- 190 g (6.7 oz)
- Enclosure material
- Polycarbonate, metal
- Networking interface
- (3) GbE RJ45 ports
- Power method
- PoE++
- Max. power consumption
- Without PoE output: 19W
- With PoE output: 50W
- PoE input
- 50V DC, 1A
- PoE output
- (2) PoE ports, total 31W
- LEDs
- White/blue (Learn more)
- Button
- (1) Factory-reset
- (1) Dry/Wet switch
- Digital input
- Request to exit/door position sensor
- Output relay
- Dry: 30V DC, 1A
- Wet: 12V DC, 1A
- PoE cabling requirements
- Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
- The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
- Operating environment
- Indoor use only
- Ambient operating temperature
- -10 to 40° C (14 to 104° F)
- Ambient operating humidity
- 5 to 90% noncondensing
- Software information
- The software version of a product can be checked at https://unifi.ui.com
- Certifications
- CE, FCC, IC
- Document number, and issue date and/or revision level
- UA-Hub-Door-Mini, V01
- Management application
- UniFi Access: Version 2.5.2 and later
- Dimensions
- 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Weight
- 82 g (2.9 oz)
- Enclosure material
- Polycarbonate, glass
- Mounting material
- Aluminum alloy
- Mounting
- In wall, gang box
- Weatherproofing
- IP55
- Networking interface
- (1) 10/100 MbE RJ45 port
- Connectivity
- BLE 4.1
- NFC
- Power method
- PoE
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range
- 48V DC
- Max. power consumption
- 5W
- ESD/EMP protection
- Air: ±15kV, contact: ±8kV
- Sensors
- Proximity sensor
- Speaker
- (1) 8 ohm, 0.7W
- LEDs
- R/G/B/W
- Button
- (1) Factory-reset
- NFC frequency
- 13.56 MHz
- NFC read range
- < 30 mm
- NFC technology
- ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
- MIFARE Classic / MIFARE DESFIRE
- Sony FeliCa™ (ID only)
- NFC Forum tags T1T, T2T, T3T, T4T and T5T
- ECP 2.0
- Operating environment
- Outdoor use
- Ambient operating temperature
- -30 to 45° C (-22 to 113° F)
- Ambient operating humidity
- 5 to 90% noncondensing
- Software information
- The software version of a product can be checked at https://unifi.ui.com
- UL 294 level
- Destructive attack: Level I
- Line security: Level I
- Endurance: Level I
- Standby power: Level I
- UL 294 statement
- Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
- The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
- PoE cabling requirements
- Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
- The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
- CAN/ULC-60839-11-1 Grade
- Grade assignment: I
- Certifications
- CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
- Document number, and issue date and/or revision level
- UA-G3, V01
- Management application
- UniFi Access: Version 3.0.15 and later
- Dimensions
- 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
- Weight
- 16 g (0.56 oz)
- Enclosure material
- Polycarbonate, stainless steel, silicone rubber
- Weatherproofing
- IP54
- NFC frequency
- 13.56 MHz
- NFC technology
- ISO/IEC 14443 Type A
- MIFARE DESFire EV3 4K
- UniFi Access Proprietary Security Protocol
- Ambient operating temperature
- -10 to 45° C (14 to 113° F)
- Ambient operating humidity
- 10 to 90% noncondensing
- Certification
- CE
