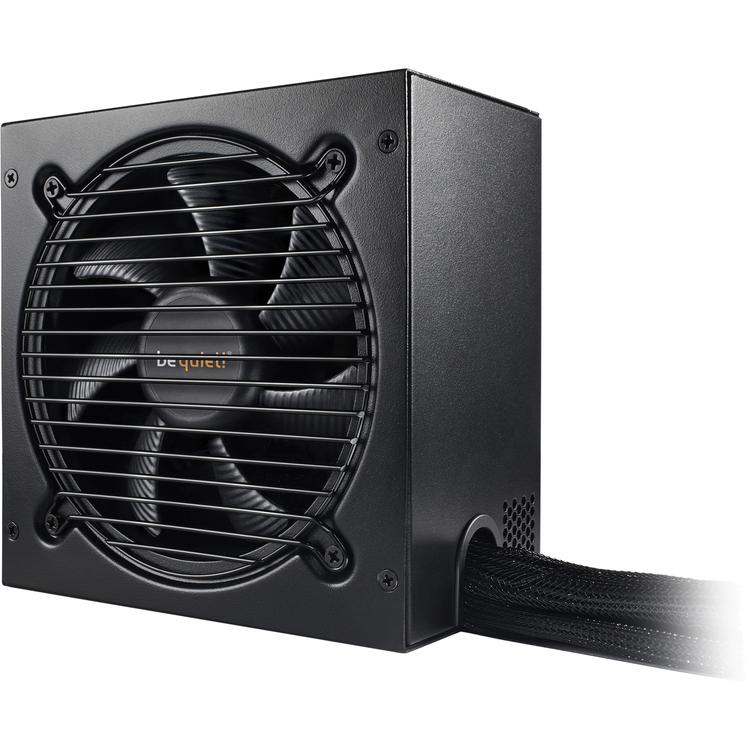

PURE POWER 11 500W - EXCEPTIONALLY QUIET, SUPERIOR RELIABILITY, GREAT VALUE
Pure Power 11 500W offers peerless dependability and best-in-class features. Whether you’re assembling a very quiet system, building a multi-GPU gaming system, or upgrading an existing PC, your build will benefit from this PSU that simply has the best combination of features at a very popular price.
- 80 PLUS® Gold efficiency (up to 92%)
- Two strong 12V-rails
- Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
- DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
- Silence-optimized 120mm be quiet! fan
- Multi-GPU support with two PCIe connectors
- Full suite of top safety features
80 PLUS® GOLD CERTIFICATION - Very high operating efficiency
Pure Power 11 500W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs, and cooler, quieter operation.
POWER AND COMPATIBILITY FOR YOUR SYSTEM - The best combination of features and performance at a very popular price
Pure Power 11 offers 500W of continuous power with two independent 12V rails for signal stability and two PCI express connectors for multi-GPU systems. It is suited to very quiet systems, for upgrading or building multimedia or multi-GPU gaming systems.
INNOVATIVE TECHNOLOGIES - DC-to-DC, Active Clamp and Synchronous Rectifier
The use of Active Clamp and Synchronous Rectifier technologies provides very stable operation. The PSU is equipped with DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions. This ensures secure operation for next generation processors and graphics cards.
EXCEPTIONALLY SILENT OPERATION - Achieved by a silence-optimized 120mm be quiet! fan
The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.
HIGH-QUALITY SLEEVED CABLES - Keeping your system tidy and good-looking
Pure Power 500W is equipped with high-quality sleeved cables that simplify component installation, increase airflow and improve cooling. The All-in-one cable has a convenient easy-plug HDD connector.
Cables
General data
Model
Pure Power 11 500W
Continuous power (W)
500
Peak power (W)
550
Form factor
Version 2.4
Form factor EPS 12V
-
Modular Cable management
-
Topology
Active Clamp + SR + DC/DC
Wire-free design (DC-side)
-
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
8 / 5
PFC
active
Power factor at 100% load
>0.99
Compliant to Intel
C6/C7 Yes
Power consumption in standby (W)
0.21
Average life time (h / 25°C)
100,000
Operating temperature up to (°C)
40
Output
12V rails (multi-rail operation)
2
12V single rail operation
-
Overclocking key
-
+3.3V (A)
24
+5V (A)
15
+12V1 (A)
28
+12V2 (A)
20
+12V3 (A)
-
+12V4 (A)
-
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.3
+5Vsb (A)
3
Max. combined power 12V (W)
480
Max. combined power 3.3V + 5V (W)
120
Hold-up time at 100% load (ms)
23
Power good signal
100 - 500ms
Fan / Cooling technology
Fan type
Silence-optimized be quiet! fan
+SilentWings
-
Motor technology
4-pole fan motor
Bearing technology
Rifle
Fan size (mm)
120
Max. fan speed (rpm), temperature-dependent
1230
Temperature control for case fans
-
dB(A) at 20% load
9.3
dB(A) at 50% load
9.6
dB(A) at 100% load
21.6
Protection
OCP (over current protection)
Yes
OVP (over Voltage protection)
Yes
UVP (under Voltage protection)
Yes
SCP (short circuit protection)
Yes
OTP (over temperature protection)
Yes
OPP (over power protection)
Yes
Safety certification
CE
Yes
CB
Yes
TÜV
Yes
FCC
Yes
cRUus
-
cTUVus
Yes
RCM (Australia)
Yes
BSMI
Yes
CU (Russia)
Yes
CCC
Yes
Eco / Efficiency
80 PLUS certification
Gold
Efficiency (%) at 230V, 20% load
88.2
Efficiency (%) at 230V, 50% load
91.3
Efficiency (%) at 230V, 100% load
89.9
Environmental directives
Energy Star
6.1
ErP
Yes
WEEE
Yes
RoHs
Yes
Cables / Connectors
Nvidia® SLI (RTX 3090) ready
-
Cable management
Fixed
Sleeved cables
Sleeved cables
Flat cables
-
Cable length to mainboard (cm)
55
Cable length to first connector (cm)
50
Maximum cable length (cm)
95
All-in-one cable (SATA/PATA/FDD)
Yes
No. of cables
7
ATX-Motherboard (20+4-pin)
1
P8 (CPU)
-
P4+4 (CPU)
1
P4 (CPU)
-
PCI-e 6-pin (GPU)
-
PCI-e 6+2-pin (GPU)
2
PATA
3
SATA
6
FDD (Floppy)
1
External fan connectors
-
Casing
Dimensions without cable (L x W x D), (mm)
150 x 150 x 86
Weight (kg)
2.05
Color
Black
Accessories
Screws
Yes
Cable ties
Yes
User manual languages
DE, EN, ES, FR, PL, RU
