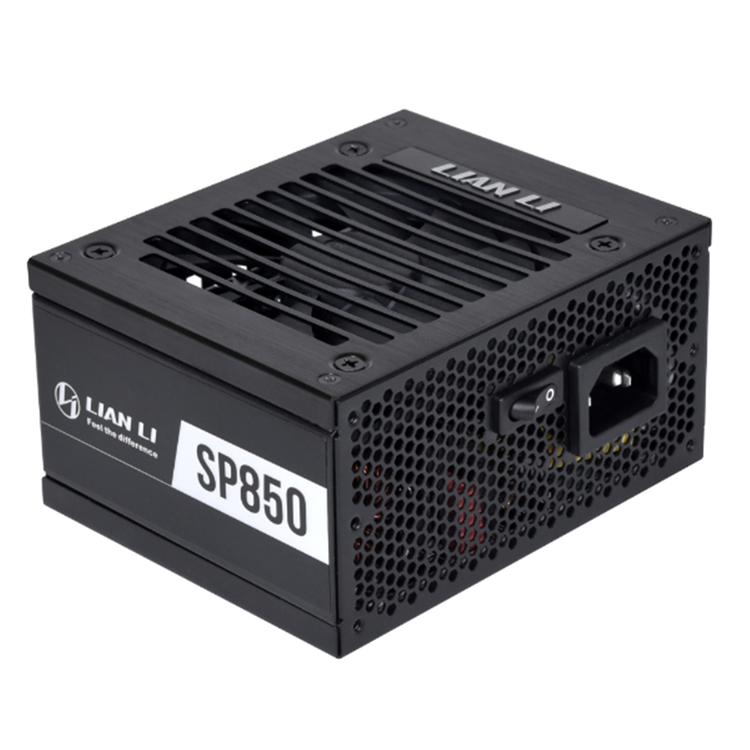

SP850, Performance SFX Form Factor Power Supply
The SP850 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
- 80 PLUS GOLD Efficiency
- Fully modular braided cables for a clean look
- High durability Japanese electrolytic capacitors
- ZERO RPM mode under 40% load for silent operation
- Sleek and classic exterior with brushed aluminum housing
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 12VHPWR connector cable without sideband contact included
80 PLUS GOLD CERTIFICATE
SP850 achieves 91.55% efficiency 115VAC at 50% load, which edges close to the 80PLUS PLATINIUM a requirement at 92% efficiency 115VAC at 50%, ensuring less power wastage.
SP850 COMPOSITION
- Aesthetic - Aluminum Housing
- Silent - Zero RPM mode
- Powerful - 850 Watts
- Perfect Size - SFX Form
- Practical - Fully Modular Design
- Longevity - Japanese Electrolytic Capacitors
COOLING IN SILENCE
To achieve minimal acoustic levels, the SP850 features a 92mm hydraulic bearing fan that operates at zero RPM mode until the PSU reaches 40% load or once the ambient temperature reaches 60°C.
JAPANESE ELECTROLYTIC CAPACITORS
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.
PCIe 5.0 GRAPHIC CARDS READY
A PCIe 5.0 12-pin (12VHPWR connector cable without sideband contact) is included, which is 16 AWG thick to transfer 350W- 400W and doesn't need the use of an adaptor for the up-to-date GPUs.
FULLY MODULAR BRAIDED CABLES
All necessary braided cables are included right out of the box, ensuring reduced cable clutter and a better aesthetic.
MULTI POWER CORD TYPES
SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Over Voltage Protection), OTP (Over Temperature Protection) and inrush current limiter that make the PSU operating in stable condition.
Dimensions
MODEL
SP850
DIMENSIONS
(D)100 mm X (W)63.5mm X (H)125 mm
POWER SUPPLY DESIGN
Fully modular
COLOR
Black / White
MATERIAL
Steel/brushed aluminum housing
FORM FACTOR
SFX
CERTIFICATION
80 PLUS Gold
POWER SUPPLY DESIGN
Fully modular
MAX. DC OUTPUT
850W
COMBINED +3.3V & +5V
100W
COMBINED +12V
840W
INPUT VOLTAGE
100-240Vrms
INPUT FREQUENCY RANGE
50Hz-60Hz
PFC
Active PFC(PF)>0.90 at full load
EFFICIENCY
93.53% MAX
PROTECTIVE CIRCUIT
OCP OVP OTP OPP SCP UVP
CONNECTORS
1 x 24/20-Pin motherboard connector (300mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (600mm) x2pcs 1 x 8/6+2 Pin PCle connector (400mm) x1pcs 2 x 8/6+2 Pin PCle connector (400mm-120mm) x1pcs 4 x SATA connector (120mm120mm-120mm-120mm) x2pcs 4 x 4-Pin Peripheral connector (120mm-120mm-120mm- 120mm) x1pcs 1×12VHPWR connector cable without sideband contact (400mm) × 1pcs
NOISE LEVEL
17.1-40.6DBA
FAN RPM
1000-2800 RPM
BEARING TYPE
HYB
