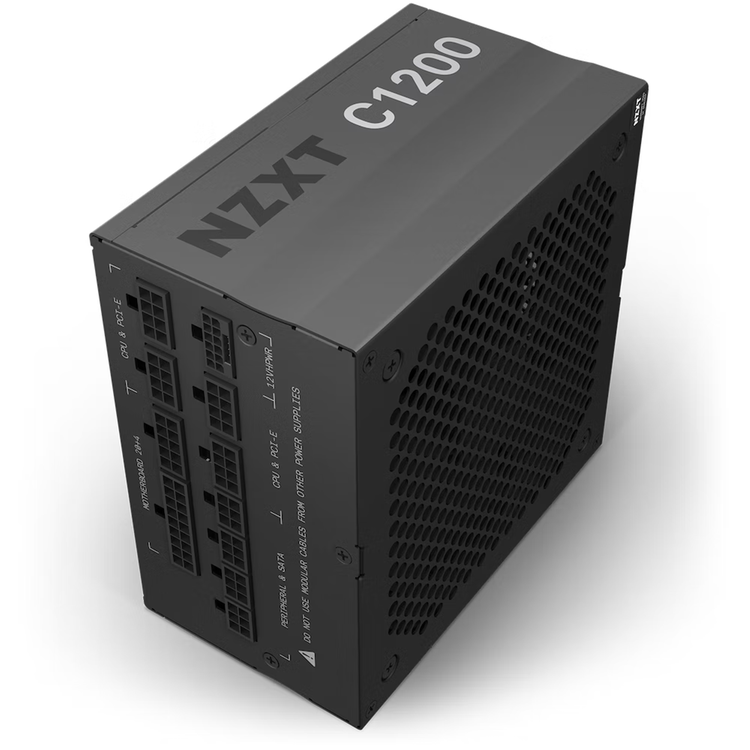

C1200 Gold - 1200W Gold Fully-Modular ATX 3.0 PSU
Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.
- 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
- Built and tested with the strictest standards for trouble-free installation and operation
- 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
- Zero Fan Mode stops the fan when under light loads to reduce system noise
- 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
- Constructed with high-quality Japanese 105°C capacitors
Next-Gen Power
Provides up to 600W of power to PCIe 5.0 GPUs, such as the NVIDIA GeForce RTX 4090 - over a single 16-pin connector.
Future-Proof Design
Built to handle massive power spikes from next-gen GPUs.
High-Quality Components
Constructed with all Japanese 105C-rated capacitors for the highest standard in performance, reliability, and longevity.
Single Cable Connection
Featuring a single 16-pin connection cable—perfect for 40 Series cards. Installation is easier, safer, and less likely to damage parts without requiring any bulky adapters.
Elite Efficiency
With over 90% efficiency at 50% load, the C1200 reduces energy usage to lower monthly costs and extend your PC's lifespan. No wasted energy - it only draws the power your system needs.
Silent Operation
The 135mm PWM fan with a fluid dynamic bearing runs quietly, even at high loads. Zero Fan Mode shuts it off for total silence when under 40% load.
Inside the Box
C1200 Gold x1
24-Pin ATX Power Cable x1
4+4-Pin CPU Power Cables x1
8-Pin CPU Power Cable x1
6+2-pin PCIe Power Cable x2
16-Pin (12+4) 12VHPWR PCIe Cable x1
SATA Cables x3
Peripherals Cables x1
6-32 Screws x4
AC Power Cord x1
OUTPUT CONNECTORS
24-pin ATX power
1
4+4-pin CPU power
1
8-pin CPU Cable
1
6+2-pin PCIe power
2
16-pin (12+4) 12VHPWR PCIe Cable
1
SATA power
8
Peripherals
4
CABLE SPECS
24-pin ATX power
600 mm, Nylon sleeving
4+4-pin CPU power
700 mm, Nylon sleeving
8-Pin CPU Power Cable
700mm, Nylon sleeving
6+2-pin PCIe power
650 + 150 mm, Nylon sleeving
16-Pin (12+4) 12VHPWR PCIe Cable
650mm, Nylon sleeving
SATA power
500 + 150 mm
Peripherals
500 + 150 mm
AC INPUT RATING
100 - 240Vac
14A-7A 50Hz-60Hz
DC OUTPUT RATING
+3.3V and +5V
22A (120W)
+12V
100A (1200W)
-12V
0.3A (3.6W)
5Vsb
3A (15W)
Total
1200W
OPERATION
PF Correction
Active @0.96
MTBF
100,000 hours
Temperature
0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
ENERGY EFFICIENCY
Rating
80 Plus Gold
20% loading
87.5% @115Vac
50% loading
90.5% @115Vac
100% loading
87.5% @115Vac
FAN SPECS
Dimensions
135 x 135 x 25 mm
Speed
0-2300 ± 10% RPM
Airflow
93.02 CFM (Tpy.)
Noise
44.5 dBA max
Bearing
Fluid Dynamic Bearing (FDB)
GENERAL
Dimensions
150 x 150 x 86mm
Material(s)
Steel, PCB and Plastic
Compliance Standard
ATX12V v3.0 / EPS12V v2.92
Regulation & Certification
cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
Model Number
PA-2G1BB
