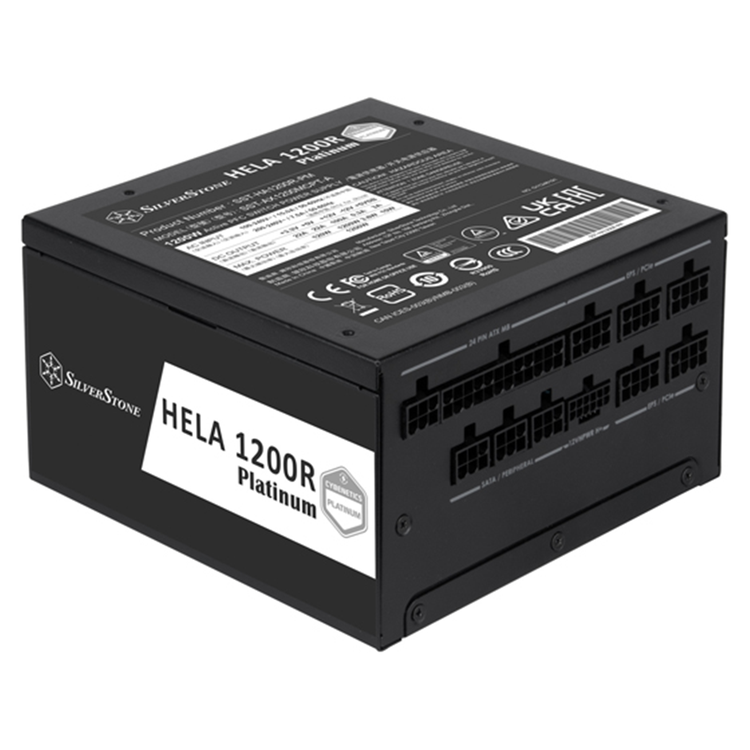

Silverstone HELA HA1200R 1200W ATX 3.0 Plantinum Power Supply
HELA 1200R Platinum
Cybenetics Platinum 1200W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard
- Cybenetics Platinum efficiency certification
- 24/7 continuous power output with 50?operating temperature
- Fully Modular design
- All Japanese electrolytic capacitors
- Ultra silent 135mm FDB fan with semi-fanless function
12VHPWR PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems
Cybenetics Platinum Certified
Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity
Fully modular design with universal EPS / PCIe connector interface
Flat cables have much greater flexibility to allow for tighter folding and management of cable
All Japanese electrolytic capacitors
Ensure reliable power and extended life span
Silent 135mm FDB fan
Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office us
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
This PSU’s motherboard connector includes a 6pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
Product No.
SST-HA1200R-PM
Model (safety certification)
SST-AX1200MCPT-A
Color
Black (lead-free paint)
Max. DC Output
1200W
Power density
620W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 100A 2.5A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% +5/-7% ±5% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 70mV 40mV 40mV
Combined +3.3V & +5V
120W
Combined +12V
1200W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
=87% & <89% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under Voltage Protection
Over Temperature Protection
No load operation
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
6 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
12 x SATA connectors
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy connector
Cooling System
Silent 135mm FDB fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 150mm (D)
5.91" (W) x 3.39" (H) x 5.91" (D)
Weight
2.9 kg
