Raspberry Pi Display 1.3inch OLED for Raspberry Pi Pico, 64x128, SPI/I2C Module
NOTE: Raspberry Pi Pico is NOT included. The pictures are for reference ONLY.

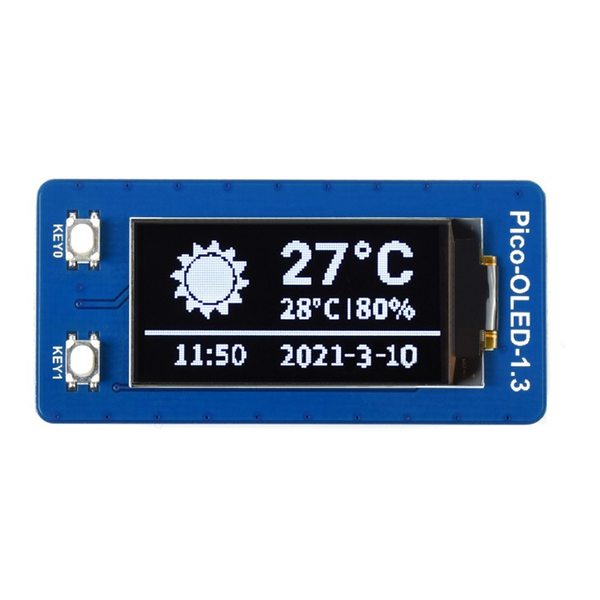

1.3inch OLED Display Module For Raspberry Pi Pico, 64x128 Pixels, SPI/I2C Interface
Features:
- Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
- 2 x user buttons for easy interacting
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
OLED and its controller:
- This OLED integrates the SH1107 controller which has 128x128 bits SRAM, supports 128x128 resolution. The controller features SPI/IIC/ 6800/8080 interface and 256 brightness levels. The resolution of this 1.3inch OLED is only 64x128, only half of the SRAM is used.
- This OLED uses four-line SPI and I2C interface for communicating, which supports higher compatibility and speed.
Protocol:
Note: The MISO pin is hidden, for more details, you can refer to Datasheet Page11.
- CS: Chip selection of the slaver, the chip is activated when CS is Low;
- SI(D1): This is MOSI pin, the pin is used to transmit data from master to slaver;
- SCL(D0)is the SPI clock
- A0: This is the DC pin, it is used to determine the data input, DC=0: command is sent;
- SPI communication has data transfer timing, which is combined by CPHA and CPOL.
- CPOL determines the level of the serial synchronous clock at an idle state. When CPOL = 0, the level is Low. However, CPOL has little effect on the transmission.
- CPHA determines whether data is collected at the first clock edge or at the second clock edge of the serial synchronous clock; when CPHL = 0, data is collected at the first clock edge.
- According to the figure, SCL is high in idle and it starts to transmit data at the second edge. therefore the timing is Mode 3 (0x11). Data is transmitted in MSB format.
User Guides, Resoures, please check HERE
Operating voltage
3.3V
Communication Interface
4-wire SPI, I2C
Display Panel
OLED
Driver
SH1107
Resolution
64×128 pixels
Display size
14.70 × 29.42mm
Pixel size
0.15 × 0.15mm
Dimensions
52.00 × 25.00mm
