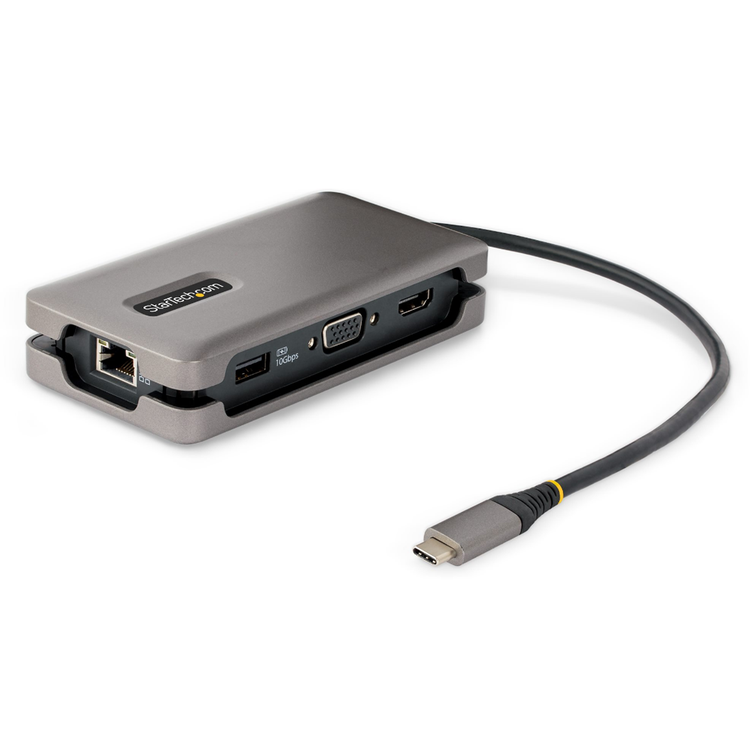

StarTech.com DKT31CVHPD3 USB-C MULTIPORT ADAPTER HDMI/VGA HUB
Connect this USB Type-C Multiport Adapter to a USB-C, USB4, or Thunderbolt 3/4™ laptop to enable single-display 4K 60Hz HDMI 2.0b or 1080p 60Hz VGA video output via DP Alt Mode. The USB-C dock works with USB Type-C laptops or tablets, such as a Chromebook, Dell XPS, or MacBook. It features a 3-Port USB 3.2 Gen 2 (10Gbps) Hub (2x USB-A, 1x USB-C), and Gigabit Ethernet. Connect the laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, to charge the laptop.
Extra-Long Cable with Built-in Cable Manager
The Multiport Adapter features an extra-long attached 12.6in. (32cm) USB-C host cable. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables. The extra-long cable reduces port/connector strain, particularly when laptops are placed on riser stands, or on 2-in-1 devices with raised USB-C ports, such as the Microsoft Surface. In addition, the Multiport Adapter also features an innovative wrap-around cable manager that facilitates tangle-free storage in a laptop bag.
USB 3.2 Gen 2 Hub
Connect one USB-C and two USB-A peripherals to the USB 3.2 Gen 2 (10Gbps) ports.
Multiple Applications
A versatile solution for adding docking station capabilities in an office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone or connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.
USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.
Wired Gigabit Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and Wake-on-LAN (WoL).
- USB-C MINI DOCKING STATION: USB-C to HDMI 2.0b (4K 60Hz) or VGA 1080p for connectivity to a monitor or display, 100W Power Delivery Pass-Through, 3-Port USB 3.2 (10Gbps) hub (2x USB-A, 1x USB-C); Gigabit Ethernet Port (PXE boot/WoL)
- CABLE MANAGEMENT: Thoughtful hideaway tethered design prevents cable clutter; The attached 1ft / 32cm long cable reduces strain on the USB-C laptop connector, while shorter cables common in other adapters create strain on the laptop USB-C connector
- RELIABLE PERFORMANCE: Prevent device dropouts, video flickering, and power overdraw common in other mini docks; Up to 100W PD Pass-Through with 84W for the laptop while reserving 16W for the adapter and attached devices
- UNIVERSAL COMPATIBILITY: Works with all major operating systems (Windows, ChromeOS, macOS, Linux), and all hardware platforms including Intel, Apple M1 / M2, and AMD; Works with USB-C, USB4, Thunderbolt 3 & 4
- CONNECTIVITY TOOLS: Includes Network MAC Address Pass-Through, WiFi Auto Switching, USB Event Monitoring, and Windows Layout Utilities for IT Pro's and IT help-desk support teams; These tools are not included with docks from consumer brands
Connector(s)
External Ports
1 - HDMI (19 pin)
1 - VGA (15 pin, High Density D-Sub)
2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
1 - USB Type-C (24 pin) USB Power Delivery Only
1 - RJ-45
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 55°C (-4°F to 158°F)
Humidity
0% to 85% (non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
No
Displays Supported
1
Interface
USB 3.2 Gen 2 (10 Gbps)
Bus Type
USB-C
Industry Standards
HDMI 2.0b
DisplayPort 1.4
Chipset ID
Realtek - RTD2142
Realtek - RTL8153B
VIA - VL822-Q8
VIA - VL103
Indicators
LED Indicators
1 - Network Link Speed - Green (Network Operating at 1Gbps or 100Mbps), Off (Network Operating at 10Mbps or Lower)
1 - Network Link Status - Solid Amber (Link Detected), Flashing Amber (Link Activity), Off (No Link Detected)
Packaging Information
Package Length
6.7 in [17.0 cm]
Package Width
5.6 in [14.2 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
5.4 oz [154.0 g]
Performance
Maximum Data Transfer Rate
10Gbps
Maximum Digital Resolutions
HDMI: 4K (4096 × 2160) 60Hz
VGA: 1080p (1920 x 1200/1080) 60Hz
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
General Specifications
Maximum Laptop Charging: 84W
Physical Characteristics
Color
Space Gray
Product Length
4.9 in [12.4 cm]
Product Width
2.5 in [6.4 cm]
Product Height
1.0 in [2.5 cm]
Weight of Product
4.6 oz [130.0 g]
Material
Plastic
Cable Length
12.6 in [32 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Delivery
100W
Power Consumption (In Watts)
16W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
macOS 10.15, 11.0, 12.0, 13.0, 14.0
Android™
Linux® Ubuntu 18.04, 20.04
ChromeOS™
What's in the Box
Included in Package
1 - USB-C Multiport Adapter
1 - Quick-Start Guide
