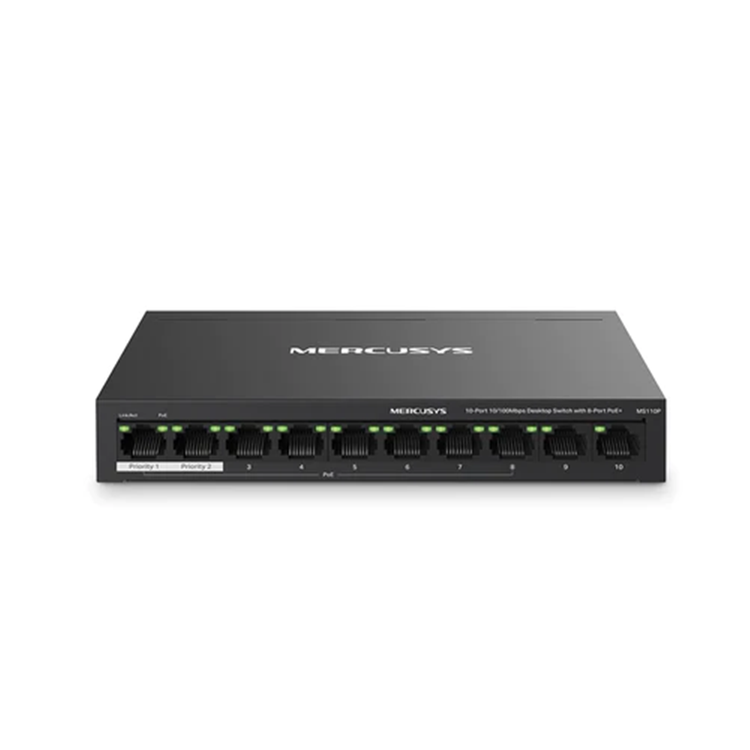

Mercusys MS110P 10-Port Desktop Switch with 8-Port PoE+ (Max 65W),
10-PORT DESKTOP SWITCH WITH 8-PORT POE+
- 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered device
Dimensions (W X D X H)
171*98*27 mm
PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W
Interfaces
10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
Standards and Protocols
IEEE 802.3x Flow Control
Data Rates
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex
Jumbo Frame
2 KB
Mac Address Table
2K
Max Power Consumption
10.064 BTH/h (no PD connected)
263.568 BTH/h(with 65W PD connected)
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
Package Contents
10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
Power Adapter
Quick Installation Guide
