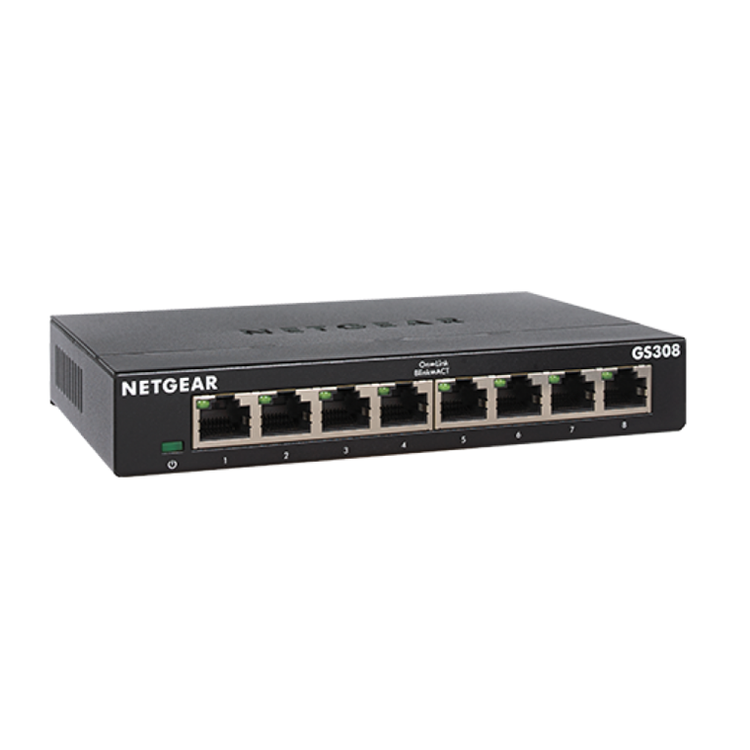

Expanding Wired Connectivity for SOHO Networks
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices.
With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Highlights
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation (except GS348)
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Desktop or wall-mountable (5, 8, 16-port models); GS324 is desktop, wall-mountable, and rack-mountable (rack-mount kit included); GS348 is rackmountable (rack-mount kit included)
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standardsbased devices in the existing network
Example Application - SMALL OFFICE/HOME OFFICE NETWORK DIAGRAM
Download data sheet: https://www.netgear.com/media/300-Series-Unmanaged_tcm148-89226.pdf
Features
10/100/1000Mbps Ports (Auto Uplink)
8
Enclosure
Metal
Connector Type
Metal
Form Factor
Desktop or wall-mountable
Power On/Off Switch
Yes
Performance Specifications
Bandwidth (Non-Blocking)
16 Gbps
Packet Buffer Memory (Dynamically shared across only used ports)
128 KB
Jumbo Frame Support
9,216 bytes
Queue WRR (Weighted Round Robin) Ratio
1:2:4:8
Forwarding Rate (using 64-byte packets) - 1000Mbps Port
1,448,000 pps
Latency (using 64-byte packets) - 1000Mbps Port (average)
< 2.6 µsec
MAC Address Table Size
8K
Auto MDI/MDI-X Cable Detection
Yes
Auto-sensing Half/Full Duplex Switched Ports
Yes
Mean Time Between Failures (MTBF) @ 25° C
3,711,898 hours
LEDs
Per port
Link/Activity
Per device
Power
Quality Of Service (QOS)
Energy Efficient Ethernet (IEEE 802.3az)
Yes
Auto Power Down
Yes
Power/Consumption
DC Input/Power In
12V / 0.7A
Power Consumption (Max and Standby)
3.04W/0.36W
Heat Dissipation (Max and Standby) (BTU/Hr)
10.40 BTU/
1.06 BTU
Physical Specifications
Width x Depth x Height
158 x 101 x 29 mm
(6.2 x 4.0 x 1.1 in)
Weight
0.39 kg
(0.86 lb)
Environmental Specifications
Operating temperature
0° to 40°C (32° to 104°F)
Humidity (relative)
90% maximum relative humidity (RH), non-condensing
Altitude
10,000 ft (3,000 m) maximum
Storage temperature
-20° to 70°C (- 4° to 158°F)
Humidity (relative)
95% maximum relative humidity (RH), non-condensing
