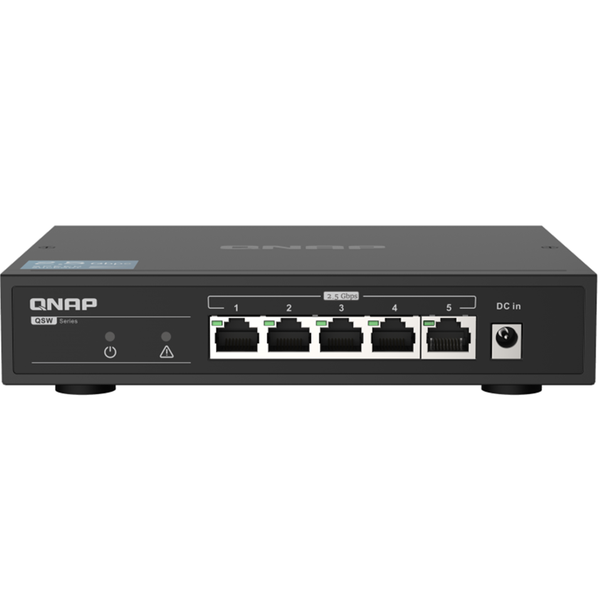

With five 2.5GbE ports, the QNAP QSW-1105-5T switch instantly upgrades your network to take advantage of 2.5GbE-enabled devices and NAS without requiring any new network cables. Featuring a near-silent fanless design and plug-and-play set up, the QSW-1105-5T provides network loop detection and blocking functions, making it easy for you to create an affordable high-speed network environment for your home or business.
2.5GbE connectivity
Immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
Plug and play
No complex settings are required, and auto-negotiation ensures optimal performance.
Loop detection
Automatic loop detection and blocking to ensure continuous network operation.
Silent operation
The unique fanless design with ventilated construction provides near-silent operation.
Up to 2.5 times faster
The QSW-1105-5T has five 2.5GbE ports that support existing Ethernet devices and are ready for next-generation 2.5GbE devices. Whether you are upgrading your network for business or personal use, the QSW-1105-5T provides a solid foundation for enabling faster and smoother productivity and entertainment.
Future-proof your network environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
Affordable network upgrade
Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. You can even use your existing CAT 5e cables to immediately take advantage of higher transfer speeds.
Instantly build a plug-and-play high-speed network
No complex settings are required to use the QSW-1105-5T - simply connect your devices and it’s ready to use. The QSW-1105-5T supports auto-negotiation that optimizes transfer speeds and performance for each connected device.
Loop detection and blocking
The QSW-1105-5T features network loop detection. If a network loop is detected, the QSW-1105-5T automatically locks the looped ports to ensure the network environment quickly resumes normal operation.
Cool and quiet operation
The QSW-1105-5T features a fanless design for near-silent operation. The unique ventilated construction assists in cooling while maintaining high performance.
Management Type
Unmanaged
Number of Ports
5
2.5GbE (RJ45)
5
Power Supply Description
Adapter
Max. Power Consumption
12 W
Input Power Type
DC
Input Voltage Range
12V
MAC Address Table
16K
Total Non-Blocking Throughput
12.5Gbps
Switching Capacity
25Gbps
Fan
Fanless
Supported Standards
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBase-T
IEEE 802.3x Full-Duplex Flow Control
Form Factor
Desktop
LED Indicators
Per Port: Speed/Link/Activity
Loop LED: Loop
Per System: Power/Status
Dimensions (HxWxD)
34 x 180 x 145 mm
Weight (Net)
0.577 kg
Operating Temperature
0°C to 40°C (32°F to 104°F)
Relative Humidity
10% to 90% (non-condensing)
Electromagnetic Compliance
Class B
Jumbo Frames
9K
