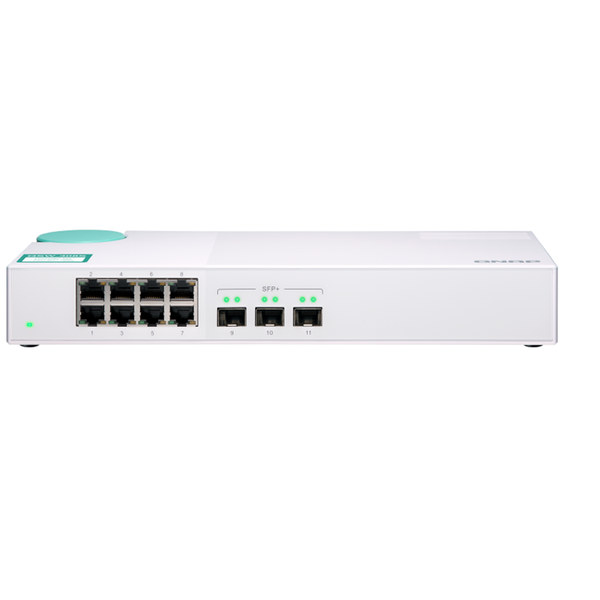

QSW-308S
Cost-effective entry-level 10GbE Switch with 10G SFP+ fiber and Gigabit Ethernet
The QSW-308S is a 3-port 10G SFP+ and 8-port Gigabit Unmanaged Switch, allowing you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price. With its desktop size and silent operation, the QSW-308S perfectly blends into homes and offices while providing high performance, low latency and superb functionality.
10GbE SFP+ connectivity
The QSW-308S provides three 10GbE SFP+ ports and eight Gigabit ports for connecting various devices.
Silent operation
The unique fanless design with ventilated construction provides silent operations while maintaining high performance.
Plug and play
Simply connect the QSW-308S to your devices and it will do the rest. It supports auto-negotiation for optimal speed and duplex detection when connecting different devices.
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-308S provides three 10GbE SFP+ ports and eight Gigabit ports for connecting various devices and enabling a hybrid high-speed network in homes and offices. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-308S is 76Gbps, guaranteeing the full potential of each port.
Note: The 10GbE SFP+ ports are not backward compatible with 1GbE SFP.
Improve your productivity with a 10GbE-enabled QNAP NAS
Many QNAP NAS series are designed with 10GbE readiness, and can be immediately upgraded by purchasing and installing a 10GbE network adapter. QNAP NAS are also available with 10GbE SFP+ and 10GBASE-T as standard to fully support 10GbE high-speed networks, making them beneficial for IOPS-demanding applications such as virtualization, databases, high-resolution video editing, and sharing workflows.
Easily build a High-Speed Network with QNAP Network Adapters
QNAP provides a wide range of network devices to assist business and home users with upgrading their network infrastructure to meet growing bandwidth requirements. QNAP's Thunderbolt 3 to 10GbE Network Adapter provides a quick and budget-friendly method for laptops (and other upgrade-constrained devices) to take advantage of high-speed 10GbE connectivity.
Cool and quiet operation
The QSW-308S features a fanless design for silent operations. The unique ventilated construction assists in cooling while maintaining high performance.
Desktop size for easy use in homes and offices
With a compact and modern design, the QSW-308S fits perfectly alongside other devices in modern digital homes and offices. Featuring a delicate white polished or textured surface design, the QSW-308S helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-308S.
Package Contents
QSW-308S
Power Cord
Power Adapter
Quick Installation Guide (QIG)
Management Type
Unmanaged
Number of Ports
11
10GbE SFP+
3
10G only
Note: Compatibility issues with the Intel X520 ethernet network adapter might cause the ports to randomly switch between port up and port down status.
1GbE (RJ45)
8
Power Supply Description
Adapter
Max. Power Consumption
36W
Input Power Type
AC
Input Voltage Range
100-240VAC, 50/60 Hz
MAC Address Table
16K
Total Non-Blocking Throughput
38Gbps
Switching Capacity
76Gbps
Fan
Fanless
Supported Standards
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3an 10GBASE-T
Form Factor
Desktop
LED Indicators
Per Port: Speed/Link/Activity
Per System: Power/Status
Dimensions (HxWxD)
42.5 × 290 × 127 mm
Weight (Net)
0.74 kg
Weight (Gross)
1.16 kg
Operating Temperature
0°C to 40°C (32°F to 104°F)
Relative Humidity
5~95% Non-condensing
Certifications
CE, FCC, VCCI, BSMI RCM, CCC
Electromagnetic Compliance
CLASS B, UL62368
Jumbo Frames
10k
