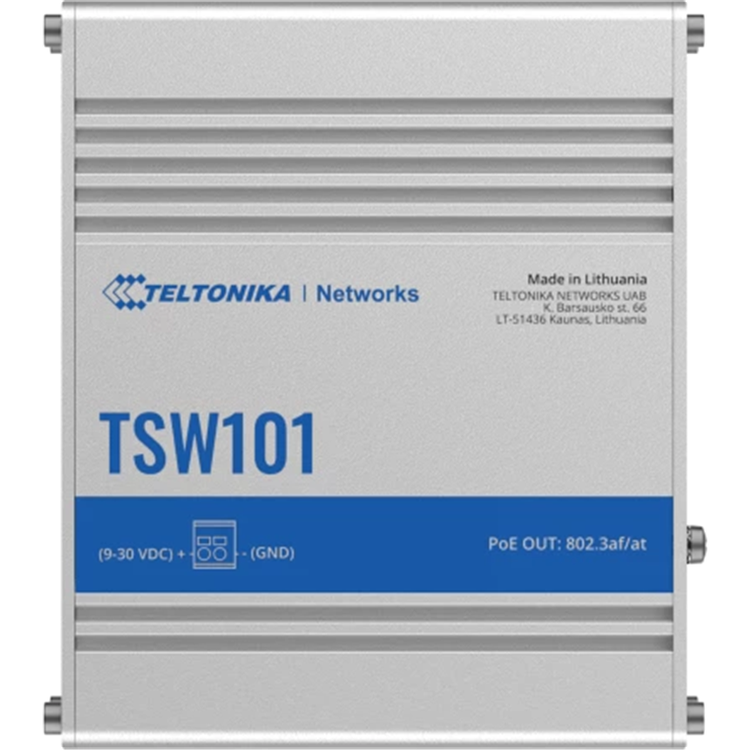

Teltonika TSW101 4+1 port gigabit unmanaged DC to 802.3af/at PoE Switch
TSW101 - AUTOMOTIVE POE+ SWITCH
Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.
PLUG AND PLAY
No configuration needed
POE+
4 x PoE+ ports with 802.3af and 802.3at support
GIGABIT ETHERNET
5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
INDUSTRIAL DESIGN
Rugged aluminum housing
ETHERNET
LAN
5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
POE
PoE ports
Port 1- 4
PoE standards
802.3af and 802.3at
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
60 W
Maximum Ethernet cable length
100 m
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)
10 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
POWER
Connector
2-pin industrial DC power socket
Input voltage range
9 – 30 VDC
Input voltage range for PoE
9 – 30 VDC
Power consumption
Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W
PHYSICAL INTERFACES
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x LAN status LEDs
Power
1 x 2-pin industrial DC power socket
Other
1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material
Aluminum housing
Dimensions (W x H x D)
115 x 32 x 95 mm
Weight
384 g
Mounting options
DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
Regulatory
CE, REACH, RoHS, WEEE
TSW101 CE
TSW101 UKCA
TSW101 FCC
TSW101 IC
TSW101 CB
TSW101 RCM
E-Mark
SAFETY
Standards
EN IEC 62368-1:2020+A11:2020
