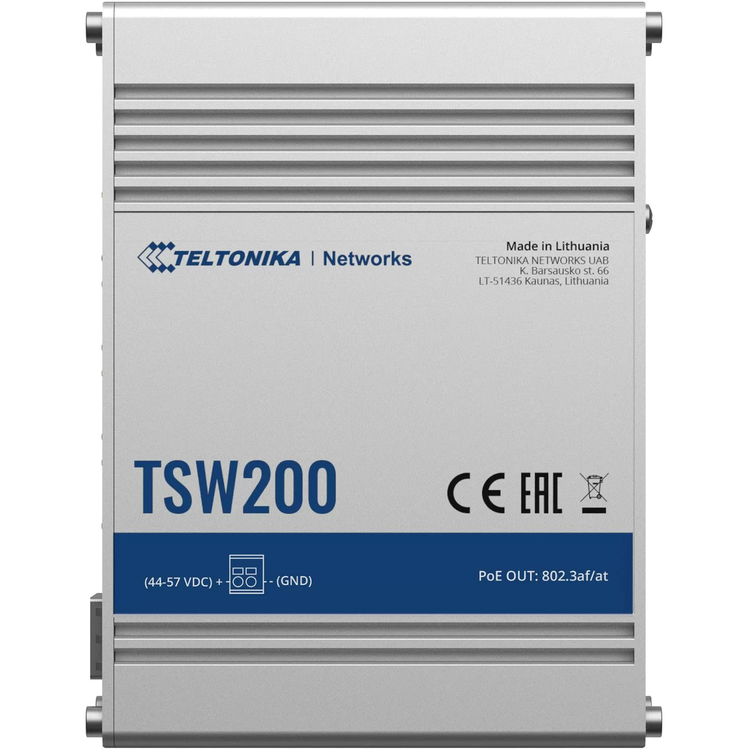

Teltonika TSW200 8 Port Unmanaged Industrial Gigabit PoE+ Switch
TSW200 - INDUSTRIAL UNMANAGED POE+ SWITCH
POE+
8x PoE ports with 802.3af and 802.3at support
SFP
2 x SFP ports for long-range Fiber-optic communication
ETHERNET
8 x Gigabit Ethernet with speeds up to 1000 Mbps
POWER BUDGET
Total power budget at PSE up to 240 W
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
MEET THE TSW200
TSW200 is industrial unmanaged switch from Teltonika Networks.
TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
ETHERNET
LAN
8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber
2 x SFP ports
POE
PoE ports
Port 1 - 8
PoE standards
802.3af and 802.3at
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
240 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)
20 Gbps
Packet buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
POWER
Connector
2 pin industrial DC power socket
Input voltage range
7-57 VDC
Input voltage range for PoE
44-57 VDC
Power consumption (idle/max no PoE/max)
1,81 W/5.5 W/245.5 W
PHYSICAL INTERFACES (PORTS, LEDS)
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fiber
2 x SFP ports
Status LED’s
1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
Power
1 x 2 pin industrial DC power socket
Ground
1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material
Full aluminum housing
Dimensions (W x H x D)
132 x 44.2 x 95.1 mm
Weight
456 g
Mounting
DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
Operating temperature
-40 °C to +75 °C
Operating humidity
10 % to 90 % non condensing
Ingress Protection Rating
IP30
