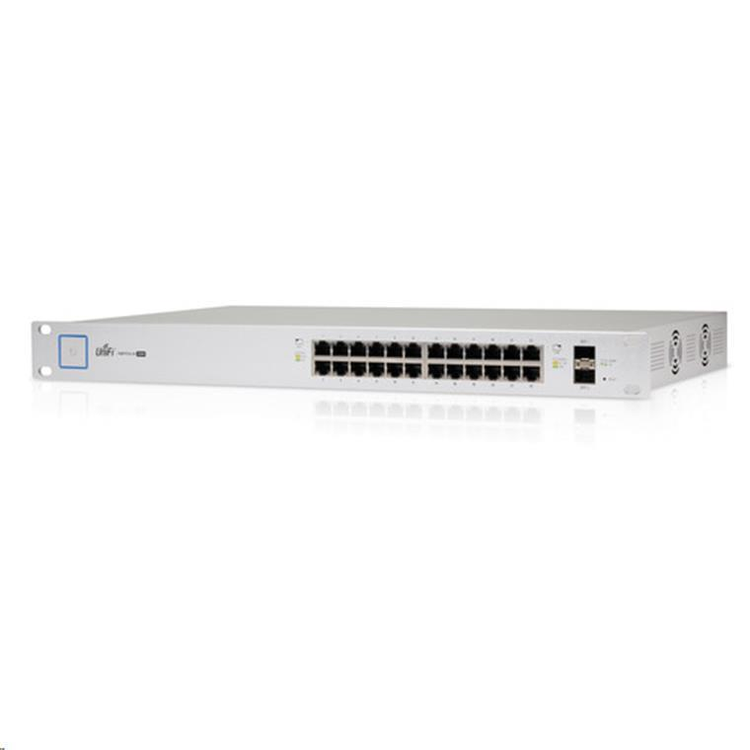

Ubiquiti UniFi Switch US-24-250W 24-Port Gigabit Managed PoE+ Switch
Ubiquiti Networks UniFi Managed PoE+ Gigabit 24 Port Switch with SFP (250W)
With 24 auto-sensing Gigabit Ethernet ports, the UniFi Managed PoE+ Gigabit 24 Port Switch with SFP from Ubiquiti Networks is capable of providing a stable, reliable network connection to a large number of Ethernet enabled devices. Add in 802.3af/at PoE compatibility and 250W of available power, and this managed PoE+ switch is capable of powering a variety of PoE compatible network components such as access points, VoIP phones, and much more. Along with Gigabit Ethernet connectivity users can connect high speed storage devices to either of the two SFP ports. Once configured, Ubiquiti's own UniFi controller software makes network configuration and management simple as you can mange PoE settings, operation modes, VLAN configuration, storm control settings per port, and much more.
- Auto-sensing IEEE 802.3af/at PoE
- 24 x Gigabit RJ45 ports, 2 x SFP ports
- 1 Serial console port (reserved for future use)
- Non-blocking throughput of up to 26 Gbps
- Switching capacity: 52 Gbps
- Forwarding rate of up to 38.69 Mpps
- Maximum power consumption of 250W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Rack mountable
- Designed for convenient management, the UniFi Controller software (not included) allows administrators to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface.
Total Non-Blocking Throughput
26 Gbps
Switching Capacity
52 Gbps
Forwarding Rate
38.69 Mpps
Maximum Power Consumption
250 W
Power Method
100 to 240 VAC, 50 to 60 Hz, Universal Input
Power Supply
AC/DC, Internal, 250 W DC
LEDs
RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity
Ethernet Networking Interfaces
24 x 10/100/1000 Mb/s RJ45 Ethernet Ports
2 x 1 Gbps SFP Ethernet Ports
Management Interface
1 x RJ45 Serial Port (Reserved for Future Use), Ethernet In/Out Band
Certifications
CE, FCC, IC
Rackmount
Yes, 1U High
ESD/EMP Protection
Air: ±24 kV, Contact: ±24 kV
Shock and Vibration
ETSI300-019-1.4 Standard
PoE
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24 VDC Passive PoE (Pins 4, 5+; 7, 8-) Maximum PoE+ Wattage per Port by PSE: 34.2 W
Voltage Range
802.3at Mode, 50 to 57 V
Maximum PoE Wattage Per Data Port
17 W
Voltage Range
20 to 27 V
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8
Java Runtime Environment 1.6 (or above)
Web Browser: Mozilla Firefox, Google Chrome, or Microsoft Internet Explorer 8 (or above)
Operating Temperature
23 to 104°F (-5 to 40°C)
Operating Humidity
5 to 95%, non-condensing
Dimensions
19.1 x 1.75 x 11.24" (485.04 x 44.45 x 285.6 mm)
Weight
8.16 lb (3.7 kg)
