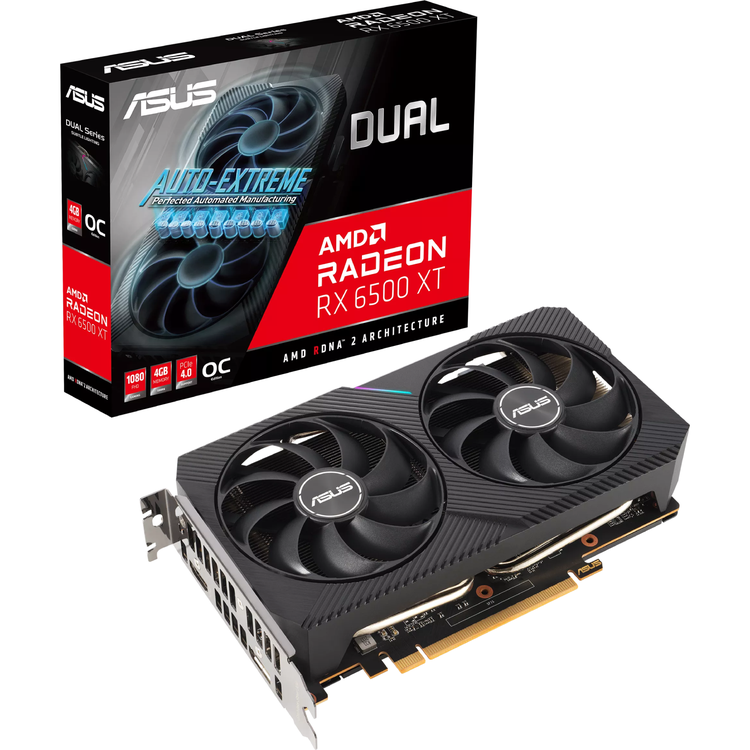

ASUS Dual Radeon™ RX 6500 XT OC Edition
ASUS Dual Radeon™ RX 6500 XT OC Edition 4GB GDDR6 with two powerful Axial-tech fans and a 2-slot design for broad compatibility.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- A 2-slot Design maximizes compatibility and cooling efficiency for superior performance in small chassis.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- Auto-Extreme Technology uses automation to enhance reliability.
- A protective backplate prevents PCB flex and trace damage.
2x Fans. 2x Fun.
Featuring the latest AMD RDNA™ 2 architecture, ASUS Dual Radeon™ RX 6500 XT fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Axial-tech Fan Design - Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology - Quiet intelligence
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 52 degrees and power consumption is low.
Dual Ball Fan Bearings - 2x longer lifespan
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
2-slot Design - Sink your heat into this
A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.
Auto-Extreme Technology - Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Protective Backplate - That's so metal!
The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.
Stainless Steel Bracket - Steel yourself
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that is harder and more resistant to corrosion.
GPU Tweak II - Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
AMD Radeon™ Software - Change the way you game
The latest Radeon™ Software unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.
144-hour Validation Program - “Extensive” may be an understatement
Each card must meet rigorous performance and reliability standards before it ships. Performance and stress tests are run with the latest chart-topping titles like Fortnite, League of Legends, Overwatch, and PlayerUnknown's Battlegrounds. We also carry out reliability trials that include a 144-hour stability test and a series of 3DMark benchmarking runs to ensure the card performs well when pushed to the limits.
Subtle Lighting - A bit lit
The shroud features a subtle illuminated strip that creates a stylish accent for your build.
PERFORMANCE TO STEP UP YOUR GAME
Introducing AMD Radeon™ RX 6500 XT graphics cards, featuring the breakthrough AMD RDNA™ 2 architecture and engineered to deliver great gaming performance with remarkable efficiency. Blaze a trail into tomorrow, dive into 1080P gaming, enjoy vivid virtual worlds, and elevated experiences with the power of next-generation graphics.
Intense 1080p Performance
AMD Radeon™ RX 6500 XT graphics cards deliver serious 1080p gaming and impressive frame rates. The power of AMD RDNA™ 2 architecture is unleashed with up to 16 powerful graphics compute units, coupled with all ultra-high bandwidth AMD Infinity Cache™, and up to 4GB of dedicated GDDR6 memory.
?Vivid Visuals
With immersive gaming technologies and support for DirectX® 12 Ultimate, AMD Radeon™ RX 6500 XT graphics cards draw you into the action. Experience gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX™ technology features, optimized for AMD RDNA™ 2 architecture.
?Get A Boost In Frames For Your Games
AMD FidelityFX™ Super Resolution (FSR) technology boosts your frame rates by 2.4X on average across select FidelityFX Super Resolution supported games2 with high-quality, high-resolution gaming experiences delivered by AMD Radeon™ RX 6000 Series graphics cards. Optimize your gaming experience between four presets, ranging from best visual fidelity to maximum performance.
?The Best Gaming Experience For The Best Gaming Os
AMD Radeon™ graphics with Windows 11 enables the ultimate gaming experience through superior graphics, amazing performance, optimized security features. With support for DirectX® 12 Ultimate, Auto HDR, AMD Radeon graphics, and Radeon™ software all stand ready to supercharge your gaming experience with Windows 11.
Graphic Engine
Radeon RX 6500 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
4GB GDDR6
Stream Processors
1024
Memory Interface
64-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
2
NVlink/ Crossfire Support
Yes
Accessories
1 x Collection Card
1 x Speedsetup Manual
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
201 x 128 x 40 mm
7.9 x 5.03 x 1.57 inch
Recommended PSU
500W
Power Connectors
1 x 6-pin
Slot
2 Slot
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Crossfire Support for DirecX® 12 and Vulkan®
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload.
