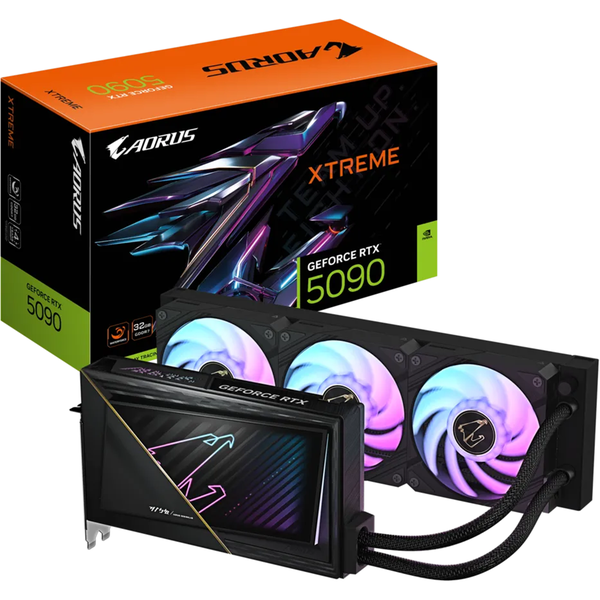

Gigabyte NVIDIA GeForce RTX 5090 Aorus Extreme Waterforce 32GB GDDR7 Graphics Card
AORUS GeForce RTX™ 5090 XTREME WATERFORCE 32G - Powered by GeForce RTX™ 5090- Integrated with 32GB GDDR7 512bit memory interface- WATERFORCE all-in-one cooling system- Liquid metal thermal grease for GPU- Server-grade thermal conductive gel- 360mm radiator with three120mm ARGB fans- RGB Lighting- Protective metal back plate
NVIDIA Blackwell Architecture - The Ultimate Platform for Gamers and Creators Fifth-Gen Tensor CoresMax AI performance with FP4 and DLSS 4 New Streaming MultiprocessorsOptimized for neural shaders Fourth-Gen Ray Tracing CoresBuilt for Mega Geometry AI-Enhanced Graphics and PerformanceNVIDIA DLSS 4 with Multi Frame Generation Game-Winning ResponsivenessNVIDIA Reflex 2 with Frame Warp True-to-Life GraphicsFull ray tracing with neural rendering Digital Humans and AI AssistantsNVIDIA ACE Accelerate Your CreativityNVIDIA Studio creator tools and technology Enhance Any Video with AINVIDIA Broadcast and ninth-gen NVIDIA Encoder Performance and ReliabilityNVIDIA app with Game Ready and Studio Drivers The Ultimate Gaming Display TechnologiesNVIDIA G-SYNC
WATERFORCE COOLING SYSTEM The ideal way for PC enthusiasts to enjoy the benefits of water cooling without complicated installations. AORUS provides an all-around cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.
OPTIMIZED 360MM ALUMINUM RADIATOR The triple-sized radiators and fins increase the surface area and volume for thermal, making the graphics card more stable and cooler under high overclocks.
3X 120MM ARGB FANS The triple-fan design can generate more airflow for better heat dissipation, delivering a powerful cooling and quiet gaming experience. The ARGB fans lights also can choose various light effects via GIGABYTE CONTROL CENTER (GCC).
DOUBLE BALL BEARING The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
LIQUID METAL THERMAL GREASE FOR GPU To address the thermal demands of high-wattage GPU, we utilize liquid metal thermal grease, which offers up to 10X the thermal conductivity coefficient of traditional silicon grease. This maintains low GPU temperature and effectively reduces temperature surge during power draw fluctuation. The multiple layers of protection, including PCB coating, UV resin, and multiple fences, prevent liquid metal leakage and ensure stable and reliable operation. SERVER-GRADE THERMAL CONDUCTIVE GEL To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads. LARGE COPPER BASE PLATE Without any extra fan on the card, WATERFORCE provides the best cooling solution for the GPU/VRAM/MOSFET. The copper plate efficiently dissipates the heat to result in a real silent environment.
SUPERIOR WATER CHANNEL DESIGN The water channel extends to the MOSFET area, allowing the liquid to dissipate the heat more efficiently. The graphics card not only takes care of the cooling on the GPU but also other critical components for superior performance and stability.
EASY INSTALLATION With the pre-assembled water pipe and pump, users can easily install the graphics card without leakage concerns.
BRAIDED FEP TUBES With nearly no moisture absorption, high thermal stability and high pressure tolerance, the sturdy FEP tubes greatly enhance product life and durability.
PROTECTIVE METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
POWER INDICATOR When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
SUPERIOR CRAFTSMANSHIP EXTREME OVERCLOCKINGThe graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card. ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life. PCB COATINGDust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.Moisture resistant - prevents unwanted conduction paths and board damage.Corrosion resistant - protects from salt spray, humidity, and corrosion. FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. GIGABYTE CONTROL CENTER GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
- Graphics Processing
- GeForce RTX™ 5090
- Core Clock
- TBD
- CUDA® Cores
- TBD
- Memory Clock
- 28 Gbps
- Memory Size
- 32 GB
- Memory Type
- GDDR7
- Memory Bus
- 512 bit
- Card Bus
- PCI-E 5.0
- Digital max resolution
- 7680 x 4320
- Multi-view
- 4
- Card size
- TBD
- PCB Form
- ATX
- DirectX
- DirectX 12 API
- OpenGL
- OpenGL 4.6
- Recommended PSU
- TBD
- Power Connectors
- 16 pin*1
- Output
- DisplayPort 2.1a *3
- HDMI 2.1b *1
- Accessories
- 1. Quick guide
- 2. Warranty notice
- 3. 1x 12V-2x6 to 4x PCIe 8pin adapter
- 4. AORUS identity stickers
