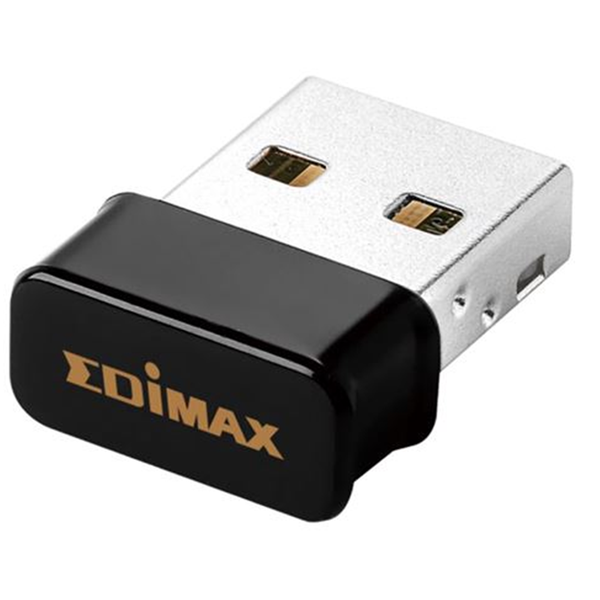

Edimax EW-7611ULBV2 N150 Wireless NANO USB Adapter + Bluetooth 4.2
The EW-7611ULB V2 is a nano-sized 2-in-1 combo USB Wi-Fi adapter with Bluetooth 4.2 that supports Wi-Fi speeds of up to 150Mbps for Internet access and direct connection to Bluetooth devices. This device allows you to utilize the wireless Wi-Fi on your laptop or desktop to access the internet and the Bluetooth technology to pair with surrounding headsets and speakers, making it easy to keep your workspace tidy and free of unsightly wires. Moreover, the compact design of this device allows you to easily plug it into an embedded system without blocking any surrounding USB ports, allowing for IoT capabilities on your embedded system.
- 2-in-1: Supports both Wi-Fi 4 and Bluetooth 4.2 simultaneously
- Bluetooth 4.2: BQB Certified
- Bluetooth Dual Mode: Supports Classic (BR/EDR) and LE (Low Energy) modes, with speeds of up to 3Mbps and 1Mbps, respectively
- Wi-Fi Compatibility: The Wi-Fi is compatible with 802.11 b/g/n, with speeds of up to 150Mbps
- Wi-Fi Security: High-level Wi-Fi security is supported, including WPA3-SAE (Personal), WPA2, WPA, WEP, and 802.1X
- Application: IoT in embedded systems and entertainment/control in desktop and laptop
- Supported OS: Windows and Linux
2-in-1 Wi-Fi and Bluetooth Combo
Supporting Wi-Fi 802.11n and Bluetooth 4.2 in just one small gadget, the EW-7611ULB V2 allows you to connect to the Internet without staying in a fixed position and to connect to a cordless mouse, keyboard, printers, or speakers all at the same time simply by inserting it into your desktop or laptop.
Bluetooth Low Energy (LE) and Versatile IoT Extension
The EW-7611ULB V2 features advanced dual-mode Bluetooth LE (Low Energy). It not only provides the best wireless energy-saving technology but also cares for the environment and your pocket by saving on your electric bills. You can integrate it into the embedded system for commission purposes and then activate a Wi-Fi connection to empower equipment with IoT function to extend the application.
BQB Certification
The EW-7611ULB V2 is BQB certified, allowing users to get rid of interoperability chores and pair with headsets and speakers on desktops or laptops or even embedded system equipment via a mobile phone. The Bluetooth logo is only available for products that have passed the Bluetooth qualification process, so high compatibility and quick connections are expected.
Tiny and Stealthy Design
The nano-sized adapter is small and sleek, so you can attach the EW-7611ULB V2 to your embedded system or battery-powered devices without worrying about space occupation. Even though it’s tiny, like it isn't there at all, it’s still powerful and convenient to carry with your laptop for work and travel.
HARDWARE
Interface
1 x USB 2.0 Type A
LED Indicator
1 x Dual-Color LED (Link/Act/WPS) for Wi-Fi and Bluetooth
Antenna
1 x Internal Antenna (1T1R)
Dimensions
18.9 (L) x 14.9 (W) x 7.1 (H) mm
Weight
3g
WIRELESS
Standards
2.4GHz : IEEE 802.11 b/g/n
2.4GHz : Bluetooth 4.2, 4.0, 2.1
Frequency Band
2.4GHz: 2.4000~2.4835GHz
*Subject to local regulations.
Maximum Data Rate/Speed
11b : 11Mbps
11g : 54Mbps
11n : 150Mbps
Bluetooth BR/EDR : 3Mbps
Bluetooth LE : 1Mbps
Transmit Power
2.4GHz:
11b(11Mbps) : 17dBm±1.5dBm
11g(54Mbps) : 14dBm±1.5dBm
11n(20MHz, MCS7) : 13dBm±1.5dBm
11n(40MHz, MCS7) : 13dBm±1.5dBm
Receiver Sensitivity
2.4GHz:
11b(11Mbps) : -82dBm±2dBm
11g(54Mbps) : -68dBm±2dBm
11n(20MHz, MCS7) : -66dBm±2dBm
11n(40MHz, MCS7) : -64dBm±2dBm
Security
WPA3-SAE(Personal), WPA2, WPA, WEP and 802.1x
Software WPS (Wi-Fi Protected Setup, driver installation required.)
OTHERS
Supported Operating System
Windows 7/8/8.1/10/11 ( Wi-Fi & Bluetooth )
Linux kernel 4.4 ~ 5.11 ( Wi-Fi & Bluetooth)
*Additional version information may be announced on the EDIMAX website.
Environmental Condition
Temperature:
•Operating: 0~40°C (32~104°F)
•Storage: -20~65°C (-4~149°F)
Humidity:
•Operating: 10~90% (Non-condensing)
•Storage: 10~90% (Non-condensing)
Certification
BQB, CE , FCC, IC, RCM, WPC
Note
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
- Interface
- 1 x USB 2.0 Type A
- LED Indicator
- 1 x Dual-Color LED (Link/Act/WPS) for Wi-Fi and Bluetooth
- Antenna
- 1 x Internal Antenna (1T1R)
- Dimensions
- 18.9 (L) x 14.9 (W) x 7.1 (H) mm
- Weight
- 3g
- Standards
- 2.4GHz : IEEE 802.11 b/g/n
- 2.4GHz : Bluetooth 4.2, 4.0, 2.1
- Frequency Band
- 2.4GHz: 2.4000~2.4835GHz
- *Subject to local regulations.
- Maximum Data Rate/Speed
- 11b : 11Mbps
- 11g : 54Mbps
- 11n : 150Mbps
- Bluetooth BR/EDR : 3Mbps
- Bluetooth LE : 1Mbps
- Transmit Power
- 2.4GHz:
- 11b(11Mbps) : 17dBm±1.5dBm
- 11g(54Mbps) : 14dBm±1.5dBm
- 11n(20MHz, MCS7) : 13dBm±1.5dBm
- 11n(40MHz, MCS7) : 13dBm±1.5dBm
- Receiver Sensitivity
- 2.4GHz:
- 11b(11Mbps) : -82dBm±2dBm
- 11g(54Mbps) : -68dBm±2dBm
- 11n(20MHz, MCS7) : -66dBm±2dBm
- 11n(40MHz, MCS7) : -64dBm±2dBm
- Security
- WPA3-SAE(Personal), WPA2, WPA, WEP and 802.1x
- Software WPS (Wi-Fi Protected Setup, driver installation required.)
- Supported Operating System
- Windows 7/8/8.1/10/11 ( Wi-Fi & Bluetooth )
- Linux kernel 4.4 ~ 5.11 ( Wi-Fi & Bluetooth)
- *Additional version information may be announced on the EDIMAX website.
- Environmental Condition
- Temperature:
- Operating: 0~40°C (32~104°F)
- Storage: -20~65°C (-4~149°F)
- Humidity:
- Operating: 10~90% (Non-condensing)
- Storage: 10~90% (Non-condensing)
- Certification
- BQB, CE , FCC, IC, RCM, WPC
- Note
- *Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
- *Actual viewing resolution and frame rate of network cameras depend on connection speed.
