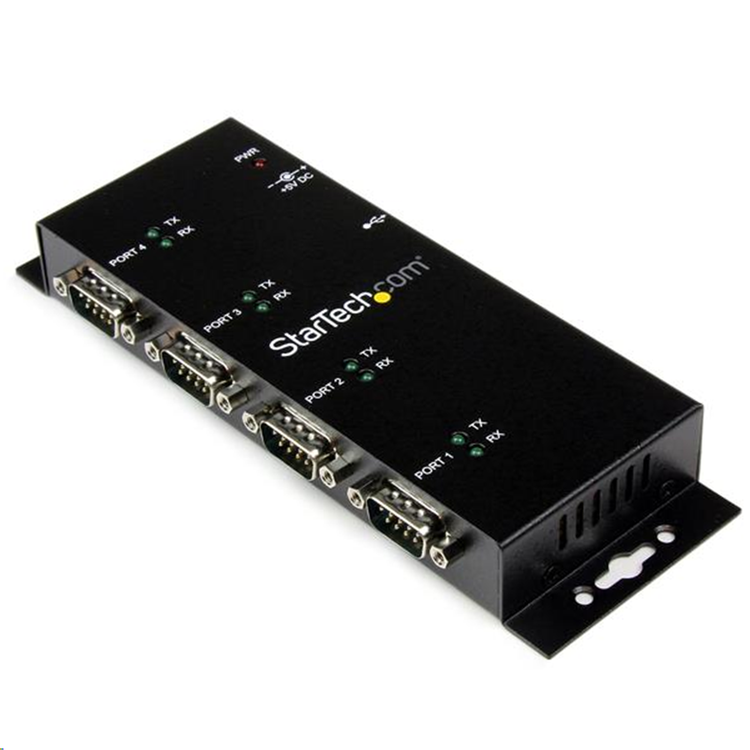

StarTech.com ICUSB2324I 4 Port USB to DB9 RS232 Serial Adapter
4 Port USB to DB9 RS232 Serial Adapter Hub - Industrial DIN Rail and Wall Mountable
The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices. Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations. This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required
Hardware
Bus Type
USB 2.0
Chipset ID
FTDI FT4232HL
Interface
Serial
Port Style
External Hub
Ports
4
Performance
Data Bits
7, 8
FIFO
256 Bytes
Max Baud Rate
921.6 Kbps
Maximum Data Transfer Rate
921.6Kbps
MTBF
282713.5 hours
Parity
Odd, Even, Mark, Space, None
Serial Protocol
RS-232
Stop Bits
1, 2
Connector(s)
Connector Type(s)
1 - USB B (4 pin) Female
4 - DB-9 (9 pin, D-Sub) Male
Software
OS Compatibility
Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
Indicators
LED Indicators
4 - Each, Tx/Rx Activity indicators
Power
Plug Type
M
Power Source
USB-Powered
Included in Package
1 - USB to RS-232 Serial Adapter
1 - DIN rail kit
1 - 6 ft USB A to B cable
1 - Driver CD
1 - Instruction Manual
