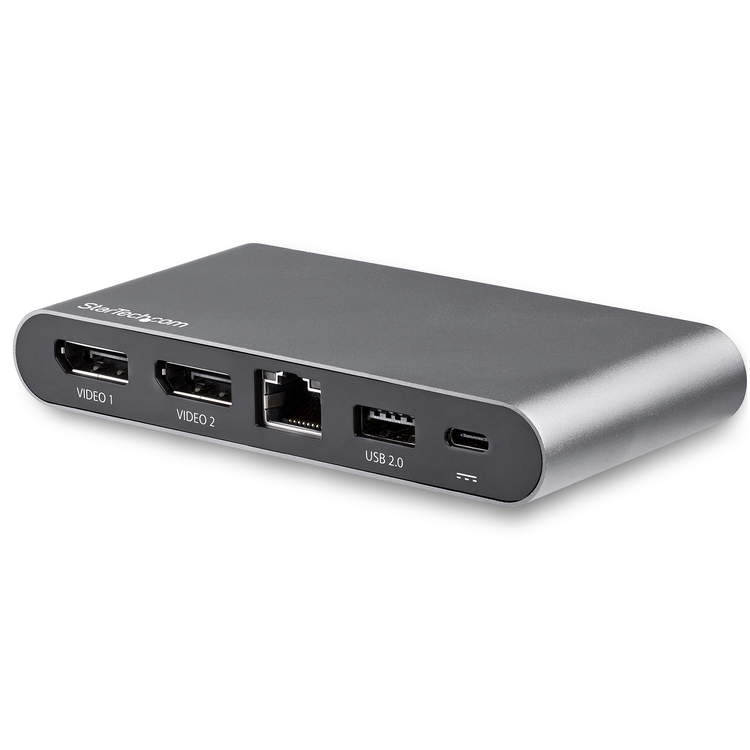

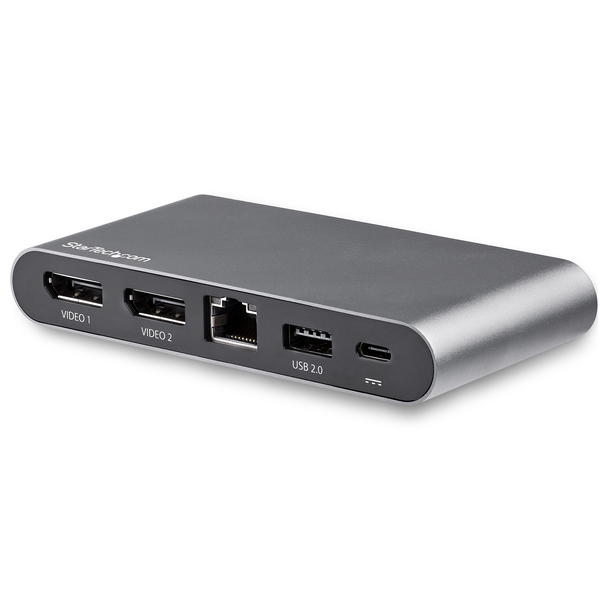

StarTech.com DK30C2DAGPD USB C Dock - 4K Dual Monitor DisplayPort
This USB-C multiport adapter turns your Windows® laptop into a portable workstation. The USB-C to dual DisplayPort adapter connects your USB-C laptop to two DisplayPort monitors, letting you power through work faster or make presentations with different views on two displays. It gives you two USB-A ports, a Gigabit Ethernet port, a DP Alt Mode Switch, and laptop charging.
Laptop Charging with PD 3.0
Through 100W?Power Delivery?3.0,?the?USB Type-C to DisplayPort adapter powers itself as well as your laptop and any attached peripherals, with up to 85W laptop charging when connected to a USB-C power adapter.?PD?3.0 features Fast Role Swap to prevent USB data disruption when?you?unplug?the power adapter to?switch?power sources (USB-C?power adapter to?bus power).?
Connect to Dual DP Monitors?with Flexible Resolution Options
The USB-C video adapter extends your laptop screen to?dual DisplayPort displays. Using the DP Alt Mode switch, you can choose between higher display resolution or faster USB speed to meet your needs, for desktop or portable use. Choose between: dual 4K30 (or single 4K60) resolution with USB 2.0 speed, or dual 1080p (or single 4K30) resolution with USB 3.0 speed.
The maximum Ethernet speed is 1000 Mbps in USB 3.0 mode, and 100 Mbps in USB 2.0 mode.
Connect?USB?Devices?
The?USB-C hub with DisplayPort gives you two?USB-A ports (one USB 3.0/USB 2.0, and one USB 2.0).
Reliable?Network?Connectivity?
The GbE port ensures reliable network access.?A 1 m USB-C cable is included for set-up flexibility.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.?
Applications
- Boardroom presentations, with two display outputs
- Create a two-monitor workstation, cost-effectively
HARDWARE
4K Support
Yes
Bus Type
USB-C
Chipset ID
VIA/VLI - VL102
VIA/VLI - VL170
VIA/VLI - VL817
MegaChips - STDP4320
RealTek - RTL8153
Displays Supported
2
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
PERFORMANCE
Auto MDIX
Yes
Full Duplex Support
Yes
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
Dual DisplayPort displays: Up to 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz
Single DisplayPort display: Up to 4096 x 2160p @ 60Hz or 3840 x 2160p @ 60Hz
Single UltraWide DisplayPort display - Up to 3440 x 1440p @ 60 Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
CONNECTOR(S)
Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male
1 - USB-C (24 pin) USB Power Delivery only Female
2 - DisplayPort (20 pin) Female
1 - RJ-45 Female
1 - USB Type-A (9 pin) USB 3.0 Female
1 - USB Type-A (4 pin) USB 2.0 Female
SOFTWARE
OS Compatibility
Windows® 7, 8, 8.1, 10
SPECIAL NOTES / REQUIREMENTS
Note
For a dual-monitor configuration the host laptop must support MST.
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode.
The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
The multiport adapter provides limited Chrome support (no MST support; Ethernet only when using bus power).
The multiport adapter provides limited Android support (no MST support).
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop’s USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 85W charging available for laptop charging. For more information on your laptop’s charging requirements, refer to the manufacturer of your laptop.
Through support of USB Power Delivery?3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when?you?unplug?to?switch?power sources (USB-C?power adapter to?bus power).
In USB 3.0 mode, the maximum Ethernet speed is 1000 Mbps. In USB 2.0 mode, the maximum Ethernet speed is 100 Mbps.
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode)
Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
POWER
Laptop Charging via Power Delivery
85W
Power Consumption (In Watts)
15W
Power Delivery
100W
Power Source
Bus Powered and Host USB-C Power Adapter
ENVIRONMENTAL
Humidity
0~95% RH (Non-condensing)
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Plastic
Product Height
18.8 mm [0.7 in]
Product Length
120 mm [4.7 in]
Product Weight
200 g [7.1 oz]
Product Width
60 mm [2.4 in]
