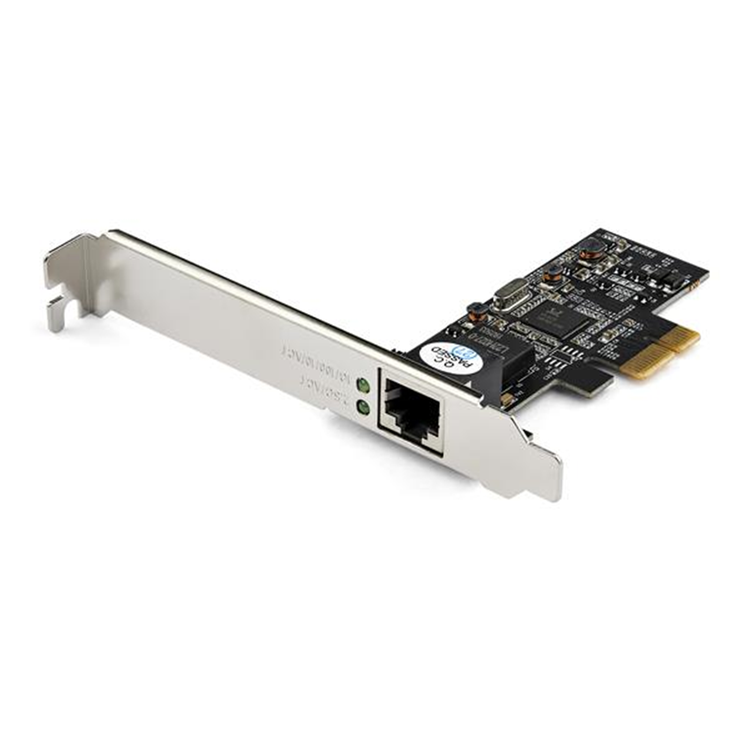

StarTech.com ST2GPEX PCIe NIC Card - 1 Port 2.5GbE 2.5GBASE-T
This single-port 2.5Gbps PCIe network card offers a versatile and low-cost way to deploy 2.5GbE network connectivity. It adds one copper Ethernet port to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds: 2.5 Gbps, 1G, 100Mbps, 10Mbps.
Cost-Effective Multi-Gigabit Ethernet Solution
The 2.5GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 2.5GBASE-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps over your CAT5e cabling (up to 100 m depending on the network configuration).
Optimal Technology for Optimal Performance
The network adapter card adds one Ethernet port to your workstation through a x4 PCIe slot. It features 2.5GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The network card also supports NBASE-T and additional features including 16K Jumbo Frames, Auto-MDIX and Wake-on-LAN (WoL).
Efficient Ethernet
The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE802.3u supports the PCIe 2.0 interface for PC embedded applications. It provides up to a 250% increase in data rate over Gigabit Ethernet and requires no changes to existing cable infrastructure.
HARDWARE
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
Realtek RTL8125
Industry Standards
IEEE 802.3bz (2.5GBASE-T)
IEEE 802.3ab (1000BASE-T)
IEEE 802.3u (100BASE-TX)
IEEE 802.3i (10BASE-TX)
Ports
1
PERFORMANCE
Auto MDIX
Yes
Compatible Networks
2.5G/1G/100Mbps/10Mbps
Full Duplex Support
Yes
Jumbo Frame Support
16K max.
PXE
Yes
CONNECTOR(S)
Connector Type(s)
1 - PCI Express x4 Male
External Ports
1 - RJ-45 Female
SOFTWARE
OS Compatibility
Windows 10
Windows 8
Windows 7
Windows Server 2016
Windows Server 2012 R2
Windows Server 2008 R2
Linux Kernel 2.4.20 - 4.x (LTS versions only)
INDICATORS
LED Indicators
1 - Green LED: 2.5Gbps
1 - Green LED: 1Gbps/100Mbps/10Mbps
ENVIRONMENTAL
Humidity
20% ~ 80% RH
Operating Temperature
5°C to 50°C
Storage Temperature
-20°C to 60°C
PHYSICAL CHARACTERISTICS
Product Height
0.8 in [2 cm]
Product Length
3.1 in [80 mm]
Product Width
4.7 in [12 cm]
Weight of Product
4.9 oz [138 g]
PACKAGING INFORMATION
Package Height
1.2 in [30 mm]
Package Length
5.6 in [14.2 cm]
Package Width
6.7 in [17 cm]
Shipping (Package) Weight
2.1 oz [60 g]
WHAT'S IN THE BOX
Included in Package
1 - Network Card
1 - Low-Profile Bracket
1 - Quick-Start Guide
