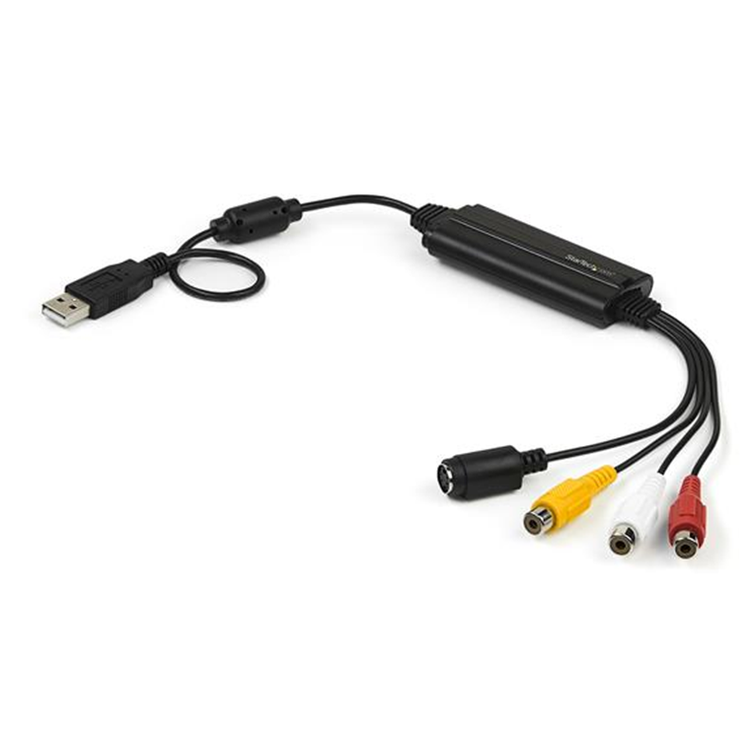

This USB video capture adapter offers an easy to use analog video capture solution, enabling you to convert video (and accompanying audio) from a composite or S Video source to your Windows-based computer.
Broad Capabilities
An easy-to-use device for recording analog video to your PC from external sources, such as a VCR or camcorder, the S Video and composite to USB converter offers the perfect solution for Betamax or VHS video capture, with real-time MPEG-1, MPEG-2, and MPEG-4 encoding.
This analog to digital video adapter is ideal for converting VHS or home movies to digital format, as well as importing videos onto your Windows computer for editing. It also features a snapshot function that enables users to capture still images from their analog video.
Conveniently Compatible
This analog video capture cable delivers seamless analog video capture for your Windows devices. As well, the S Video / composite to USB adapter has TWAIN support, to ensure compatibility with a wide range of systems and software.
Small Form Factor Design
This analog to digital converter cable connects to your PC through USB 2.0 and is compact enough to fit in the palm of your hand, providing a conveniently portable video capture solution that's more than suitable for use with laptops and desktop computers alike.
HARDWARE
Audio
Yes
AV Input
Audio RCA
Composite
S-Video
AV Output
USB
Chipset ID
EM28281
Industry Standards
NTSC, PAL, SECAM
Video Encoding: MPEG 1, MPEG 2, and MPEG 4
DirectShow Compatible
PERFORMANCE
Maximum Analog Resolutions
720x480(NTSC) / 720x576(PAL)
Maximum Data Transfer Rate
480Mbps
CONNECTOR(S)
Connector A
1 - USB Type-A (4 pin) USB 2.0 Male Output
Connector B
1 - Composite Video (1 x RCA) Female Input
1 - Stereo Audio (2 x RCA) Female Input
1 - S-Video (4 pin, Mini-DIN) Female Input
ENVIRONMENTAL
Humidity
5~85% RH Non-condensing
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
Cable Length
10.2 in [260 mm]
Color
Black
Material
Plastic
Product Height
0.6 in [1.4 cm]
Product Length
3.9 in [10 cm]
Product Width
1.4 in [3.5 cm]
Weight of Product
2.5 oz [70 g]
WHAT'S IN THE BOX
Included in Package
1 - USB 2.0 Capture Device
1 - User Guide
1 - Software CD
1 - Driver CD
