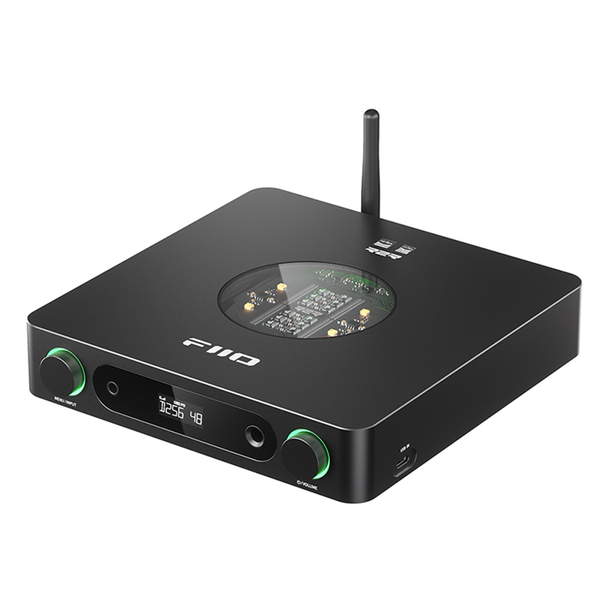

FiiO K13 R2R Balanced Desktop DAC & Headphone Amplifier with Bluetooth - Black
- Model
- K13 R2R
- Color
- Black
- Hardware solution
- SoC: ESP32-S3, DAC: FIIO-developed R2R DAC, USB decoding: XU316, AMP: OPA1642*2+TPA6120A *2
- Working mode
- USB DAC mode/Coaxial decoding mode/Optical decoding mode/Bluetooth receiving mode
- Weight
- About 980g
- Dimensions
- About 210x188x42mm (including feet)
- Volume control
- Knob/Remote control
- Remote control
- Supports IR remote control (only the one included in the accessory)
- Drive-free mode (switch mode)
- Supported
- FIIO Control
- Supported
- Oversampling setting
- OS/NOS
- Bluetooth reception (5.4)
- SBC/AAC/LDAC
- MQA
- Supports MQA full decoding
- PEQ
- Supported
- Display
- 1.1-inch LCD
- Knob indicator light
- Supports customizing color, brightness, supports always-on indication or RGB pulsing
- Max. supported sampling rate (PEQ=OFF)
- USB decoding: 384kHz/32bit; DSD256
- Coaxial decoding: 192kHz/24bit; DSD64
- Optical decoding: 192kHz/24bit
- Screen status indication
- Sampling rate, volume, gain, output mode, etc.
- Firmware upgrade
- MCU firmware: Upgrade through the side USB-C port
- XMOS firmware: Upgrade through the side or rear USB-C port
- Bluetooth firmware: Upgrade through the FIIO Control app
- Adaptive impedance
- PO: 8~350O
- BAL: 8~350O
- Knob
- Menu knob with button*1+Volume knob with button*1
- USB port
- Type-C USB*2 (Data transmission port)
- Digital coaxial input port
- RCA plug
- Digital optical input port
- Optical port
- Balanced line output port
- XLR3 balanced port
- Digital optical output port
- Optical port
- Single-ended line output port
- RCA port*2
- Toggle switch
- Power toggle switch
- Power supply
- AC 100-240V~50/60Hz; DC 12V/=2.5A (either-or)
- Battery capacity
- No battery
- Single-ended power output 1
- L+R=1220mW+1220mW (32O, THD+N<1%, 32O/SE/high gain)
- Single-ended power output 2
- L+R=150mW+150mW (300O, THD+N<1%, 300O/SE/high gain)
- Balanced power output 1
- L+R=2400mW+2400mW (32O, THD+N<1%, 32O/balanced/high gain)
- Balanced power output 2
- L+R=600mW+600mW (300O, THD+N<1%, 300O/balanced/high gain)
- Frequency response
- 20Hz~80kHz: attenuation <2.9dB
- SNR
- 2116dB (A-weighted)
- Noise floor
- PO<5uV (A-weighted, M gain); BAL<8uV (A-weighted, M gain)
- Output impedance
- PO < 0.79 (32o load); BAL <10 (320 load)
- THD+N
- About 0.0173% (1kHz/-6dB @ 320)
